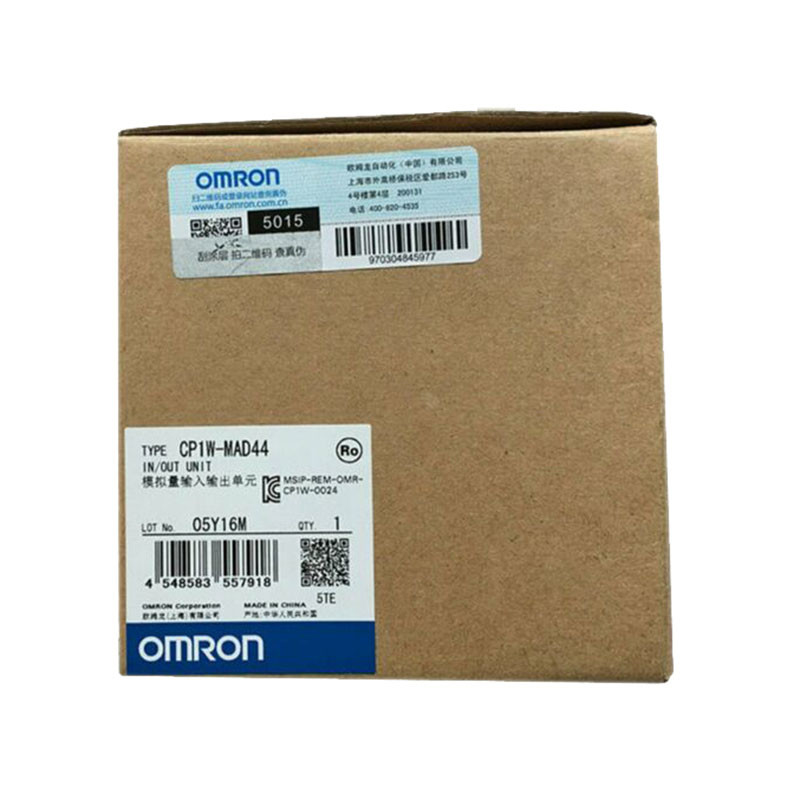

Analog I/O Expansion Unit CP1W-MAD44 24V DC OMRON Module
  • Analog I/O Expansion Unit CP1W-MAD44 24V DC  OMRON Module
  • Analog I/O Expansion Unit CP1W-MAD44 24V DC  OMRON Module
  • Analog I/O Expansion Unit CP1W-MAD44 24V DC  OMRON Module

Analog I/O Expansion Unit CP1W-MAD44 24V DC OMRON Module

Place of Origin China/Japan
Brand Name Omron
Model Number CP1W-MAD44
Product Details
Brand:
Omron
Condition:
New
Lead Time:
Stock
MOQ:
1
Place Of Origin:
China/Japan
Currency:
USD/RMB
Warranty:
12 Month
Shipping Term:
DHL/TNT/UPS/FEDEX Etc
High Light:

Analog Expansion Unit

,

24V Expansion Unit

,

Omron MAD44

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$50-500
Packaging Details
Carton packaging
Delivery Time
3-5working days
Payment Terms
T/T, western union
Supply Ability
10pc/per week
Product Description

OMRON Module Expansion Analog I/O expansion unit CP1W-MAD44

Product Details

  • Omron PLC Analog I/O Unit Module CP1W-MAD44 CP1W-MAD42 CP1W-MAD11
  • Omron PLC Controller Module CP-series
  • We are First Class Omron plc dealer and omron plc distributor in China.
  • We can Supply Omron automation parts,such as Omron PLC,Omron Servo Motor,Omron HMI,Omron VFD and Omron Relay and Omron Sensor and ect.
  • 100% Original and new,In stock by Omron Automation
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
  • Analog I/O Expansion Unit CP1W-MAD44 24V DC  OMRON Module 0

Specification


Input Unit 8 24 VDC Input CP1W-8ED
Output Units















8

Relay CP1W-8ER
      Transistor (sinking) CP1W-8ET
      Transistor (sourcing) CP1W-8ET1
  16 Relay CP1W-16ER
      Transistor (sinking) CP1W-16ET
      Transistor (sourcing) CP1W-16ET1
  32 Relay CP1W-32ER
      Transistor (sinking) CP1W-32ET
      Transistor (sourcing) CP1W-32ET1
I/O Units







12



8

Relay CP1W-20EDR1
      Transistor (sinking) CP1W-20EDT
      Transistor (sourcing) CP1W-20EDT1
  24 16 Relay CP1W-40EDR
      Transistor (sinking) CP1W-40EDT
      Transistor (sourcing) CP1W-40EDT1
Analog Input Unit







4CH



Input range:



0 to 5 V, 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4

to 20 mA.

Resolution: 1/6000 CP1W-AD041
        Resolution: 1/12000 CP1W-AD042
Analog Output Unit





2CH Output range:



1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4 to

20 mA.

Resolution: 1/6000 CP1W-DA021
  4CH   Resolution: 1/6000 CP1W-DA041
        Resolution: 1/12000 CP1W-DA042
Analog I/O Unit





4CH 4CH Input range:0 to 5 V, 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4



to 20 mA. Output range:

1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4 to

20 mA.

Resolution: 1/12000 CP1W-MAD44
  4CH 2CH   Resolution: 1/12000 CP1W-MAD42
  2CH 1CH   Resolution: 1/6000 CP1W-MAD11
Temperature Sensor Unit













2CH Sensor type: Thermocouple (J or K) CP1W-TS001
  4CH Sensor type: Thermocouple (J or K) CP1W-TS002
  2CH Sensor type: Platinum resistance thermometer (Pt100 or JPt100) CP1W-TS101
  4CH Sensor type: Platinum resistance thermometer (Pt100 or JPt100) CP1W-TS102
  4CH Sensor type: Thermocouple (J or K)2 channels can be used as analog input. Input range: 1 to 5 V, 0 to 10 V, 4-20 mA Resolution: 1/12000 CP1W-TS003
