| Place of Origin | China/Japan |
| Brand Name | Omron |
| Model Number | CJ2M-CPU33 |

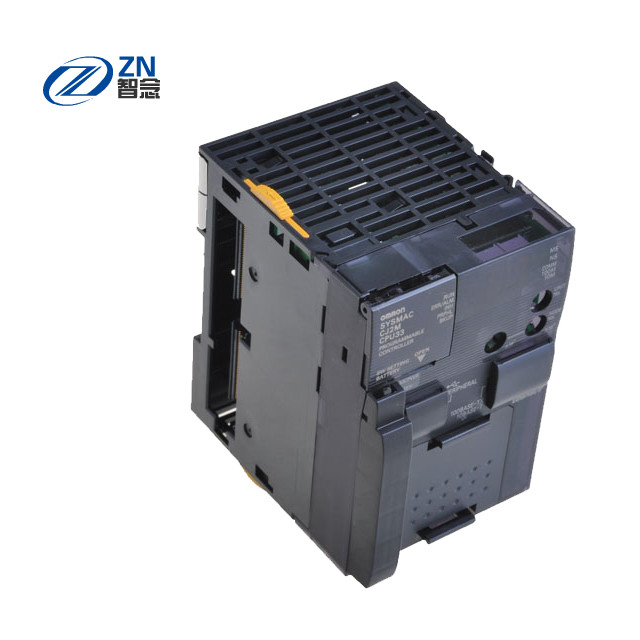

New Original Omron PLC Programmable Controller CPU Module CJ2 Series CJ2M-CPU33
The Omron CJ2M is a programmable logic controller(PLC) with pulse output and Ethernet networking computer interface device. It has 20K steps program capacity and 2,560 built-in I/O points.
This PLC is for use with CJ2M Series. It has various attributes like faster function block calls and execution, faster interrupt handling and less overhead time that significantly improves its execution time.
This module provides high-speed counters, interrupt inputs and pulse train/PWM outputs. It has added execution memory for function blocks that allow structured, object-oriented programming.
It has a provision for adding a serial option module to RS-232C or RS-422A/485 communications ports.
It supports different coding methods like instruction list, ladder logic, structured text and SFC.
USB for plug and play access to the PLC
Pulse I/O modules add position control functions
Increased performance and memory capacity available with or without Ethernet port
User-friendly programming with faster debugging
Faster processor which reduces logic instruction execution time to 40ns
Choice of serial port plug-in
Operating temperature ranges between 0°C and 55°C
| Attribute | Value |
| For Use With | CJ2M Series |
| Manufacturer Series | CJ2M |
| Output Type | Pulse |
| Voltage Category | 5 V dc |
| Network Type | Ethernet |
| Display Included | Yes |
| Communication Port Type | USB 2.0 |
| Program Capacity | 20000 Steps |
| Programming Interface | Computer |
| Programming Language Used | Instruction List, Ladder Logic, SFC, Structured Text |
| Width | 95.4mm |
| Length | 62mm |
| Depth | 84.5mm |
| Dimensions | 62 x 95.4 x 84.5 mm |
| Battery Backup | Yes |
| Minimum Operating Temperature | 0°C |
| Memory | 20K (Program Memory) Steps, 64K (Data Memory) Words |
| Maximum Operating Temperature | +55°C |
| Number of Communication Ports | 1 |
