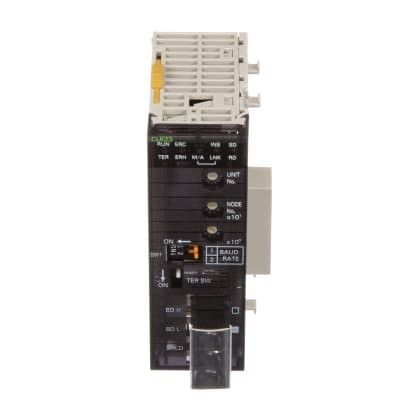

Flag Synchronization Omron PLC CJ1W-CLK23 Programmable Controller
  • Flag Synchronization Omron PLC CJ1W-CLK23 Programmable Controller
  • Flag Synchronization Omron PLC CJ1W-CLK23 Programmable Controller
  • Flag Synchronization Omron PLC CJ1W-CLK23 Programmable Controller
  • Flag Synchronization Omron PLC CJ1W-CLK23 Programmable Controller

Flag Synchronization Omron PLC CJ1W-CLK23 Programmable Controller

Place of Origin China/Japan
Brand Name Omron
Model Number CJ1W-CLK23
Product Details
Service:
One-stop Service
Quality:
New And Original
Lead Time:
In Stock
Warrenty:
One Year
Delivery Detail:
3-5 Working Days After Payment
Port:
Guangdong Shenzhen Dongguan
High Light:

Flag Synchronization Omron Programmable Controller

,

Flag Synchronization Omron PLC CJ1W

,

CJ1W Flag Synchronization Omron PLC CJ1W

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$50-500
Packaging Details
Carton packaging
Payment Terms
T/T, western union
Supply Ability
10pc/per week
Product Description

New PLC CJ1W CJ1W-CLK23 Omron Controller With One Year Warranty

Features

• Large-capacity data links are easily achieved without programming simply by setting data link tables.

• Up to 20,000 *1 send/receive words can be set per node for Units (up to 62,000 words for Boards).

• Data links can be performed with up to 4,000 *2 words per node while ensuring data concurrency.

• User-set data link tables can be changed while data links are operating. *3

• Errors for the entire system can be monitored by using error diagnosis support software and a variety of status flags.



*1. Supported for unit version 1.2 or later.
*2. CJ1W-CLK23 and 3G8F7-CLK[]3 are supported.
*3. Supported for CJ1W-CLK23, 3G8F7-CLK[]3, and models ending with "-V1".

Flag Synchronization Omron PLC CJ1W-CLK23 Programmable Controller 0



Specification



Items Specifications
Model CJ1W-CLK23
3G8F7-CLK23-E
CJ1W-CLK21-V1 *1
3G8F7-CLK21-EV1 *1
Type Wired (shielded twisted-pair cable)
Communications method N:N token-bus method
Code Manchester code
Modulation Baseband code
Synchronization Flag synchronization (conforms to HDLC frames)
Transmission path format Multidrop method (bus type)
Transmission speed The following are the maximum transmission distances depending on the transmission speed.
2 Mbits/s: 500 m
1 Mbits/s: 800 m
500 kbits/s: 1 km
Maximum transmission
distance
Maximum distance between
nodes
Not specified. (Maximum transmission distance must be satisfied for the entire system.)
Medium Specified shielded twist-pair cable
Two signal wires, one shield
Node connection method PLC: Connection to terminal block
Computer: Connection using special (supplied) connector
Maximum number of nodes 32 or 62 nodes *2 *3
Applicable Programming
Devices
CX-Integrator in CX-One, CX-Net in CX-Programmer *3, and Programming Console
Communications functions Data links and message service
Number of data link words Send words per node: 4,000 words max. (CJ1W-CLK[]3), 1,000 words max. (All other Units)
Number of send/receive words per node:
12,000 words max. (Pre-Ver. 1.2)
20,000 words max. (unit Ver. 1.2 or later)
Total number of send words per network: 62,000 words max.
Data link areas PLC: Bit areas (CIO Area, Work Area, Link Area *4), Data Memory (DM), Extended DM Area (EM) Computer:
FinsGateway event memory
Message length 2,012 bytes max. (including the header)
RAS functions Polling node backup function
Self-diagnosis function (hardware checking at startup)
Echoback test and broadcast test (using the FINS command)
Watchdog timer
Error log function
Error control Manchester code check
CRC check (CCITT X16 +X12 +X5 +1)



*1. Discontinuation models in July 2012.
*2. With wired models, the maximum number of nodes is 32 if Repeater Units are not used. A Repeater Unit is required
       when building a network with more than 32 nodes. If a Repeater Unit is used, be sure to use only the following
       Controller Link Units or Boards and set the Wired Network 62 Node Enable Bit in the DM Parameter Area software
       switches at all nodes.
       CS1W-CLK23/CLK21-V1
       CJ1W-CLK23/CLK21-V1
       3G8F7-CLK23-E/CLK21-EV1
*3. CX-Net in CX-Programmer version 3.1 or earlier can be used only in a system with a maximum of 32 nodes (node
       address 1 to 32). If a system is to be used with a maximum of 62 nodes (node addresses 1 to 62), use CX-Net in
       CX-Programmer version 3.2 or higher or the CX-Integrator.
*4. CJ-series PLCs do not have a Link Area, but LR000 to LR199 are automatically converted CIO 1000 to CIO 1199

Controller Link Units

Item Specifications
Model CJ1W-CLK23
CJ1W-CLK21-V1 *
Applicable PLC All CJ-series CPU Units
Number of mountable Units 8 max.
Installation site Install onto a CPU Backplane or Expansion Backplane (classified as a CPU Bus Unit).
Storage location of network parameters and
manually set data link tables
System Bus Unit Area (in the CPU Unit parameter area).
Storage location of routing tables CPU Unit parameter area
Weight 110 g
Current consumption: 5 V in PLC 0.35 A
Related Products

 Flag Synchronization Omron PLC CJ1W-CLK23 Programmable Controller 1
