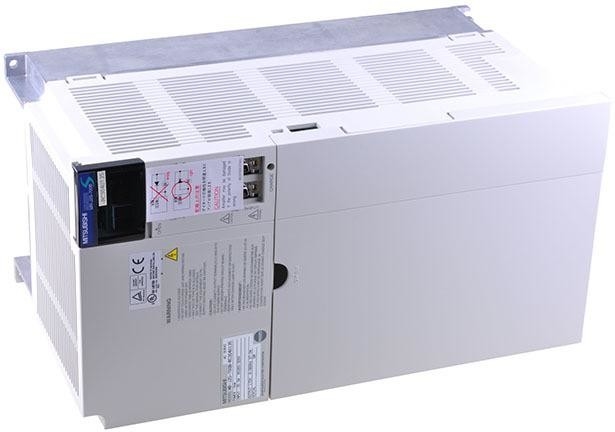

Mitsubishi Servo Drive
>
|
| Place of Origin | China/Japan |
| Brand Name | Mitsubishi |
| Model Number | MR-J2S-700B |
|
MR-J2S |
Servo amplifier type name |
MR-J2S-700B |
|||||||
|
Corresponding servo motor type name |
|
||||||||
|
Servo amplifier |
Control |
Voltage, Frequency |
Single phase AC 200 ~ 230V / 50, 60Hz |
||||||
|
Allowable voltage fluctuation |
Single phase AC170 ~ 253V |
||||||||
|
Allowable frequency variation |
Within ± 5% |
||||||||
|
Input (W) |
50 |
||||||||
|
Main circuit power |
Voltage, Frequency (Note 1) |
Three phase AC 200 ~ 230V / 50, 60Hz (Note 2) |
|||||||
|
Allowable voltage fluctuation |
Three phase AC 200 to 230 V: Three phase AC 170 to 253 V |
||||||||
|
Allowable frequency variation |
Within ± 5% |
||||||||
|
Power supply capacity |
|
||||||||
|
Inrush current |
|
||||||||
|
Control method |
Sinusoidal PWM control · Current control method |
||||||||
|
Dynamic brake |
Built-in (Note 3) |
||||||||
|
Protection function |
Over current shutdown , regeneration overvoltage shutdown, overload shutdown (electronic thermal), servo motor overheat protection, detector fault protection, regeneration fault protection, undervoltage, instantaneous power failure protection, overspeed protection, |
||||||||
|
Maximum command input during position control |
Equivalent to 10Mpps |
||||||||
|
rescue |
Forced cooling , open (IP00) |
||||||||
|
Environment |
Main Temperature |
0 to 55 ° C (not to be frozen), Storage: -20 to 65 ° C (not to be frozen) |
|||||||
|
Weekly humidity |
90% RH or less (No condensation), Conservation: 90% RH or less (No condensation) |
||||||||
|
atmosphere |
Indoors (no direct sunlight), corrosive gas, flammable gas, oil mist, dust free |
||||||||
|
Elevation / Vibration |
Less than 1000m above sea level / 5.9m / s2 or below |
||||||||
|
Weight (kg) |
7.2 |
||||||||
The Mitsubishi MR-J2S-700B (MRJ2S700B) is a 7kW, 200V Melservo MR-J2 servo amplifier SSC NETWORK. The first of the two power supplies in this servo amplifier is the control circuit. The control circuit has a voltage of 200 to 230VAC that functions on 1-phase and its frequency is 50/60Hz. The voltage of the MR-J2S-700B servo amplifier in itself may expand to a similar 1-phase between 200 and 253VAC. The frequency is authorized to waver between +5% and -5%. The other power supply, the main circuit, has exactly the same voltage and frequency and their extended ranges except for the fact that is operates on a 3-phase instead of 1-phase.
The MR-J2S-700B servo amplifier is permitted to have four discrete servo motors, namely those outlined in the following: HC-SFS702(B), HA-LFS601(B), HA-LFS702, and HA-LFS701M(B).
The MR-J2S-700B servo amplifier has four ports. The CN1A and CN1B ports can both participate in the SSCNET. The CN1B participates by linking with other amplifier and/or a terminal connector (this terminal connector is a MR-A-TM). The CN1A port (also linked to the SSCNET) can connect to a motion control module and a positioning control module that are from the Q series or a series. Then, the CN2 port may connect to a servo motor from the specific servo motors attachable to the MR-J2S-700B servo amplifier. The final port, the CN3, may link to a personal computer which possesses an MR Configurator, allowing the MR-J2S-700B servo amplifier to engender the RS-232C communication, permitting the association between the servo amplifier and the personal computer.
Applications:
Conveyors, Food preparation machinery, Printers, Small loaders and unloaders, Small robots and component assembly devices, Small X-Y tables, Small press feeders.
