Mitsubishi HMI Touch Screen
>
|
| Place of Origin | China/Japan |
| Brand Name | Mitsubishi |
| Model Number | GT1030-LBD |

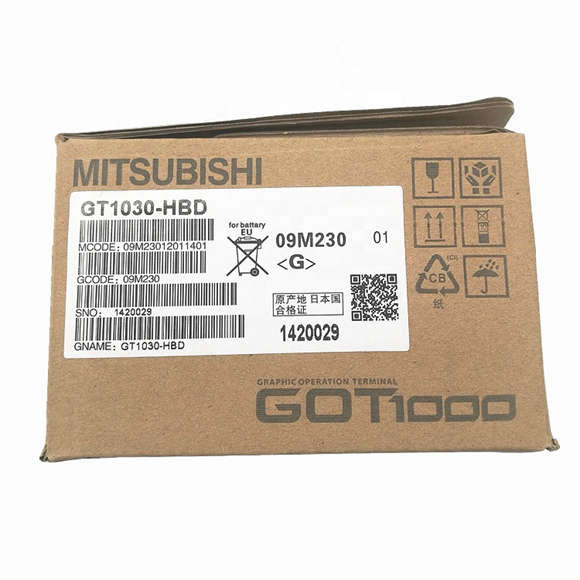

Mitsubishi HMI Touch screen GT1030-LBD/LWD/HBD/ HWD
Product Details
4.5″ [288 96 dots], STN monochrome (black and white) liquid crystal, 3 colors (green/red/orange) LED backlight, built-in battery
24VDC, PLC connection interface: RS-422
4.5″ Mitsubishi HMI Touch screen GT1030-LBD/LWD/HBD/ HWD
We are First Class mitsubishi plc dealer and mitsubishi plc distributor in China.
We can Supply mitsubishi electric automation parts,such as Mitsubishi PLC,Mitsubishi Servo Motor,Mitsubishi HMI,Mitsubishi VFD and So on,
100% Original and new,In stock by Mitsubishi PLC
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs
| Mitsubishi HMI Touch screen | Specifications | ||
| Mitsubishi HMI Touch screen | GT1030-LBD/LWD/HBD/HWD | GT1030-LBD2/LWD2/ HBD2/HWD2 | GT1030-LBL/LWL/HBL/HWL |
| Display section*1 | STN monochrome (white/black) liquid crystal | ||
| Screen size | 4.5″ | ||
| Resolution | 288 96 dots (Horizontal format) | ||
| Display size | W109.42(4.3) H35.98(1.41) [mm](inch) (Horizontal format) | ||
| Display character | 16-dot standard font: 36 characters 6 lines (Horizontal format) 12-dot standard font: 48 characters 8 lines (Horizontal format) | ||
| Display color | Monochrome (white/black) | ||
| Display angle | Left/Right: 30 degrees, Top: 20 degrees, Bottom: 30 degrees (Horizontal format) | ||
| Contrast adjustment | 16-level adjustment | ||
| Intensity adjustment | 8-level adjustment | ||
| Intensity of LCD only | 200 [cd/m2] (in green) | ||
| Life | Approx. 50,000h. (Time for display intensity to become 1/5 at operating ambient temperature of 25) | ||
|
Backlight |
LED with 3 available colors (green, red, orange) (no replacement required),
Backlight status (colors, ON/BLINK/OFF) control, Adjustable screensaver activation time Setting the system information*2 enables PLC to control the backlight status. |
||
| Touch panel
Number of touch keys |
Maximum 50 keys/screen (Matrix resistive film touch panel) | ||
| Key size | Minimum 16 16 dots (per key) | ||
| Simultaneous pressing of two (or more) areas (2-point press) |
Enable |
||
|
Life |
1 million times or more (operating force 0.98N max.) | ||
| Memory
C drive*3 |
Flash memory (Internal), for storing project data (1.5Mbytes or less), OS | ||
| Life (Number of write times) | 100,000 times | ||
| D drive | SRAM (Internal), for storing alarm history, recipe data and time action setting value | ||
| Battery | GT11-50BAT lithium battery | ||
|
Backup target |
Clock data, alarm history, recipe data and time action setting value | ||
|
Life |
Approx. 5 years (Operating ambient temperature of 25) | ||
| PC communication | RS-232 1ch
Transmission speed : 115,200/57,600/38,400/19,200/9,600/4,800bps Connector shape : MINI DIN 6 pins (Female) Application : PC communication (Project data upload/download, OS installation, transparent function) |
||
| Buzzer output (a buzzer that sounds when touch keys are pressed) | Single tone (LONG/SHORT/OFF adjustable) | ||
| Environmental protective structure*5 | Equivalent to IP67 (JEM1030) (front section) (Horizontal format) | ||
