| Place of Origin | China/Japan |
| Brand Name | Omron |
| Model Number | CS1D-PD025 |

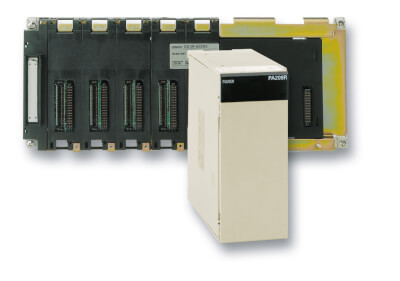

Omron Power Supply Unit CS1D-PD025
Flexible configuration to suit your system requirements
Choose the level of redundancy needed
Supports a variety of network configurations
Easy installation and operation of reliable systems
Easy duplexing of CPU units
Easy duplexing of communications units
Easy duplexing of power supply units
Replace units during power supply
Remove or add units without using a programming device
Automatic recovery to duplex operation
Improve development productivity
CPU unit with a large program capacity of 400K steps for structured and modular programming
Improve development productivity by reusing and sharing programs
Reuse software assets
Units common to all CS Series
Verify errors on physical devices
| Item | CS1D-PD025 |
| Power supply voltage | 24 V DC |
| Operating voltage range | 19.2 to 28.8 V DC |
| Power consumption | 60 W max |
| Inrush current | 30 A max. |
| Power supply output capacity | 5 V DC, 5.3 A (including the CPU Unit power supply) 26 V DC, 1.3 A Total: 40 W |
| Power supply output terminal | Not provided. |
| RUN output *1 | Not provided. |
| Insulation resistance | 20 M min. (at 500 V DC) between DC external and GR terminals |
| Dielectric strength | Between DC external and GR terminals *2: 1,000 V AC 50/60 Hz for 1 min Leakage current: 10 mA max. |
| Noise immunity | 2 kV on power supply line (conforming to IEC61000-4-4) |
| Vibration resistance | 10 to 57 Hz, 0.075-mm amplitude, 57 to 150 Hz, acceleration: 9.8 m/s2 in X, Y, and Z directions for 80 minutes (Time coefficient: 8 minutes × coefficient factor 10 = total time 80 minutes) (When mounted on a DIN Track: 2 to 55 Hz, acceleration of 2.9 m/s2 in X, Y, and Z directions for 20 minutes) (conforming to IEC60068-2-6) |
| Shock resistance | 147 m/s2 3 times each in X, Y, and Z directions (conforming to IEC60068-2-27) |
