CP1H-XA40DT1-D CP1H CP Series CP1H CPU Unit / Lineup

CP1H-XA40DT1-D CP1H CP series CP1H CPU Unit/Lineup

Description

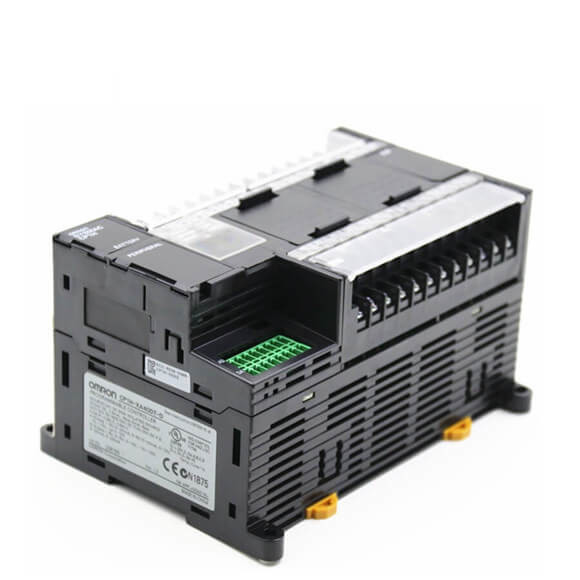

Omron PLC Control Logic CP1H-XA40DT1-D

• Extended Product Type: CP1H

• Product ID: CP1H-XA40DT1-D

• OMRON Type Designation : CP1H

• Description: CONTROL LOGIC 24 IN 16 OUT 24V

Features

• Pulse output for 4 axes. Advanced power for high-precision positioning control.
• High-speed counters. Differential phases for 4 axes.
Easily handles multi-axis control with a single unit.
• Eight interrupt inputs are built in. Faster processing of approximately 500 instructions speeds up the entire system.
• Serial communications. Two ports. Select Option Boards for either RS-232C or RS-485 communications.
• Ethernet Communications. Enabled by using an Option Board. Two ports can be used as an Ethernet port to
perform. Ethernet communications between the CP1H and a host computer.
• Built-in Analog I/O. XA CPU Units provide 4 input words and 2 output words.
• USB Peripheral Port. Another standard feature.
• The structured text (ST) language. Makes math operations even easier.
• Can be used for the CP1W series and CJ series Unit. The extendibility of it is preeminently good.
• LCD displays and settings. Enabled using Option Board.

International Standards

• The standards are abbreviated as follows: U: UL, U1: UL (Class I Division 2 Products for Hazardous Locations), C: CSA, UC: cULus,
UC1: cULus (Class I Division 2 Products for Hazardous Locations), CU: cUL, N: NK, L: Lloyd, KC: KC Registration, and CE: EU Directives.
• Contact your OMRON representative for further details and applicable conditions for these standards.

Specification

• Power supply: DC power supply
• Output method : Transistor output (sourcing)
• Inputs : 24
• Outputs: 16
• Standards : UC1, N, L, CE, KC
