| Place of Origin | China/Japan |
| Brand Name | Omron |
| Model Number | CP1W-TS002 |

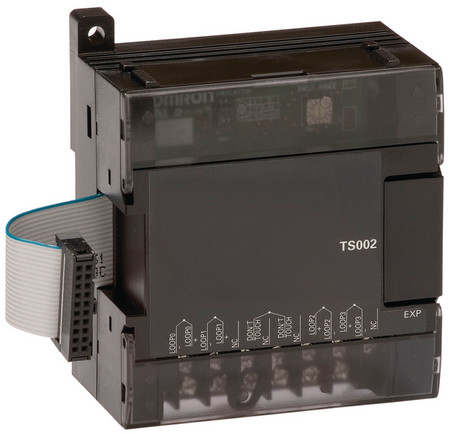

CP1W-TS002 Omron PLC Expansion Module For Sale Online
| Item | CP1W-TS001 | CP1W-TS002 | CP1W-TS101 | CP1W-TS102 |
| Thermocouples | Platinum resistance thermometer | |||
| Temperature sensors | Switchable between K and J, but same type must be used for all inputs. | Switchable between Pt100 and JPt100, but same type must be used for all inputs. | ||
| Number of inputs | 2 | 4 | 2 | 4 |
| Allocated input words | 2 | 4 | 2 | 4 |
| Accuracy | (The larger of ±0.5% of converted value or ±2°C) ±1 digit max. * | (The larger of ±0.5% of converted value or ±1°C) ±1 digit max. | ||
| Conversion time | 250 ms for 2 or 4 input points | |||
| Converted temperature data | 16-bit binary data (4-digit hexadecimal) | |||
| Isolation | Photocouplers between all temperature input signals | |||
| Current consumption | 5 VDC: 40 mA max., 24 VDC: 59 mA max. | 5 VDC: 54 mA max., 24 VDC: 73 mA max. | ||
