| Place of Origin | China |
| Brand Name | Omron |
| Model Number | CP1W-40EDT1 |

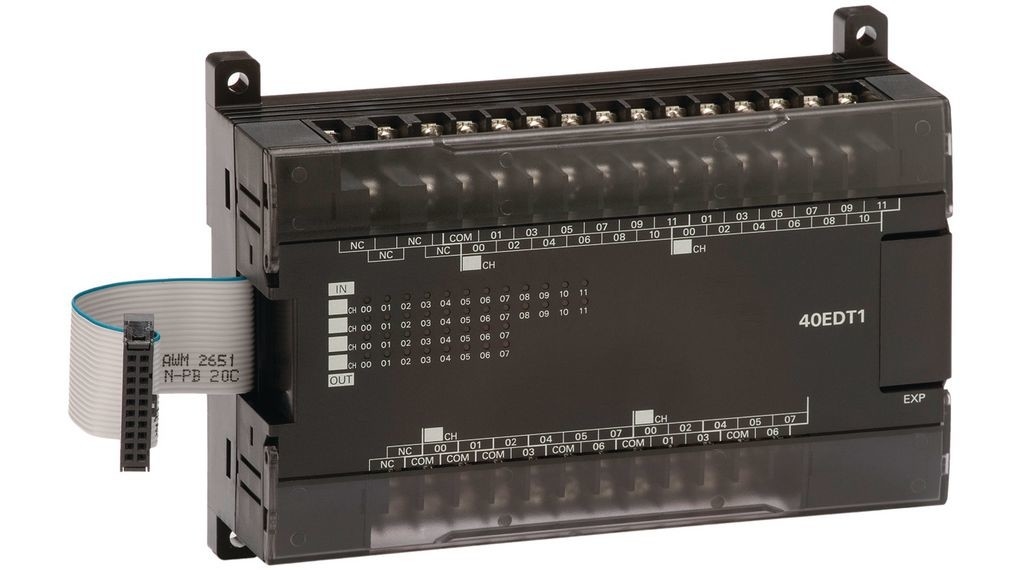

CP1W-40EDT1 Omron 40-Point I/O Module
Omron CP1W-40EDT1 technical specifications, attributes, and parameters.
PLC Expansion Module Input/Output 24 Input, 16 Output 30 V dc 110 x 150 x 50 mm. EXPANSION I/O UNIT, 24I/P, 16O/P, 30VDC; Current Rating:300mA; Product Range:CP1W Series RoHS Compliant: Yes. Expansion I/O Units Of Comprehensive Programmable Interface Controller.
Compliance |
|
|---|---|
| Approvals | CE |
| Ratings | IP20 |
Physical |
|
|---|---|
| Case/Package | Module |
| Mount | DIN Rail |
Dimensions |
|
|---|---|
| Depth | 50 mm |
| Length | 110 mm |
| Width | 150 mm |
Technical |
|
|---|---|
| Number of Inputs | 24 |
| Number of Outputs | 16 |
| Output Type | Digital |
| Termination | Screw |
