| Place of Origin | China/Japan |
| Brand Name | Omron |
| Model Number | CS1D-PA207R |

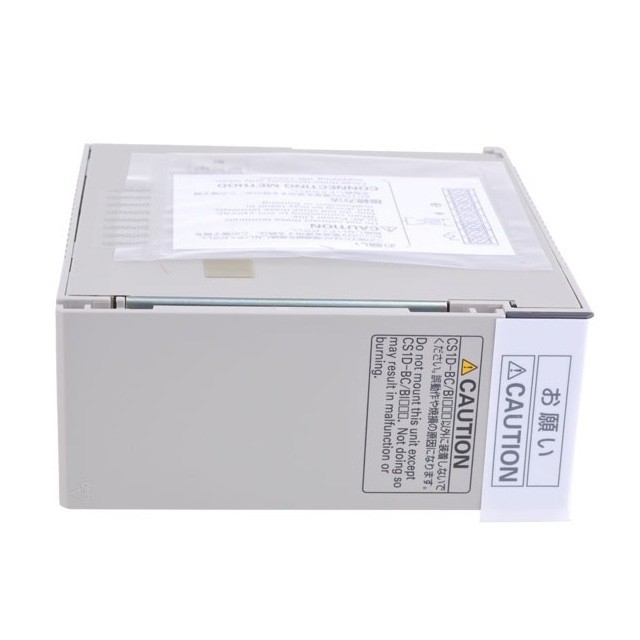

Omron PLC CS1D Power Supply Unit CS1D-PA207R with AC input
| Item Power Supply Unit | Specifications | ||
| CS1D-PA207R | CS1D-PD024 | CS1D-PD025 | |
| Power supply voltage | 100 to 120 V AC/200 to 240 V, 50/60 Hz | 24 V DC | |
| Operating voltage range | 85 to 132 V AC/170 to 264 V | 19.2 to 28.8 V DC | |
| Power consumption | 150 VA max. | 40 W max. | 60 W max. |
| Inrush current | 100 to 120 V AC: 30 A max.
200 to 240 VAC: 40 A max. |
30 A max. | |
| Power supply output capacity | 5 V DC, 7 A (including the CPU Unit power supply) 26 V DC, 1.3 A
Total: 35 W |
5 V DC, 4.3 A (including the CPU Unit power supply)
26 V DC, 0.56 A Total: 28 W |
5 V DC, 5.3 A (including the CPU Unit power supply)
26 V DC, 1.3 A Total: 40 W |
| Power supply output terminal | Not provided. | ||
| RUN output *1 | Contact configuration: SPST-NO Switch capacity:
240 V AC, 2 A (resistive load) 120 V AC, 0.5 A (induction load) 24 V DC, 2 A (resistive load) 24 VDC, 2 A (induction load) |
Not provided. | |
| Insulation resistance | 20 MΩ min. (at 500 V DC) between AC external and GR terminals *2 | 20 MΩ min. (at 500 V DC) between DC external and GR terminals *2 | |
| Dielectric strength | Between AC external and GR terminals *2: 2,300 V AC 50/60 Hz for 1 min
Leakage current: 10 mA max. Between DC external and GR terminals *2: 1,000 V AC 50/60 Hz for 1 min Leakage current: 10 mA max. |
Between DC external and GR terminals *2: 1,000 V AC 50/60 Hz for 1 min
Leakage current: 10 mA max. |
|
| Noise immunity | 2 kV on power supply line (conforming to IEC61000-4-4) | ||
| Vibration resistance | 10 to 57 Hz, 0.075-mm amplitude, 57 to 150 Hz, acceleration: 9.8 m/s2 in X, Y, and Z directions for 80 minutes (Time coefficient: 8 minutes ´ coefficient factor 10 = total time 80 minutes)
(When mounted on a DIN Track: 2 to 55 Hz, acceleration of 2.9 m/s2 in X, Y, and Z directions for 20 minutes) (conforming to IEC60068-2-6) |
||
| Shock resistance | 147 m/s2 3 times each in X, Y, and Z directions (conforming to IEC60068-2-27) | ||
| Ambient operating temperature | 0 to 55°C | ||
| Ambient operating humidity | 10% to 90% (with no condensation) | ||
| Atmosphere | No corrosive gases | ||
| Ambient storage temperature | -20 to 75°C (excluding battery) | ||
| Grounding | Less than 100 Ω | ||
| Enclosure | Mounted in a panel. | ||
| Weight | Each Rack: 6 kg max. | ||
| CPU Rack dimensions (mm) | CS1D-BC052 (5 slots, Duplex CPU System) and CS1D-BI082S (8 slots, Single CPU System): 505 ´ 132 ´ 123 mm (W ´ H ´ D) *2 | ||
