| Place of Origin | China/Japan |
| Brand Name | OMRON |

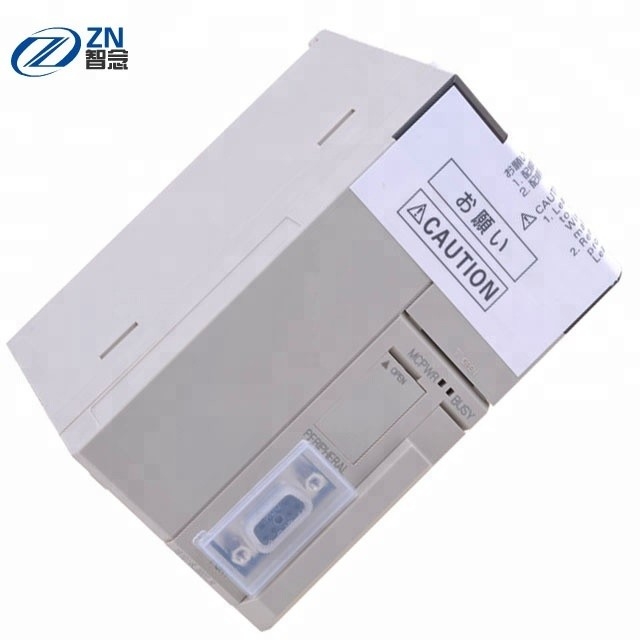

| Model Number | CS1D-CPU65H |
| product name | Specification | Specifications current consumption (A) | model | ||||||
|---|---|---|---|---|---|---|---|---|---|
| I/O points | Program capacity | data memory capacity | programming language | CPU duplication | interrupt function | 5V series | 26V series | ||
|
CS1D CPU module
|
5120 points Additional number of devices: 7 |
400K Step |
832K Word (DM: 32K Word, EM: 32K Word×25 Bank) |
Ladder Diagram, FB, ST, SFC |
Can | not possible | 0.82* |
one | CS1D-CPU68HA |
| 250K Step |
448K Word (DM: 32K Word, EM: 32K Word×13 Bank) |
0.82* |
one | CS1D-CPU67HA | |||||
| 250K Step |
448K Word (DM: 32K Word, EM: 32K Word×13 Bank) |
ladder diagram | 0.82* |
one | CS1D-CPU67H | ||||
| 60K Step |
128K Word (DM: 32K Word, EM: 32K Word×3 Bank) |
0.82* |
one | CS1D-CPU65H | |||||
Note. The interrupt function cannot be used when the CPU duplex, double expansion, or single expansion system is used.
＊When connecting to NT-AL001 type, add 0.15A to 1 port.
| product name | Specification | Current consumption (A) | model | ||
|---|---|---|---|---|---|
| CPU Department | loop control unit | 5V series | 26V series | ||
|
CS1D Program
|
Equivalent to CS1D-CPU67H | [LCB05D] Operation method: function block method Number of function blocks: Maximum 500 Minimum operation period: 100ms PID control method: 2 degrees of freedom PID (with automatic adjustment function) |
1.04 | one | CS1D-CPU67P |
| Equivalent to CS1D-CPU65H | 1.04 | one | CS1D-CPU65P | ||
Note
1. The CS1W-LCB01/05 circuit control board cannot be mounted on the CS1D CPU module CS1D-CPU@@H (for dual CPU system). To use the dual system of the circuit control board, please use the CS1D program CPU module CS1D-CPU@@P type. For details, please refer to the CS series PLC measuring device catalog (catalog number: SBCC-185).
2. When using the CPU duplex system, the interrupt function cannot be used.
| product name | Specification | Current consumption (A) | model | ||||||
|---|---|---|---|---|---|---|---|---|---|
| I/O points | Maximum program capacity | data memory capacity | programming language | CPU duplication | interrupt function | 5V series | 26V series | ||
|
CS1D CPU module
|
5120 points Number of additional units: 7 |
250K Step |
448K Word (DM: 32K Word, EM: 32K Word×13 Bank) |
Ladder Diagram, FB, ST, SFC |
not possible | Can | 0.82* | one | CS1D-CPU67SA |
| 1280 points Number of additional units: 3 |
30K Step |
64K Word (DM: 32K Word, EM: 32K Word×1 Bank) |
0.82* | one | CS1D-CPU44SA | ||||
| 5120 points Number of additional boards: 7 |
250K Step |
448K Word (DM: 32K Word, EM: 32K Word×13 Bank) |
ladder diagram | 0.82* | one | CS1D-CPU67S | |||
| 5120 points Number of additional boards: 7 |
60K Step |
128K Word (DM: 32K Word, EM: 32K Word×3 Bank) |
0.82* | one | CS1D-CPU65S | ||||
| 1280 points Number of additional boards: 3 |
30K Step |
64K Word (DM: 32K Word, EM: 32K Word×1 Bank) |
ladder diagram | 0.78* | one | CS1D-CPU44S | |||
| 960 points Number of additional boards: 2 |
10K Step |
64K Word (DM: 32K Word, EM: 32K Word×1 Bank) |
0.78* | one | CS1D-CPU42S | ||||
