| Place of Origin | China/Japan |
| Brand Name | Omron |

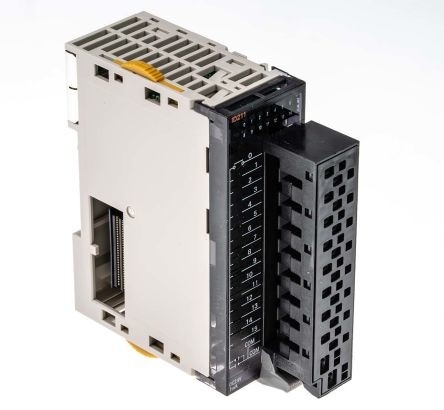

| Model Number | CJ1W-ID211 |
8 to 64 points per unit - input, output or mixed
Digital I/O units serve as the PLC's interface to achieve fast, reliable sequence control. A full range of units, from high-speed DC inputs to relay outputs, let you adapt CJ1 to your needs.
CJ1 units are available with various I/O densities and connection technologies. Up to 16 I/O points can be wired to units with detachable M3 screw terminals or screwless clamp terminals. High-density 32- and 64- point I/O units are equipped with standard 40-pin 'flatcable'-connectors. Prefabricated cables and wiring terminals are available for easy interfacing to high-density I/O units.
|
Points |
Type |
Rated voltage |
Rated current |
Width |
Remarks |
Connection type 1
1. MIL = connector according to MIL-C-83503 (compatible with DIN 41651/IEC 60603-1).
|
Order code |
|---|---|---|---|---|---|---|---|
|
16 |
AC input |
120 VAC |
7 mA |
31 mm |
- |
M3 |
CJ1W-IA111 |
|
8 |
AC input |
240 VAC |
10 mA |
31 mm |
- |
M3 |
CJ1W-IA201 |
|
8 |
DC input |
24 VDC |
10 mA |
31 mm |
- |
M3 |
CJ1W-ID201 |
|
16 |
DC input |
24 VDC |
7 mA |
31 mm |
- |
M3 |
CJ1W-ID211 |
|
16 |
DC input |
24 VDC |
7 mA |
31 mm |
Fast-response (15 µs ON, 90 µs OFF) |
M3 |
CJ1W-ID212 |
|
16 |
DC input |
24 VDC |
7 mA |
31 mm |
Inputs start interrupt tasks in PLC program |
M3 |
CJ1W-INT01 |
|
16 |
DC input |
24 VDC |
7 mA |
31 mm |
Latches pulses down to 50 µs pulse width |
M3 |
CJ1W-IDP01 |
|
32 |
DC input |
24 VDC |
4.1 mA |
20 mm |
- |
1 × Fujitsu |
CJ1W-ID231 |
|
32 |
DC input |
24 VDC |
4.1 mA |
20 mm |
- |
1 × MIL 1
1. MIL = connector according to MIL-C-83503 (compatible with DIN 41651/IEC 60603-1).
(40 pt)
|
CJ1W-ID232 |
|
32 |
DC input |
24 VDC |
4.1 mA |
20 mm |
Fast-response (15 µs ON, 90 µs OFF) |
1 × MIL 1
1. MIL = connector according to MIL-C-83503 (compatible with DIN 41651/IEC 60603-1).
(40 pt)
|
CJ1W-ID233 |
|
64 |
DC input |
24 VDC |
4.1 mA |
31 mm |
- |
2 × Fujitsu |
CJ1W-ID261 |
|
64 |
DC input |
24 VDC |
4.1 mA |
31 mm |
- |
2 × MIL 1
1. MIL = connector according to MIL-C-83503 (compatible with DIN 41651/IEC 60603-1).
(40 pt)
|
CJ1W-ID262 |
|
8 |
Triac output |
250 VAC |
0.6 mA |
31 mm |
- |
M3 |
CJ1W-OA201 |
|
8 |
Relay output |
250 VAC |
2 A |
31 mm |
- |
M3 |
CJ1W-OC201 |
|
16 |
Relay output |
250 VAC |
2 A |
31 mm |
- |
M3 |
CJ1W-OC211 |
