J3 Series Mitsubishi Servo Drive Three Phase 200W MR-J3-200AN
  • J3 Series Mitsubishi Servo Drive Three Phase 200W MR-J3-200AN
  • J3 Series Mitsubishi Servo Drive Three Phase 200W MR-J3-200AN
  • J3 Series Mitsubishi Servo Drive Three Phase 200W MR-J3-200AN
  • J3 Series Mitsubishi Servo Drive Three Phase 200W MR-J3-200AN
  • J3 Series Mitsubishi Servo Drive Three Phase 200W MR-J3-200AN

J3 Series Mitsubishi Servo Drive Three Phase 200W MR-J3-200AN

Place of Origin China/Japan
Brand Name Mitsubishi
Model Number MR-J3-200AN
Product Details
Condition:
100% Original
Warranty:
1 Year
Shipping Term:
TNT DHL FEDEX EMS UPS
Quality:
100%Brand
Payment Term:
T.T WESTUNION
Package:
100% Original Package
Type:
AC Servo Drive
Delivery Time:
Within 3 Working Days
Port:
Guangzhou, Shenzhen, Selectable
High Light:

J3 Mitsubishi Servo Drive

,

Three Phase Mitsubishi Servo Drive

,

MR-J3-200AN

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$300.00 - $1,000.00/Pieces
Packaging Details
Carton packaging
Payment Terms
T/T, western union
Supply Ability
10pc/per week
Product Description

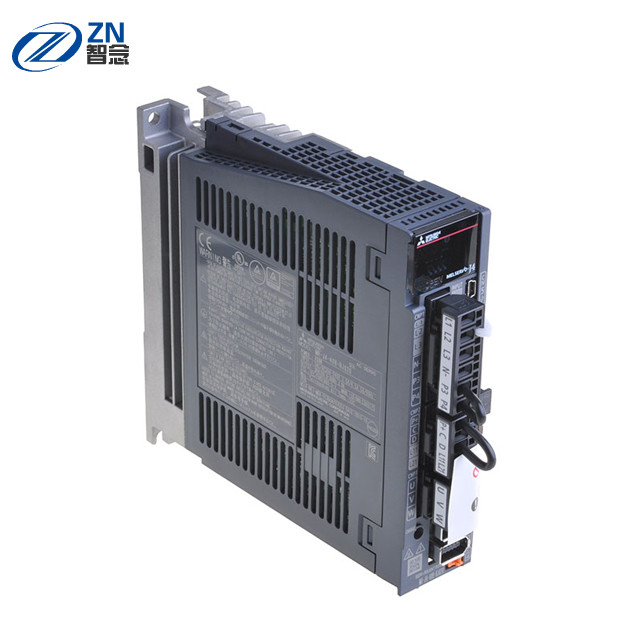

Original New AC Servo Drives MR-J3-200AN Mitsubishi J3 Series Servo Amplifier





Details

Buy online your MITSUBIHI ELECTRIC AC Servo drive reference MITSUBISHI MR-J3-200AN (MRJ3200AN MR-J3-2OOAN) directly on our e-store Cnc-shopping. This axis drive MITSUBISHI MR-J3-200AN power 200W (2kW) is supplied in AC three-phase 200-230V. This Servo Amplifier MITSUBISHI MR-J3-200AN type MR-J3 200V Type belonging to the MELSERVO-J3-Super Series of servo amplifier and compatible with General-Purpose Interface and designed for use with MITSUBISHI Motion controllers of the MELSEC System Q Series. MITSUBISHI MR-J3-200AN uses the following characteristics:



Input: 10.5A 3PH +1PH 200-230V 50/60Hz
Output: 170V 0-360Hz 11A
Power: 200W (2kW)

MITSUBISHI MR-J3-200AN AC Servo amplifier used to control motor series MITSUBISHI HF-UP, HF-LP, HF-SP, HC-RP HF-JP. This MITSUBISHI ELECTRIC MR-J3-200AN servo drive unit, refurbished and tested is ready to replace your defective drive and comes with a warranty.

This Instruction Manual and the MELSERVO Servo Motor Instruction Manual (Vol.2) are required if you use the General-Purpose AC servo MR-J3-A for the first time.

Connect your MITSUBISHI MR-J3BAT Battery on the MR-J3 CN4 Connector (front of the MELSERVO MR-J3 Drive). It applies only if you have Absolute position encoder/detection system in the position control mode.


Servo Amplifier Model MR-J3- 10A 20A 40A 60A 70A 100A 200AN 350A 500A 700A 11KA 15KA 22KA 10A1 20A1 40A1
Mitsubishi Servo Drive MR-J3 S S S S S S S S S S S S S S



Voltage/Frequency (*1, *2)

3-phase 200 to 230VAC 50/60Hz or1-phase 200 to 230VAC 50/60Hz (*10) 3-phase 200 to 230VAC 50/60Hz 1-phase 100 to 120VAC 50/60Hz
Permissible Voltage Fluctuation For 3-phase 200 to 230VAC: 3-phase 170 to 253VACFor 1-phase 200 to 230VAC: 1-phase 170 to 253VAC 3-phase 170 to 253VAC 1-phase 85 to 132VAC
Permissible Frequency Fluctuation ±5% maximum



Voltage/Frequency

1-phase 200 to 230VAC 50/60Hz (*10) 1-phase 200 to 230VAC 50/60Hz 1-phase 100 to 120VAC 50/60Hz
Permissible Voltage Fluctuation 1-phase 170 to 253VAC 1-phase 85 to 132VAC
Permissible Frequency Fluctuation ±5% maximum
Power Consumption (W) 30 45 30
Interface Power Supply 24VDC ±10% (required current capacity: 300mA (*7))



Built-in Regenerative Resistor

10 10 10 20 20 100 100 130 170 10 10
External Regenerative Resistor (Standard Accessory) (*5, *6) 500(800) 850(1300) 850(1300)
Control System Sine-wave PWM control/current control system
Dynamic Brake Built-in (*8, *13) External option Built-in (*8, *13)
Safety Features Overcurrent shutdown, regeneration overvoltage shutdown, overload shutdown (electronic thermal), Servo Motor overheat protection, encoder fault protection, regeneration fault protection, undervoltage/sudden power outage protection, overspeed protection, excess error protection



Maximum Input Pulse Frequency

1Mpps (when using differential receiver), 200kpps (when using open collector), (4Mpps) (*11)
Positioning Feedback Pulse Resolution per encoder/Servo Motor rotation: 262144 p/rev
Command Pulse Multiple Electronic gear A/B multiple, A: 1 to 1048576, B: 1 to 1048576, 1/10 < A/B < 2000
Positioning Complete Width Setting 0 to ±10000 pulses (command pulse unit)
Excess Error ±3 rotations
Torque Limit Set by parameters or external analog input (0 to +10VDC/maximum torque)
Speed Control Mode



Speed Control Range

Analog speed command 1:2000, internal speed command 1:5000
Analog Speed Command Input 0 to ±10VDC/rated speed (possible to change the speed in 10V using the parameter No. PC12.) (*12)
Speed Fluctuation Rate ±0.01% maximum (load fluctuation 0 to 100%) 0% (power fluctuation ±10%) ±0.2% maximum (ambient temperature 25°C±10°C (59°F to 95°F)), when using analog speed command
Torque Limit Set by parameters or external analog input (0 to +10VDC/maximum torque) (*12)
Torque Control Mode



Analog Torque Command Input

0 to ±8VDC/maximum torque (input impedance 10 to 12kΩ) (*12)
Speed Limit Set by parameters or external analog input (0 to ±10VDC/rated speed)
Structure Self-cooling open (IP00) Fan cooling open (IP00) Self-cooling open (IP00)
Ambient Temperature (*6, *9) 0 to 55°C (32 to 131°F) (non-freezing), storage: -20 to 65°C (-4 to 149°F) (non-freezing)
Ambient Humidity 90% RH maximum (non-condensing), storage: 90% RH maximum (non-condensing)
Atmosphere Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust
Elevation 1000m or less above sea level
Vibration 5.9m/s² maximum
Weight kg (lb) 0.8(1.8) 0.8(1.8) 1.0(2.2) 1.0(2.2) 1.4(3.1) 1.4(3.1) 2.1(4.6) 2.3(5.1) 4.6(10)
