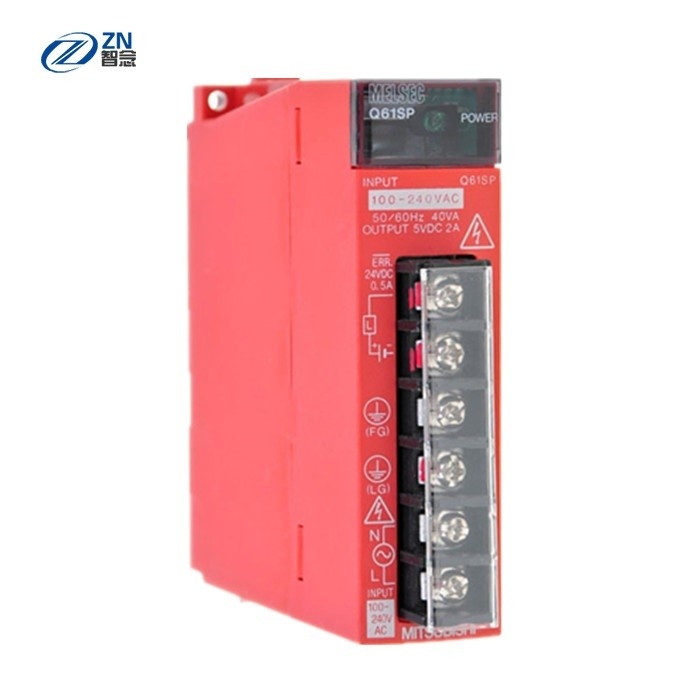

MELSEC-Q series slim type power supply unit.
Features
・ It supplies power to various units such as CPU unit and input/output unit (It must be mounted on a slim type base)
・ External Dimensions: (H) 98 mm, (W) 27.4 mm, (D) 104 mm
・ Weight: 0.18 kg
Applications
・ Power supply to the unit
| Base mounting position | Slim type power supply unit mounting slot | |
| Compatible base unit | Q3 □ SB | |
| Input power supply voltage | AC100-240V (-15% -+ 10%) | |
| Input frequency | 50 / 60Hz ± 5% | |
| Input voltage distortion | Within 5% | |
| Input maximum apparent power | 40VA | |
| Inrush current | 40A within 8ms | |
| Rated output current | DC5V | 2A |
| Overcurrent protection | DC5V | 2.2A or higher |
| Overvoltage protection | DC5V | 5.5-6.5V |
| efficiency | over 70 | |
| Allowable momentary power failure time | Within 20ms | |
| Withstand voltage | Between input / LG batch and output / FG batch AC2300V / 1min (elevation 0-2000m) | |
| Insulation resistance | Input / LG batch and output / FG batch, input batch and LG, output batch and FG: DC500V insulation resistance tester 10MΩ or more | |
| Operation display | LED display (normal: green, abnormal: off) | |
| fuse | Built-in (user exchange not possible) | |
| External wiring connection method | Screw terminal block (M3.5 screw) | |
| External dimensions | Height (H) | 98mm |
| Width (W) | 27.4mm | |
| Depth (D) | 104mm | |
| mass | 0.18kg | |
