Mitsubishi PLC Module
>
|
|
| Place of Origin | China/Japan |
| Brand Name | MITSUBISHI |
| Model Number | FX2N-32DP-IF |

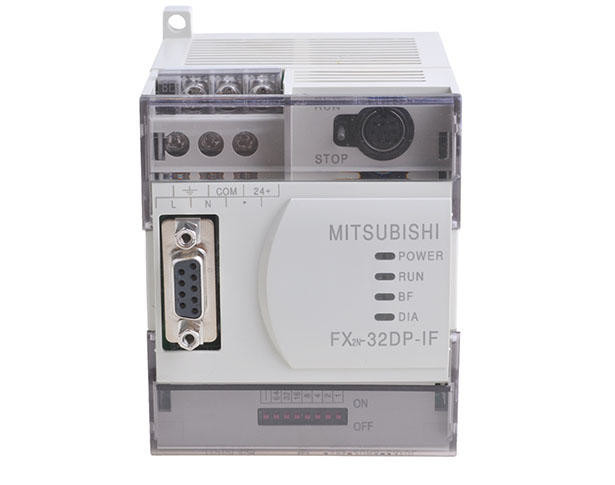

Mitsubishi PLC Module FX2N-32DP-IF Interface Unite
The remote I/O statiom FX2N-32IF forms an extremely compact communication unit and provides a connectio of I/O modules with up to 256 I/O points and/or up to 8 special function modules as an alternative.
It features an entire electrical isolation of the Profibus DP connector and of the sensor/actuator circuits.
FX2N-32DP-IF include a 240V power supply unit and a 24V service voltage terminal, e.g. for analog modules. The FX2N-32DP-IF-D is supplied with 24V DC.
Profibus data such as the baud rate or I/O data can be monitored directly with the programming software or on the hand-held programming units FX-10P/FX20P/FX-30P. This facilitates an easy error diagnosis directly on the remonte I/O station.
Power supply 24 V DC
Interface connectors:
9-pin D-SUB for Profibus DP
8-pin Min Din for PC or programming unit FX-10P/FX-20P/FX-30P
Related I/O points: 256
| SERIES | MELSEC-F SERIES |
| TYPE | LOCAL STATION |
| NETWORK INTERFACE | PROFIBUS-DP |
| WIDTH (MM) | 75 |
|---|---|
| HEIGHT (MM) | 98 |
| DEPTH (MM) | 87 |
| WEIGHT (KG) | 0,4 |
| EUROPEAN ORDER CODE | 142763 |
|---|---|
| GLOBAL ORDER CODE | 09M180 |
| PRODUCT HIERARCHY | IAD203 |
|---|---|
| CLASS DESCRIPTION | FA-COM PLC: Network Module |
| EXTERNAL MATERIAL GROUP | Standard Material |
| LOGISTIC CLASS | B |
|---|
| GROSS WEIGHT | 0.52 KG |
|---|---|
| VOLUME | 1.54 CDM |
| LENGTH | 14 CM |
| WIDTH | 11 CM |
| HEIGHT | 10 CM |
| COMMODITY CODE | 85176200 |
|---|---|
| COUNTRY OF ORIGIN | JP |
| PREDECESSOR | 145401 |
|---|
| SELLING STATUS | Standard |
|---|
| ROHS COMPLIANCE | COMPLIANT |
|---|---|
| REACH LIMIT EXCEEDED | NO |
| DANGEROUS GOODS REGULATIONS | NO |
