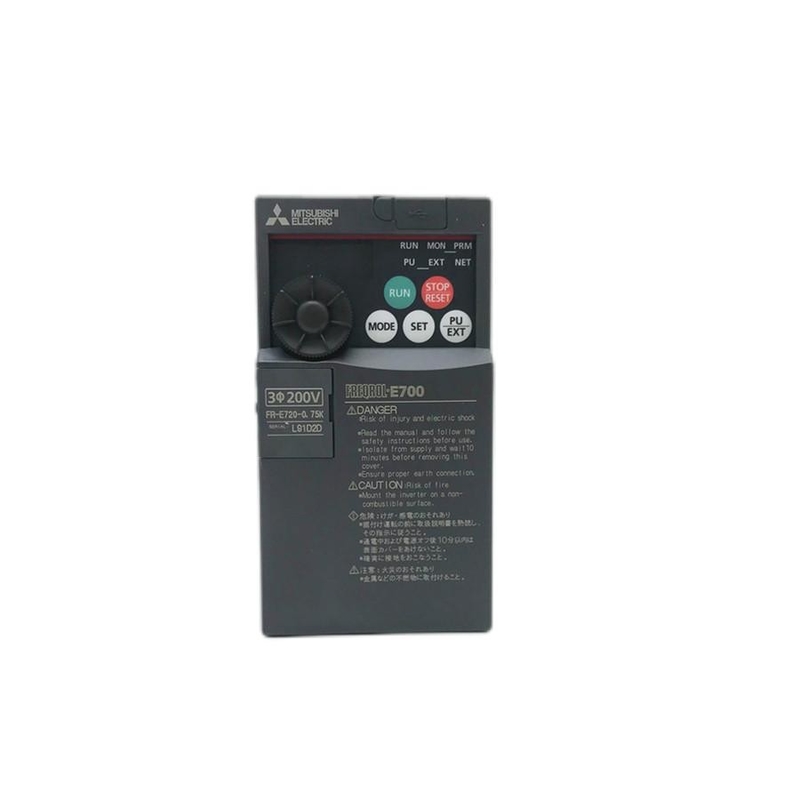

Mitsubishi VFDs Inverter FR-E720

FR-E720 0.75kW to 15kW

Type FR-E720-oK(-C) *7

0.75

1.5

2.2

3.7

5.5

7.5

15

Applicable motor capacity (kW) *1

0.75

1.5

2.2

3.7

5.5

7.5

15

Rated capacity (kVA) *2

2.0

3.2

4.4

7.0

9.5

13.1

23.9

Rated current (A) *6

5(4.1)

8(7)

11(10)

17.5(16.5)

24(23)

33(31)

60(57)

Overload current rating *3

150% 60s, 200% 3s (inverse time characteristics)

Voltage *4

Three-phase 200 to 240V

Rated inputAC voltage/frequency

Three-phase 200 to 240V 50Hz/60Hz

Permissible AC voltagefluctuation

170 to 264V 50Hz/60Hz

Permissible frequency fluctuation

±5%

Power supply capacity (kVA) *5

2.5

4.5

5.5

9

12

17

28

Protective structure (JEM1030)

Enclosed type (IP20). IP40 for totally enclosed structure series.

Cooling system

Self-cooling

Forced air cooling

Approximate mass (kg)

1.0

1.4

1.4

1.7

4.3

4.3

9.0
