| Place of Origin | China/Japan |
| Brand Name | Omron |

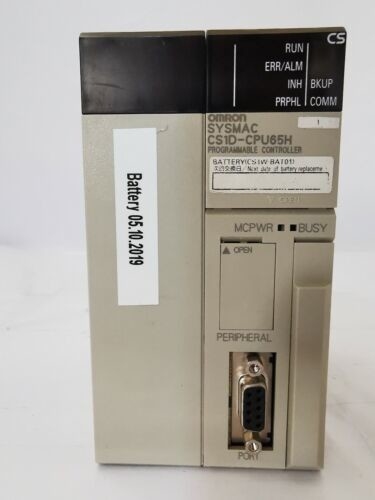

| Model Number | CS1D-CPU65H |
|
TYPE |
DESCRIPTION |
|---|---|
|
Category |
|
|
Mfr |
Omron Automation and Safety |
|
Series |
|
|
Product Status |
Active |
|
Number of Inputs and Type |
- |
|
Number of Outputs and Type |
- |
|
Expandable |
68 Modules (7 Racks) Max |
|
Voltage - Supply |
- |
|
Display Type |
- |
|
Number of Characters Per Row |
- |
|
Communications |
RS-232C, USB |
|
Memory Size |
128K Words |
|
Mounting Type |
Backplane |
|
Features |
- |
|
Operating Temperature |
- |
|
Ingress Protection |
- |
|
Software |
CX-Programmer |
|
Approval Agency |
CE, cULus, Lloyd, NK |
|
Weight |
0.772 lb (350.17 g) |
|
Base Product Number |
CS1 Programmable Logic Controllers
CS1 is Omron's most extensive PLC family, with a maximum capacity of 5120 'local' digital I/Os. Up to 7 expansion racks can be connected to a single CPU rack, bringing the maximum number of I/O units to 80. Any combination from over 200 models of digital I/Os, analog I/Os, control units and communication units can be mounted in any order. The huge instruction set and function block library allow you to write very compact programs, using any mix of IEC 61131-3 Structured Text and ladder language.
Fast CPUs with large program capacity
Extensive choice of special function units for motion- and temperature control, and special communication processing
IEC 61131-3 Structured Text programming, extensive function block libraries
CompactFlash memory card slot for data storage and program exchange
Easy migration from C200H systems; re-use your existing I/Os
CS1 provides both standardised open networks interfaces, and cost-efficient high-speed proprietary network links. Datalinks between PLCs, or to higher-level information systems can be made using Serial or Ethernet links, or the easy-to-use Controller Link network.
Omron supports the 2 major field networks, DeviceNet and PROFIBUS-DP. For high-speed field I/O, Omron's own CompoBus/S offers an unsurpassed ease of installation. Fully user-configurable Serial and CAN-based communication can be used to emulate a variety of application-specific protocols.
From simple position measurement to multi-axis synchronised motion control, CS1 offers a full range of units:
Counter units gather position information from SSI- or incremental encoders. Actual positions are compared with internally stored target values.
Position control Units are used for point-to-point positioning with servo drives or stepper motors. Target data and acceleration/deceleration curves can be adjusted on-the-fly.
Position- and motion control Units equipped with MECHATROLINK-II interface can control multiple drives through a single high-speed link. Message routing through mutliple communication layers allows the attached drives to be configured from any point in the control network.
