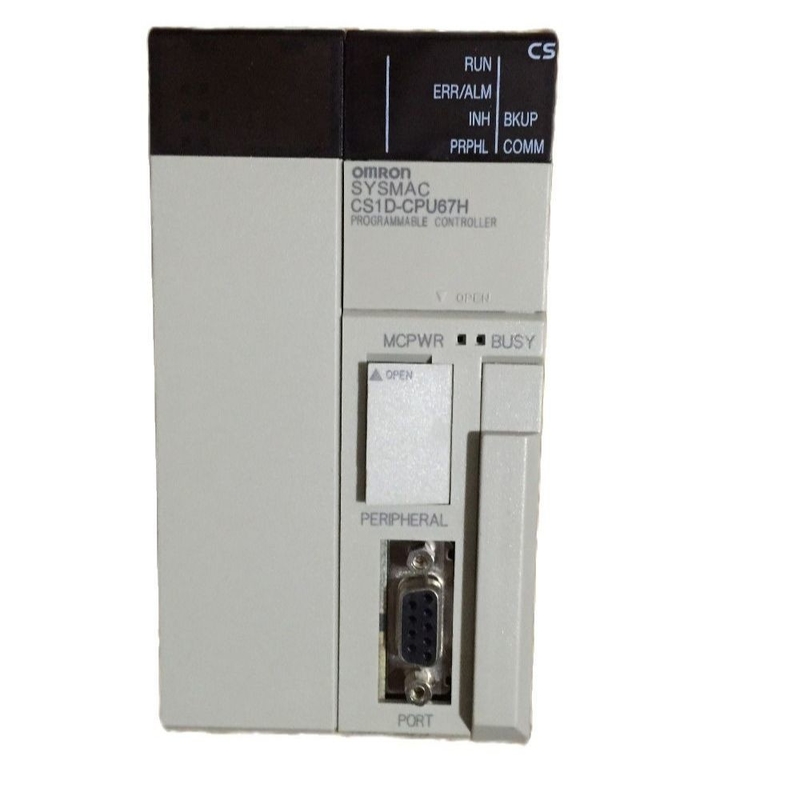

CS1D-CPU67H Omron Programmable Logic Controllers (PLC) For Duplex / Redundant / CPU System
  • CS1D-CPU67H Omron Programmable Logic Controllers (PLC) For Duplex / Redundant / CPU System
  • CS1D-CPU67H Omron Programmable Logic Controllers (PLC) For Duplex / Redundant / CPU System
  • CS1D-CPU67H Omron Programmable Logic Controllers (PLC) For Duplex / Redundant / CPU System

CS1D-CPU67H Omron Programmable Logic Controllers (PLC) For Duplex / Redundant / CPU System

Place of Origin China/Japan
Brand Name Omron
Model Number CS1D-CPU67H
Product Details
Warranty:
12 Months
Lead Time:
1-3 Days
Condition:
100% New And Original
Shipping Term:
FEDEX | UPS | DHL | ARAMEX
MOQ:
1 Piece/Pieces
Payment:
Western Union Or T/T Transfer
Main Function:
CPU Unit
Application:
Industrial Application,Industrial Ect
Series:
CS1D Series
High Light:

CS1D-CPU67H Omron

,

CPU System Omron PLC

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$50-500
Packaging Details
Carton packaging
Payment Terms
T/T, western union
Supply Ability
10pc/per week
Product Description

CS1D-CPU67H Omron - Programmable Logic Controllers (PLC) For Duplex/Redundant/CPU System

Product Specification

Max. Digital I/O points

Program capacity

Data memory capacity

Logic execution speed

Max. I/O units

Additional functions

Order code

5120 250K steps 448K words 20 ns 80 - CS1H-CPU67H
71 Supports duplex power supply and I/O hot-swapping CS1D-CPU67S
68 CPU for full dual-redundancy CS1D-CPU67H
CPU for full dual-redundancy, with loop control board CS1D-CPU67P
120K steps 256K words 80 - CS1H-CPU66H
60K steps 128K words 80 - CS1H-CPU65H
71 Supports duplex power supply and I/O hot-swapping CS1D-CPU65S
68 CPU for full dual-redundancy CS1D-CPU65H
CPU for full dual-redundancy, with loop control board CS1D-CPU65P
30K steps 64K words 80 - CS1H-CPU64H
20K steps - CS1H-CPU63H
60K steps 40 ns - CS1G-CPU45H
1280 30K steps 40 - CS1G-CPU44H
35 Supports duplex power supply and I/O hot-swapping CS1D-CPU44S
960 20K steps 30 - CS1G-CPU43H
10K steps - CS1G-CPU42H
26 Supports duplex power supply and I/O hot-swapping CS1D-CPU42S

CS1 Programmable Logic Controllers

Our CS1 and CS1D duplex controllers deliver superior control performance, flexible communications and connectivity, powerful information management, extensive maintenance functionality . all in an enhanced design and development environment. These controllers can integrate logic, motion, drives and process in one system

From basic analogue I/O to process control

CS1 offers a wide choice of analogue input units, fit for any application, from low-speed, multi-channel temperature measurement to high-speed, high-accuracy data acquisition. Analogue outputs can be used for accurate control or external indication.

Advanced units with built-in scaling, filtering and alarm functions reduce the need for complex PLC programming. High-accuracy process I/O units support an extensive range of sensors, for fast and accurate data acquisition. All Process and temperature I/O units provide isolation between all individual channels.

The dual-redundant PLC system for never-fail control

CS1D adds a number of dual-redundancy options to the well-proven CS1 architecture to ensure around-the-clock operation without minimal downtime. Duplex CPUs, with or without loop control functions, are continuously cross-checked for errors, without the need for special programs to be written by the user. An even simpler way to increase system availability is to use dual power supply units. Hot swapping of CPUs, power supplies and I/O units allow system maintenance with little or no process interruption.

  • Choose the level of redundancy needed; CPU, power supply, communication
  • No special programming or software tools required
  • Hot-swapping of I/O units
  • All standard CS1 I/O units can be mounted
  • Ideal for control of power generators, water supply utilities, 24/7 production.

CS1D-CPU67H Omron Programmable Logic Controllers (PLC) For Duplex / Redundant / CPU System 0

CS1D-CPU67H Omron Programmable Logic Controllers (PLC) For Duplex / Redundant / CPU System 1
