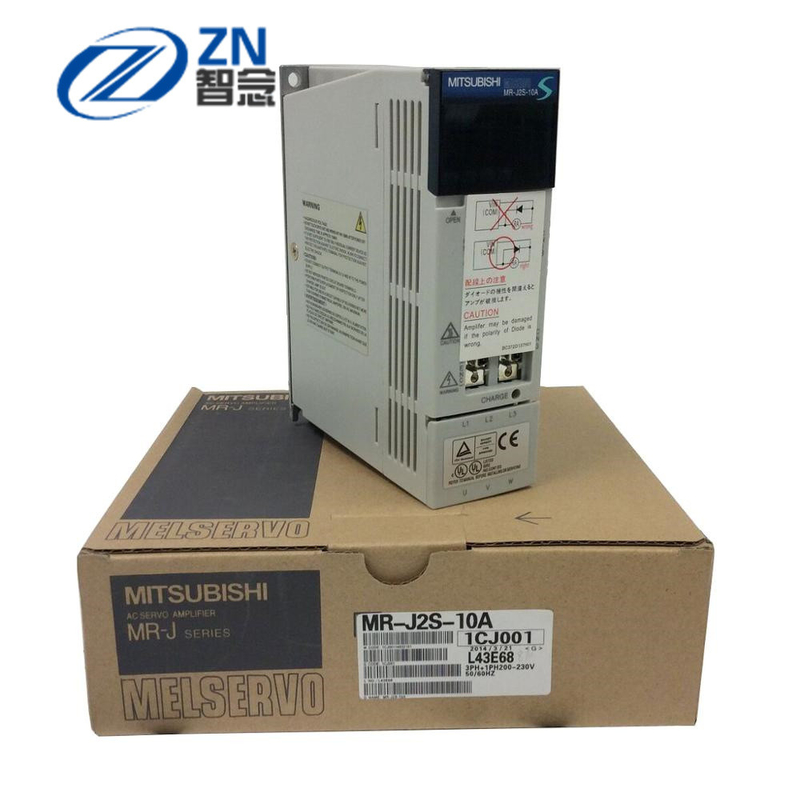

MR-J2S-10A Servo Drive Mitsubishi Electric 1 Year Warranty 100W

MR-J2S-10A Servo Drive Mitsubishi Electric 1 Year Warranty 100W

• Mitsubishi Servo Drive MR-J2S 100W MR-J2S-10A
• Theinclusion of a high-resolution encoder ensures high performance and stability at low
• Motor sizes are the same as previous products and wiring is compatible
• The application of a high-performance CPU has enhanced response significantly. Speed loop frequency response is im- proved to 550Hz or
• The MR-J2-Super series are the best choice for use in high-speed positioning applications.
• The absolute positioning method, which does not require home position return, can be used by adding a battery to the servo amplifier. The servo motor does not need to be replaced

• Specification

• Product No	MR-J2S-10A
  Product Type	Servo Amplifier
  Power Supply (Voltage/frequency)	3-phase 200-230VAC, 50/60Hz; 1-phase 230VAC, 50/60Hz
  Power Supply (Permissible voltage fluctuation)	3-phase 200-230VAC, 170-253VAC
  Power Supply (Permissible frequency fluctuation)	±5%
  Control System	Sinusoidal PWM control/current control system
  Dynamic Brake	Built-in
  Speed Frequency Response	550 Hz or more
  Protective Functions	Overcurrent shutdown, regeneration overvoltage shutdown, overload shutdown (electronic thermal), servomotor overheat protection, encoder fault protection, regeneration fault protection, under voltage/sudden power outage protection ,overspeed protection, excess error protection
  Maximum Input Pulse Frequency (Position control mode)	500 kpps- when using differential receiver, 200 kpps- when using open collector
  Positioning Feedback Pulse (Position control mode)	Resolution per encoder/servo motor rotation (131072 pulse/revolution)
  Command Pulse Multiple (Position control mode)	1-65535 or 131072
  Positioning Complete Width Setting (Position control mode)	0 - ±10VDC
  Excess Error (Position control mode)	±10 rotations
  Torque Limit Input (Position control mode)	Set by parameters or external analog input (0-±10VDC / maximum torque)
  Speed Control Range (Speed control mode)	Analog speed command 1:2000, internal speed command 1:5000
  Analog Speed Command Input (Speed control mode)	0-±10VDC / rated speed

•
•
