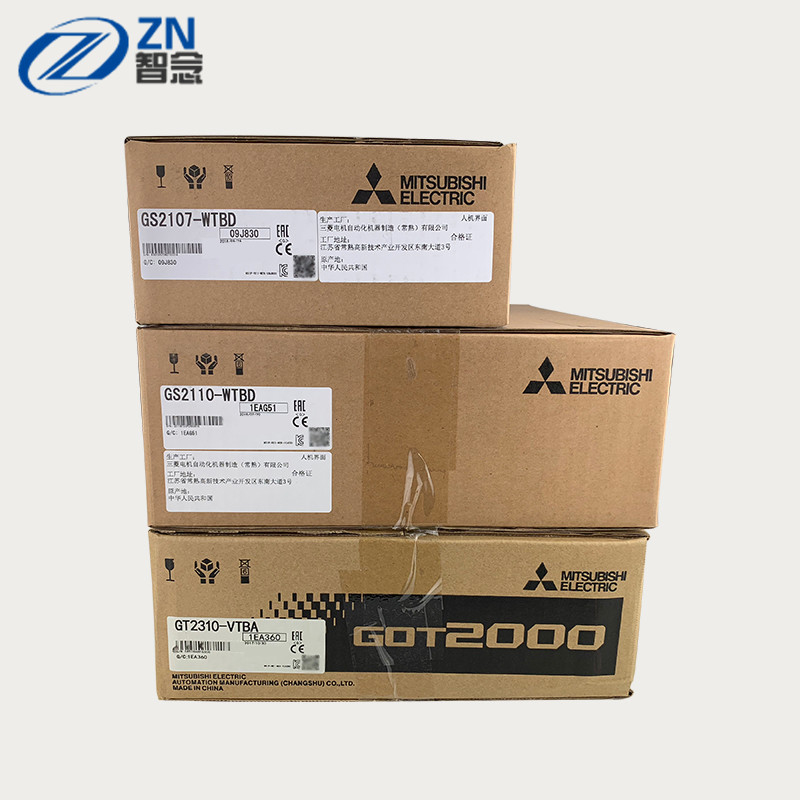

GS2110-WTBD-N Mitsubishi HMI New Multi Drop Connection Unit
  • GS2110-WTBD-N Mitsubishi HMI New Multi Drop Connection Unit
  • GS2110-WTBD-N Mitsubishi HMI New Multi Drop Connection Unit
  • GS2110-WTBD-N Mitsubishi HMI New Multi Drop Connection Unit

GS2110-WTBD-N Mitsubishi HMI New Multi Drop Connection Unit

Place of Origin China/Japan
Brand Name Mitsubishi
Model Number GS2110-WTBD-N
Product Details
Condition:
100% Original
Type:
Human Machine Interface
Delivery Time:
Within 3 Working Days
Package:
100% Original Package
Model:
GS2110-WTBD-N
Brand:
Mitsubishi
Port:
Guangdong Shenzhen Dongguan
Warranty:
365 Days
Application:
Electronic Equipment
High Light:

GS2110-WTBD-N

,

Mitsubishi HMI Multi Drop Connection Unit

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$120-$800
Packaging Details
Carton packaging
Payment Terms
T/T, western union
Supply Ability
10pc/per week
Product Description

GS2110-WTBD-N Mitsubishi HMI New Multi-Drop Connection Unit



Basic information

Product main image

Model name GS2110-WTBD-N
Overview 10” Wide, WVGA, TFT color LCD 65536 colors, Panel color: Black, Power supply voltage: 24 V DC
Conformance standard UL cUL CE(EMC) CE(RoHS) KC


GOT SIMPLE Series

Simple, high functioning, and user friendly model for a reliable system.

GOT SIMPLE collects the data from multiple devices!
GOT SIMPLE manages the data of all connected industrial devices. The data can be collected at an arbitrary timing and can be used for data analysis and feedback.

Use GOT SIMPLE to control industrial devices!

[Multi-channel function]
Up to 2 industrial devices can be controlled with one GOT SIMPLE. The data can be easily transferred between devices with just simple settings in GT Works3.

Sequence programs and parameters can easily be modified at the worksite

[FA transparent function]
The GOT SIMPLE acts as a transparent gateway to enable programming, start up, and adjustment of Mitsubishi Electric industrial devices. Users do not have to bother with changing cable connections.



Basic specifications

Model
Product name
Series name
Model name
GS2110-WTBD-N
GS21 model
GOT SIMPLE
GS21



Performance specifications

Display section*1 Display device
Screen size
Resolution
Display size
Number of displayed characters
Display color
Brightness adjustment
Backlight
Backlight color
Touch panel*2 Type
Key size
Simultaneous press
Life
Panel color
Human sensor Detection length
Detection temperature
Memory Flash memory Capacity
Life (number of write times)
Application
Built-in interface RS-232 interface Number of channel
Transmission speed
Connector shape
RS-422/485 interface Number of channel
Transmission speed
Connector shape
Terminating resistor
RS-422/232 interface Number of channel
Transmission speed
Connector shape
RS-422 interface Number of channel
Transmission speed
Connector shape
Terminating resistor
Ethernet interface Number of channel
Transmission speed
Connector shape
Bus interface Type
Number of channel
RGB interface
Printer interface
USB interface (host) Number of channel
Maximum transfer rate
Connector shape
USB interface (device) Number of channel
Maximum transfer rate
Connector shape
SD memory card interface
CF card interface
PC card interface
Option function board interface
Memory board interface
Buzzer output
LED specifications POWER LED
Installation method
Protective structure*3
External dimensions
Panel cut dimensions
Weight (excluding a fitting)
TFT color LCD

WVGA: 800 x 480 dots
222 (W) x 132.5 (H) mm
(8.74 (W) x 5.22 (H) inch)
(Horizontal format)
16-dot standard font: 50 characters x 30 lines (two-byte characters)
12-dot standard font: 66 characters x 40 lines (two-byte characters)
(Horizontal format)
65536 colors
32 levels
LED (not replaceable)
White
Analog resistive film
Minimum 2 x 2 dots (per key)
Not available (Only 1 point can be touched.)
1 million touches or more (operating force: 0.98 N or less)
Black
Flash memory (Internal) : 15 MB
100000 times
for storing project data, OS
1 channel
115200, 57600, 38400, 19200, 9600, 4800 bps
D-sub 9-pin (male)
1 channel
115200, 57600, 38400, 19200, 9600, 4800 bps
D-sub 9-pin (female)
330 Ω, 110 Ω, OPEN (Selectable by the terminating resistor setting switch.)
1 channel
100BASE-TX, 10BASE-T
RJ45 (modular jack) AUTO MDI/MDI-X
1 channel (rear face)
Full-Speed 12 Mbps
USB Mini-B
1 channel, SDHC compliant (maximum 32 GB)
Single tone (LONG/SHORT/OFF adjustable)
Standard
Front: IP65F
272 (W) x 214 (H) x 56 (D) mm
(10.71 (W) x 8.43 (H) x 2.21 (D) inch)
258 (W) x 200 (H) mm
(10.16 (W) x 7.88 (H) inch)
1.3 kg



(*1)Bright dots (always lit) and dark dots (unlit) may appear on a liquid crystal display panel. It is impossible to completely avoid this symptom, as the liquid crystal display comprises of a great number of display elements. Flickers and partial discoloration may be generated on the liquid crystal display panel due to individual differences of panels. Please note that these phenomena appear due to its characteristic and are not caused by product defect.

(*2)The touch panel is an analog-resistive type. Simultaneous pressing of two or more areas on the touch panel may activate the switch between those areas. Do not press two or more areas simultaneously on the touch panel.

(*3)Note that this does not guarantee all users' operation environment. In addition, the product may not be used in environments under exposition of oil or chemicals for a long period of time, or in environments filled with oil-mist.
