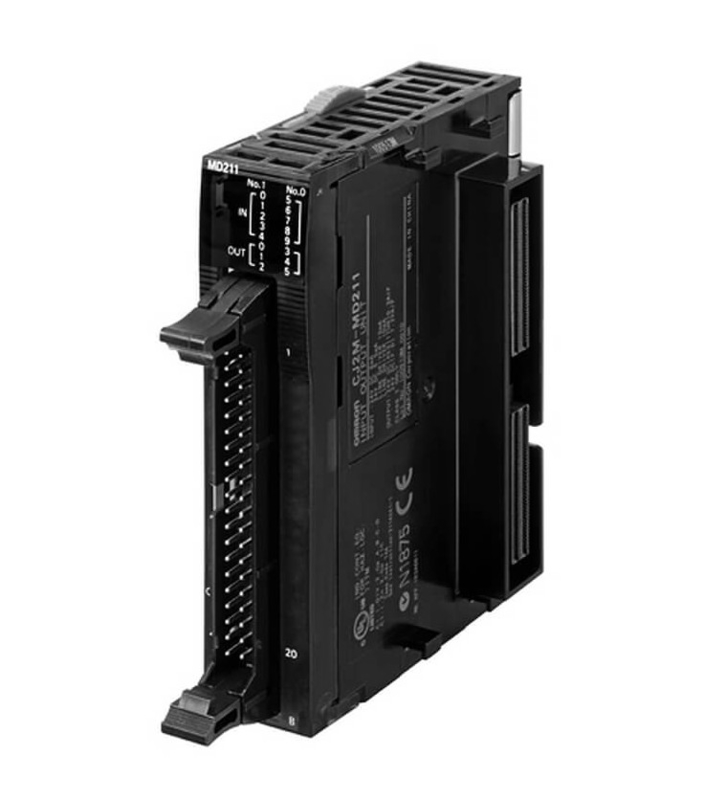

Omron PLC CJ2M
>
|
| Place of Origin | China/Japan |
| Brand Name | Omron |
| Model Number | CJ2M-MD212 |
CJ2M for basic machine automation
The CJ2M Series is ideal for packaging and general machine automation needs. Connectivity is assured thanks to the built-in USB port and the choice of Ethernet and RS-232C/422/485 interfaces on the CPU.
| I/O system | CJ CPU Bus |
| Expansion unit type | CPU Pulse I/O Unit |
| Type of module | Positioning |
| Digital input type | Incremental encoder, Interrupt, PNP, Voltage pulse |
| Digital output type | PNP, PWM, Voltage pulse |
| Number of encoder input channels | 2 |
| Number of pulse output channels | 6 |
| I/O connection type | MIL (plug not included) |
| Number of I/O connectors | 1 |
| Detachable I/O connector | |
| Suitable for safety functions | |
| Communication port(s) | None |
| Height | 90 mm |
| Width | 20 mm |
| Depth | 66.3 mm |
| Weight |
70 g |
|
Description |
Remarks |
Order code |
|---|---|---|
|
High-speed data collection and storage unit, with CF card slot and Ethernet port |
CPU bus unit |
CJ1W-SPU01-V2 |
|
Pulse I/O option module for CJ2M CPU Units, 2 encoder inputs, 2 pulse outputs |
NPN (sinking) outputs |
CJ2M-MD211 |
|
Pulse I/O option module for CJ2M CPU Units, 2 encoder inputs, 2 pulse outputs |
PNP (sourcing) outputs |
CJ2M-MD212 |
|
CompactFlash memory card, 128 MB, for all models (not required for operation) |
Industrial grade |
HMC-EF183 |
|
CompactFlash memory card, 256 MB, for all models (not required for operation) |
Industrial grade |
HMC-EF283 |
|
CompactFlash memory card, 512 MB, for all models (not required for operation) |
Industrial grade |
HMC-EF583 |
|
CompactFlash PC-Card adapter |
- |
HMC-AP001 |
|
I/O terminal block (40-pt.) for CJ1M-CPU2_/CJ2M-MD21_ |
Push-in |
XW2R-P40G-T |
|
I/O terminal block (40-pt.) for CJ1M-CPU2_/CJ2M-MD21_ |
Clamp |
XW2R-E40G-T |
|
I/O terminal block (40-pt.) for CJ1M-CPU2_/CJ2M-MD21_ |
M3 Screws |
XW2R-J40G-T |
|
Connection cable between I/O terminal block and CJ1M-CPU2_/CJ2M-MD21_ ( ____ = length in cm) |
MIL (40 pt) |
XW2Z-____FF-L |
|
Servo unit terminal block for 1 axis |
- |
XW2B-20J6-8A |
|
Servo unit terminal block for 2 axes |
- |
XW2B-40J6-9A |
|
SMARTSTEP cable for CJ1M-CPU2_/CJ2M-MD21_, cable length: 1 m |
- |
XW2Z-100J-A26 |
|
W-series servo cable for CJ1M-CPU2_/CJ2M-MD21_, cable length: 1 m |
- |
XW2Z-100J-A27 |
|
CX-One, integrated software for programming and configuration of all Omron control system components |
- |
CX-ONE-AL__C-E |
|
Connection cable, D-Sub 9-pin PC serial port to PLC peripheral port (length: 2.0 m) |
- |
CS1W-CN226 |
|
Connection cable, D-Sub 9-pin PC serial port to PLC peripheral port (length: 6.0 m) |
- |
CS1W-CN626 |
|
USB to serial conversion cable |
- |
CS1W-CIF31 |
|
RS-232C Option Board 1
1. Only used with CJ2M-CPU3_
|
- |
CP1W-CIF01 |
|
RS-422A/485 Option board 1
1. Only used with CJ2M-CPU3_
|
- |
CP1W-CIF11 |
|
RS422A/485 (isolated) Option board 1
1. Only used with CJ2M-CPU3_
|
- |
CP1W-CIF12 |
|
Battery Set 2
2. Included with the CPU unit
|
- |
CJ1W-BAT01 |
|
USB Programming cable |
- |
CP1W-CN221 |
