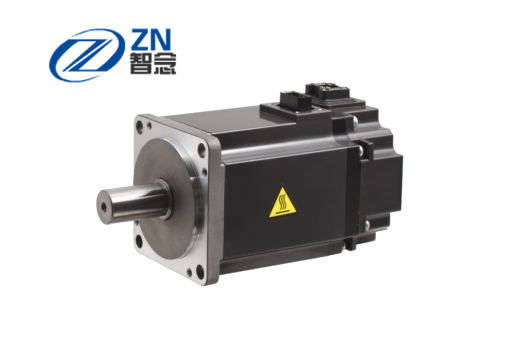

HG-KR73K Mitsubishi AC Servo Motor 1 year Warranty

   HG-KR73K Mitsubishi AC Servo Motor 1 year Warranty

• Servomotor HG Series, Power 750 W; Torque 2.4 Nm, Max. Torque 8.4 Nm, Keyway
• The servo motor with an electromagnetic brake can be used to prevent a drop in vertical lift applications or to ensure double safety at an emergency stop, for example. When operating the servo motor, supply power to the electromagnetic brake to release the brake. Switching power off enables the electromagnetic brake.
•
• Specification

• Type	HG-KR
  Rated Capacity (kW)	0,75
  Rated Torque (Nm)	2,4
  Maximum Torque (Nm)	8,4
  Rated Speed (rpm)	3000
  Maximum Speed (rpm)	6000
  Inertia (kg*cm2)	1,26
  Brake	NO
  Shaft Type	KEYWAY
  Protection Class	IP65
  Power Supply (V)	200
  Current Type	AC
  Encoder Type	ABSOLUTE/INCREMENTAL
  Width (mm)	80
  Height (mm)	97,1
  Depth (mm)	112
  Weight (kg)	2,8
  CE	COMPLIANT
  UL/cUL	COMPLIANT
  EAC	COMPLIANT
  UKCA	COMPLIANT

•
