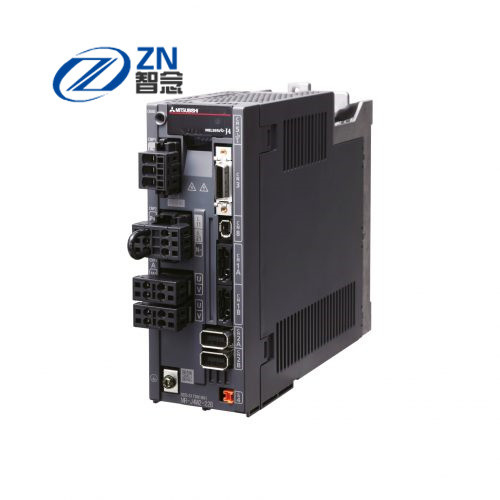

MR-J4-350A Mitsubishi Brand Servo Amplifier Fast Delivery

MR-J4-350A Mitsubishi Brand Servo Amplifier Fast Delivery

MR-J4-A Type
・ Servo amplifier applicable with general-purpose interface.
・ Position control by pulse train command and speed/torque control by analog voltage command are possible.
・ It supports maximum command pulse frequency of 4 M pulses/s.

• Specification
•

• Voltage class:	200V
  Motor rated output:	3.5 [KW]
  output Rated voltage:	Three-phase AC170 V
  output Rated current:	17.0 [A]
  Voltage and frequency (Note 1):	Three-phase AC200 V ~ 240 V, 50 Hz / 60 Hz
  Rated current (Note 14):	16
  Allowable voltage fluctuation:	Three-phase AC170 V ~ 264 V
  Allowable frequency fluctuation:	Within ±5%
  Control circuit power input: Voltage and frequency:	Single-phase AC200 V ~ 240 V, 50 Hz / 60 Hz
  Rated current:	0.2 [A]
  Power supply interface:	DC24 V ± 10% (required current capacity: including the 0.5 A (CN8 connector signal))
  control method:	Sinusoidal wave PWM control and current control system
  Permissible regenerative power:	Hundred
  Dynamic brake:	Built-in (Note 4)
  Communication function: USB:	connection to a personal computer (MR Configurator2 correspondence)
  RS-422 / RS-485:	a maximum of up to 32 axes 1: n communication (Note 10)
  Analog monitor:	2 channels
  USB:	connection to a personal computer (MR Configurator2 correspondence)
  Weight :	2.3 Kg

•
• RFQ:

• 1. Q: Do you provide warranty for the goods?

  A: Yes, we provide warranty for all the goods from us.



  2. Q: Could Zhinian provide technology support?

  A: We're in this field more than 12 years. If there's any problem, please contact with us,we'll provide suggestion from our engineer to help you solve problem.



  3. Q:Does Zhinian keeps goods in stock or only trading?

  A: We have large warehouse for goods. Keep lots of goods in warehouse, so could promise fast delivery.

•
•

• Packing and Delivery


•
