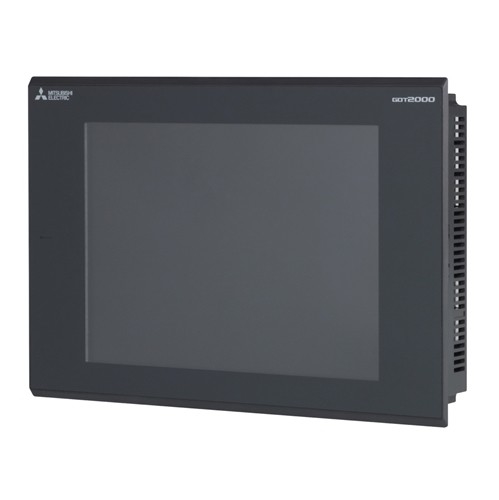

GT2310-VTBD Mitsubishi Touch Screen 65K colour Graphic Operator Terminal
Mitsubishi Electric GOT2000 HMIs provide the user with a comprehensive range of options to ensure your application or process is covered. Comes equipped with a high speed CPU for responsive HMI operation even under high load processes including logging and device data transmission. Supporting a wide variety of communication options including RS232, RS485/422 and Ethernet making this series of HMI very versatile
Premium processor coupled with expanded memory
Multi-touch operation
Wide variety of communication functions to ensure your application is covered
Double the speed for monitoring & booting of previous generation
Simplified setup and debugging controls for simple setup
Supports a wide variety of image formats, including PNG
Available in a variety of screen sizes, ranging from 7" - 15"
Backwards compatible with previous generation (GOT1000 series) for a swift transistion
| Model |
| Product name |
| Series name |
| Model name |
|
GT2310-VTBD
|
|
GT23 model
|
|
GOT2000
|
|
GT23
|
| Display section*1 *2 | Display device | |
| Screen size | ||
| Resolution | ||
| Display size | ||
| Number of displayed characters | ||
| Display color | ||
| Brightness adjustment | ||
| Registrable number of screen | ||
| Backlight*4 | ||
| Backlight life | ||
| Backlight color | ||
| Touch panel*3 *9 | Type | |
| Key size | ||
| Simultaneous press | ||
| Life | ||
| Panel color | ||
| Human sensor | Detection length | |
| Detection temperature | ||
| Memory | User memory | Capacity |
| Life (number of write times) | ||
| Built-in clock precision | ||
| Battery | Type | |
| Data to be backed up | ||
| Life | ||
| Built-in interface | RS-232 interface | Number of channel |
| Transmission speed | ||
| Connector shape | ||
| RS-422/485 interface | Number of channel | |
| Transmission speed | ||
| Connector shape | ||
| RS-422/232 interface | Number of channel | |
| Transmission speed | ||
| Connector shape | ||
| Application | ||
| RS-422 interface | Number of channel | |
| Transmission speed | ||
| Connector shape | ||
| Ethernet interface | Number of channel | |
| Transmission speed | ||
| Connector shape | ||
| Bus interface | Type | |
| Number of channel | ||
| RGB interface | ||
| Printer interface | ||
| USB interface (host) | Number of channel | |
| Maximum transfer rate | ||
| Connector shape | ||
| USB interface (device) | Number of channel | |
| Maximum transfer rate | ||
| Connector shape | ||
| SD memory card interface*10 | ||
| CF card interface | ||
| PC card interface | ||
| Option function board interface | ||
| Memory board interface | ||
| Buzzer output | ||
| LED specifications | POWER LED | |
| Installation method | ||
| Protective structure*6 | ||
| External dimensions | ||
| Panel cut dimensions | ||
| Weight (excluding a fitting) | ||
|
TFT color LCD
|
|
VGA: 640 x 480 dots
|
|
211.2 (W) x 158.4 (H) mm
(8.31 (W) x 6.24 (H) inch) |
|
16-dot standard font: 40 characters x 30 lines (two-byte characters)
12-dot standard font: 53 characters x 40 lines (two-byte characters) |
|
65536 colors
|
|
16 levels
|
|
4096
|
|
LED (not replaceable)
|
|
Approx. 50000 h (operating ambient temperature: 25°C, display intensity: 50%)
|
|
White
|
|
Analog resistive film
|
|
Minimum 2 x 2 dots*7 (per key)
|
|
Not available*5 (Only 1 point can be touched.)
|
|
1 million touches or more (operating force: 0.98 N or less)
|
|
Black
|
|
－
|
|
－
|
|
Memory for storage (ROM) *10 : 9 MB
Memory for operation (RAM) : 9 MB |
|
100000 times
|
|
±90 seconds/month (ambient temperature: 25°C)
|
|
GT11-50BAT lithium battery (option)
|
|
SRAM data, clock data, system status log data
|
|
Approx. 5 years (ambient temperature: 25°C)
|
|
1 channel
|
|
115200, 57600, 38400, 19200, 9600, 4800 bps
|
|
D-sub 9-pin (male)
|
|
1 channel
|
|
115200, 57600, 38400, 19200, 9600, 4800 bps
|
|
D-sub 9-pin (female)
|
|
－
|
|
－
|
|
－
|
|
－
|
|
－
|
|
－
|
|
－
|
|
1 channel
|
|
100BASE-TX, 10BASE-T
|
|
RJ45 (modular jack) AUTO MDI/MDI-X
|
|
－
|
|
－
|
|
－
|
|
－
|
|
1 channel (rear face)
|
|
Full-Speed 12 Mbps
|
|
USB-A
|
|
1 channel (rear face)
|
|
Full-Speed 12 Mbps
|
|
USB Mini-B
|
|
1 channel, SDHC compliant (maximum 32 GB)
|
|
－
|
|
－
|
|
－
|
|
－
|
|
Single tone (tone length adjustable)
|
|
2 colors (blue and orange)
|
|
Standard
|
|
Front: IP67F*8
Inside control panel: IP2X |
|
303 (W) x 218 (H) x 56 (D) mm
(11.93 (W) x 8.58 (H) x 2.20 (D) inch) |
|
289 (W) x 200 (H) mm
(11.38 (W) x 7.87 (H) inch) |
|
1.9 kg
(4.2 lb) |
