| Place of Origin | China |
| Brand Name | Omron |
| Model Number | CJ1W-MAD42 |

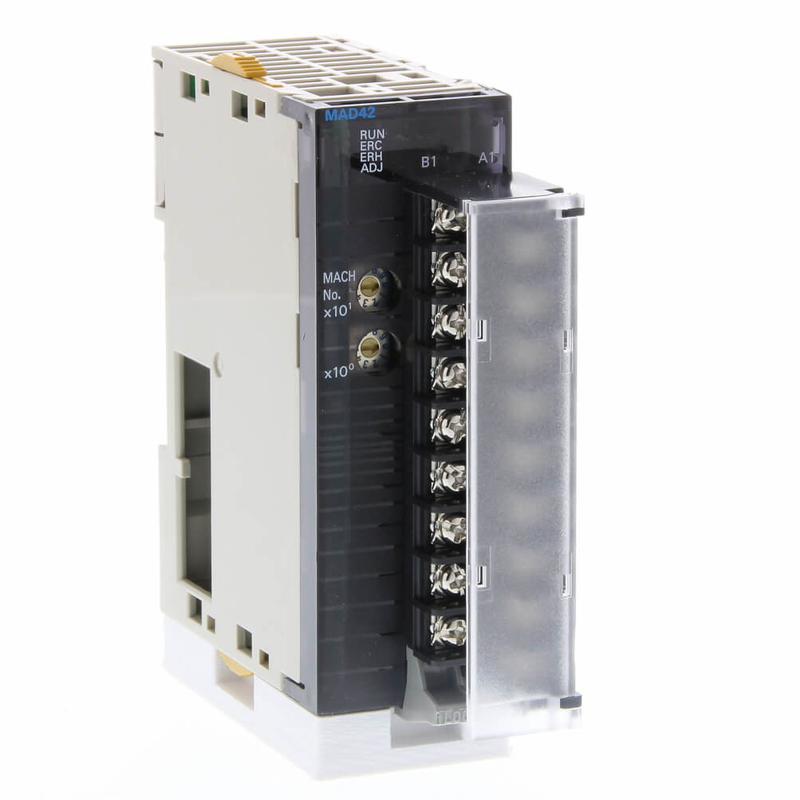

CJ1W-MAD42 OMRON PLC ANALOG I/O MODULE 4 IN / 2 OUT
| Input Type | Analogue |
|---|---|
| Linear Analog Input Type | -10 to 10 V,0 to 5 V,0 to 10 V,1 to 5 V,4 to 20 mA |
| Output Type | Analogue |
| Temperature Input Type | None |
| Analog Inputs | 4 x analog inputs (1-5Vdc / 0-5Vdc / 0-10Vdc / −10...+10Vdc / 4-20 mA, 1/4000 resolution, 1ms conversion time) |
| Analog Outputs | 2 x analog outputs (1-5Vdc / 0-5Vdc / 0-10Vdc / −10...+10Vdc / 4-20 mA, 1/4000 resolution, 1ms conversion time) |
| Compliant With Standard(S) | cULus (Class I Division 2 Products for Hazardous Locations) |
| Current Consumption | (5Vdc) 0.58 A |
| Detachable I/O Connector | 1 |
| Dimensions | 90 x 31 x 65 mm |
| Expansion Unit Type | Special I/O Unit |
| For Use With | SYSMAC CJ Series |
| Functions | Analog voltage and current mixed input and output unit |
| I/O Connection Type | Screw |
| I/O System | CJ I/O Bus |
| Legislation And Compliance | RoHS Status: Not Applicable |
| Linear Analog Output Type | 4 to 20 mA,1 to 5 V,0 to 10 V,0 to 5 V,-10 to 10 V |
| Main Function | I/O unit |
| Manufacturer Product Status | Commercialized |
| Mounting Mode | DIN rail |
| Number Of I/O Connectors | 1 |
| Positions Per I/O Connector | 18 |
| Product Depth | 89 mm |
| Product Height | 95.4 mm |
| Product Series / Family Name | SYSMAC CJ1 series |
| Product Width | 31 mm |
| Resolution | 1/4000 (Settable to 1/8000) |
| Sub-Range Name | CJ1W-MAD |
| Type Of Module | Analog I/O |
