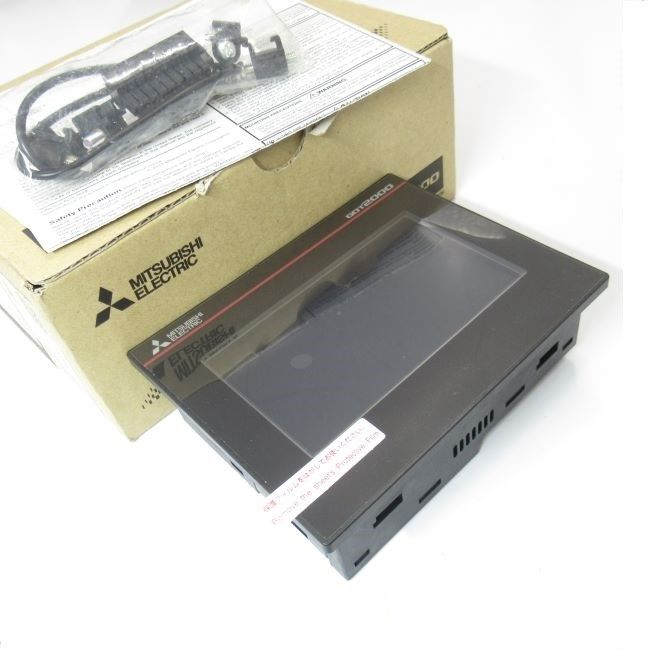

Mitsubishi HMI Touch Screen
>
|
| Place of Origin | China/Japan |
| Brand Name | Mitsubishi |
| Model Number | GT2104-RTBD |
・Widescreen type compact model!
High resolution, 480 × 272 dot display realized in a compact body!
・Wide screen display fits a lot of data!
The wide model shows a large amount of information on a 65536 color display.
| Operating ambient temperature | Display section |
| Storage ambient temperature | |
| Operating ambient humidity | |
| Storage ambient humidity | |
| Vibration resistance | Approval standards |
| Under intermittent vibration |
|
| Under continuous vibration |
|
| Shock resistance | |
| Operating atmosphere | |
| Operating altitude | |
| Installation location | |
| Overvoltage category | |
| Pollution degree | |
| Cooling method | |
| Grounding | |
| Remarks | Operating ambient temperature |
| Operating ambient humidity | |
| Storage ambient humidity | |
| Operating altitude | |
| Overvoltage category | |
| Pollution degree | |
|
0°C to 55°C (horizontal installation), 0°C to 50°C (vertical installation)
|
|
-20°C to 60°C
|
|
10%RH to 90% RH, non-condensing
|
|
10%RH to 90% RH, non-condensing
|
|
Compliant with JIS B 3502 and IEC 61131-2*13
|
|
[ Frequency: 5 to 8.4 Hz ]
Half amplitude: 3.5 mm Sweep count: 10 times in each X, Y, or Z direction [ Frequency: 8.4 to 150 Hz ] Acceleration: 9.8 m/s2 Sweep count: 10 times in each X, Y, or Z direction |
|
[ Frequency: 5 to 8.4 Hz ]
Half amplitude: 1.75 mm [ Frequency: 8.4 to 150 Hz ] Acceleration: 4.9 m/s2 |
|
Compliant with JIS B 3502 and IEC 61131-2 (147 m/s2 (15 G), 3 times in each X, Y, or Z direction)
|
|
No greasy fumes, corrosive gas, flammable gas, excessive conductive dust, and direct sunlight (as well as at storage)
|
|
2000 m or less
|
|
Inside control panel
|
|
II or less
|
|
2 or less
|
|
Self-cooling
|
|
Grounding with a ground resistance of 100 Ω or less by using a ground cable that has a cross-sectional area of 0.14 to 1.5 mm2 (single wire), 0.14 to 1.0 mm2 (stranded wire), or 0.25 to 0.5 mm2 (rod terminal with an insulation sleeve). If impossible, connect the ground cable to the control panel.
|
|
Includes the temperature inside the enclosure of the control panel to which the GOT is installed.
|
|
When a protective cover for oil is mounted on the horizontally installed GOT, the maximum operating ambient temperature must be 5°C lower than the one described above.
|
|
If the ambient temperature exceeds 40°C, the absolute humidity must not exceed 90% RH at 40°C.
|
|
If the ambient temperature exceeds 40°C, the absolute humidity must not exceed 90% RH at 40°C.
|
|
Do not use or store the GOT under a pressure higher than the atmospheric pressure at altitude 0 m.
Doing so may cause a malfunction. Air purging by applying pressure to the control panel may create clearance between the surface sheet and the touch panel. This may cause the touch panel to be not sensitive enough or the sheet to come off. |
|
This indicates the section of the power supply to which the equipment is assumed to be connected between the public electrical power distribution network and the machinery within the premises.
Category II applies to equipment that is supplied with power from fixed facilities. The withstand surge voltage for the equipment with the rated voltage up to 300 V is 2500 V. |
|
This indicates the occurrence rate of conductive material in an environment where a device is used.
Pollution degree 2 indicates an environment where only non-conductive pollution occurs normally and a temporary conductivity caused by condensation shall be expected depending on the conditions. |
