| Place of Origin | China/Japan |
| Brand Name | Mitsubishi |
| Model Number | GS2107-WTBD-N |

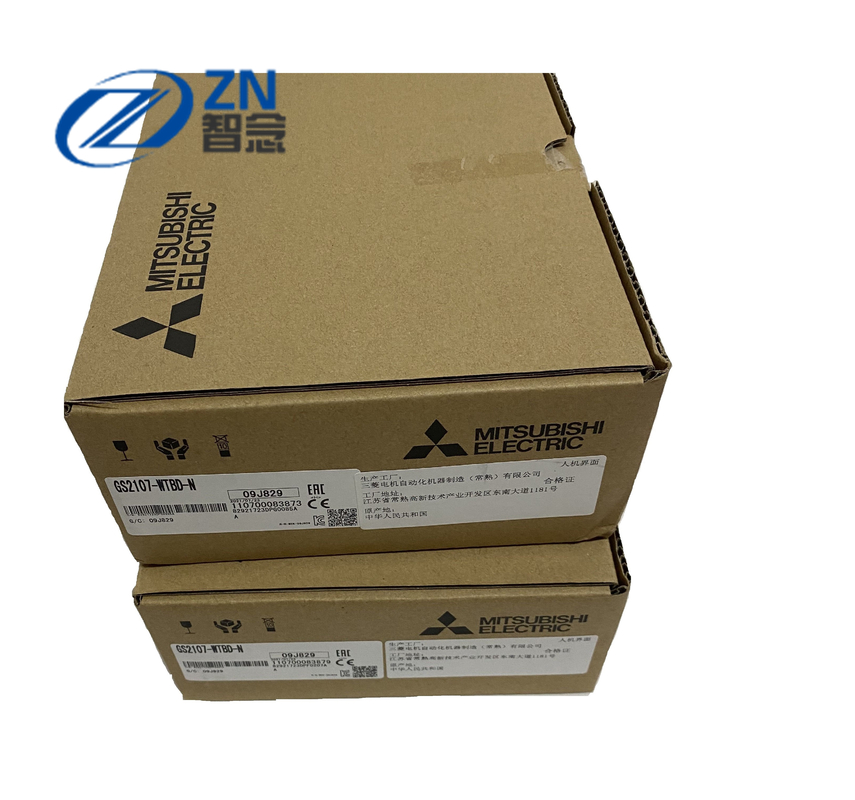

GS2107-WTBD-N Mitsubishi GOT Simple 7"wideTFT HMI
Description
Simple, high functioning, and user friendly model for a reliable system.
[ Logging function ]
GOT SIMPLE manages the data of all connected industrial devices. The data can be collected at an arbitrary timing and can be used for data analysis and feedback.
[ Multi-channel function ]
Up to 2 industrial devices can be controlled with one GOT SIMPLE. The data can be easily transferred between devices with just simple settings in GT Works3.
[ FA transparent function ]
The GOT SIMPLE acts as a transparent gateway to enable programming, start up, and adjustment of Mitsubishi Electric industrial devices. Users do not have to bother with changing cable connections.
| Display section | Display device | TFT color LCD | |
| Screen size | 7" Wide | ||
| Resolution | WVGA: 800 x 480 dots | ||
| Display size | 154 (W) x 85.9 (H) mm (6.06 (W) x 3.38 (H) inch) (Horizontal format) | ||
| Number of displayed characters | 16-dot standard font: 50 characters x 30 lines (two-byte characters) 12-dot standard font: 66 characters x 40 lines (two-byte characters) (Horizontal format) | ||
| Display color | 65536 colors | ||
| Brightness adjustment | 32 levels | ||
| Backlight | LED (not replaceable) | ||
| Backlight color | White | ||
| Touch panel | Type | Analog resistive film | |
| Key size | Minimum 2 x 2 dots (per key) | ||
| Simultaneous press | Not available (Only 1 point can be touched.) | ||
| Life | 1 million touches or more (operating force: 0.98 N or less) | ||
| Panel color | Black | ||
| Human sensor | Detection length | － | |
| Detection temperature | － | ||
| Memory | Flash memory | Capacity | Flash memory (Internal) : 15 MB |
| Life (number of write times) | 100000 times | ||
| Application | for storing project data, OS | ||
