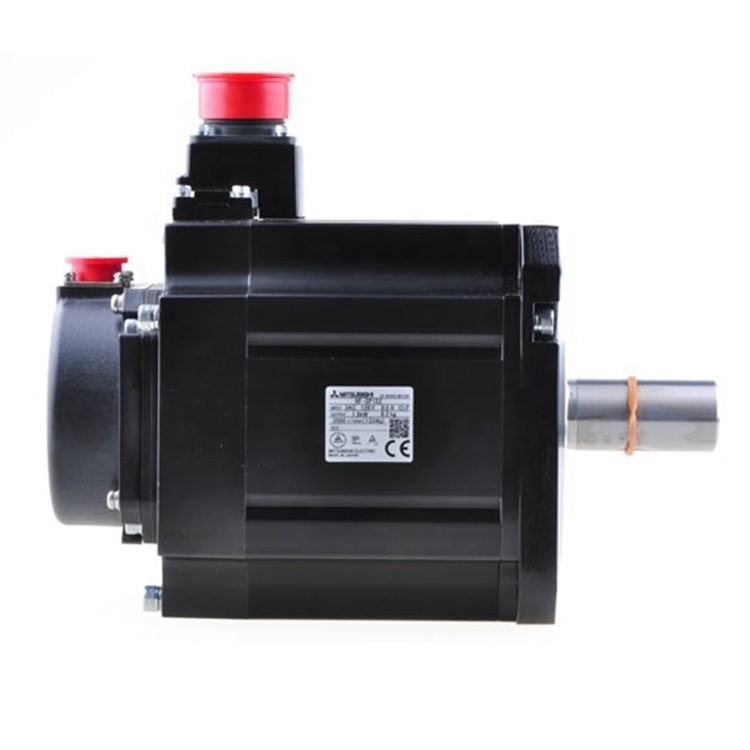

HF-SP152 Original Japan MITSUBISHI Medium Inertia Power Servo Motor
  • HF-SP152 Original Japan MITSUBISHI Medium Inertia Power Servo Motor
  • HF-SP152 Original Japan MITSUBISHI Medium Inertia Power Servo Motor

HF-SP152 Original Japan MITSUBISHI Medium Inertia Power Servo Motor

Place of Origin Japan/ China
Brand Name Mitsubishi
Model Number HF-SP152
Product Details
Type:
Servo Motor
Manufacturer:
Mitsubishi Electric
TYPE:
HF
Warranty:
1 Year
Application:
General Machinery
Frequency:
50-60HZ Servo Motor
Rated Voltage:
3 Phase 380/480V
High Light:

Medium Inertia Power Servo Motor

,

HF-SP152 MITSUBISHI Servo Motor

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$10.00 - $500.00/Pieces
Packaging Details
100% Original Package
Delivery Time
3-5 days
Payment Terms
T/T, Western Union
Supply Ability
1000 Piece/Pieces per Quarter
Product Description

HF-SP152 Original Japan MITSUBISHI Medium Inertia Power Servo Motor



Description

Mitsubishi Servo Motor HF-SP152

  • Extended Product Type : Moters
  • Product ID : HF-SP152
  • Mitsubishi Type Designation : Moters

Specification

  • Mounting method : Flange mounting
  • Mounting direction : In any directions
  • Lubrication method : Grease lubrication
  • Output shaft rotating direction : Opposite direction to the servo motor shaft
  • Backlash : 40 minutes to 2* at reduction gear output shaft
  • Permissible load inertia moment ratio : 4 times or less
  • Maximum torque : Three times of the servo motor rated torque
  • Reduction gear efficiency : 85 to 94%



Specifications of Mitsubishi Servo HF-SP152:

SERVO MOTOR
Type HF-SP
Rated Capacity (kW) 1,5
Rated Torque (Nm) 7,16
Maximum Torque (Nm) 21,5
Rated Speed (rpm) 2000
Maximum Speed (m/s) 3000
Inertia (kg*cm2) 17,8
Brake NO
Shaft Type STRAIGHT SHAFT
Protection Class IP67
Power Supply (V) 200
Current Type AC
Encoder Type ABSOLUTE/INCREMENTAL
Encoder Resolution (p/rev) 262144
PRODUCT DIMENSIONS & WEIGHT
Width (mm) 130
Height (mm) 130
Depth (mm) 162,5
Weight (kg) 8,3
