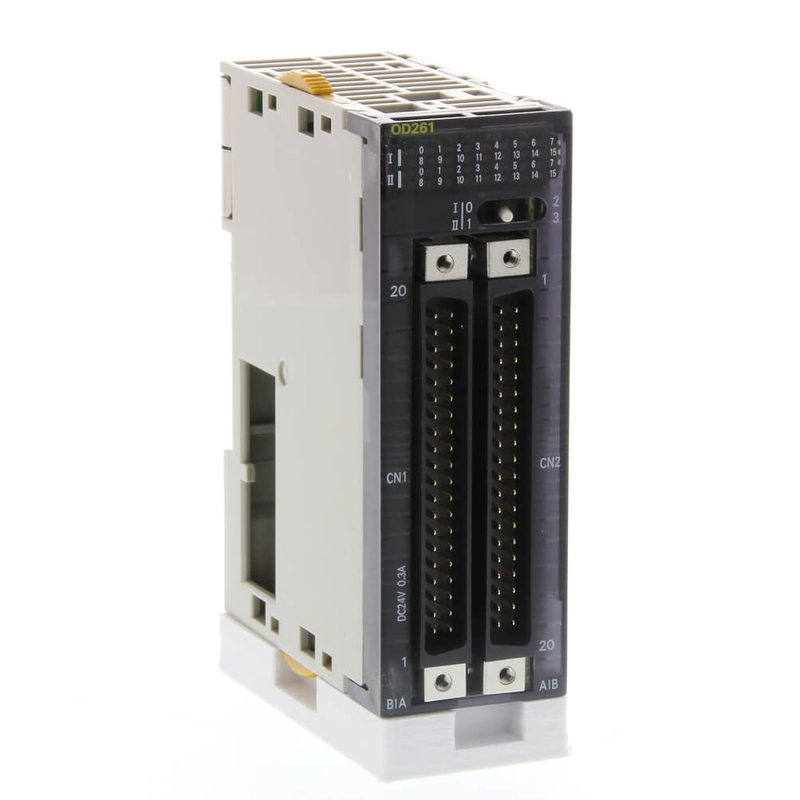

CJ1W-OD261 PLC Expansion Module , CJ-Series Transistor Output Unit
  • CJ1W-OD261 PLC Expansion Module , CJ-Series Transistor Output Unit
  • CJ1W-OD261 PLC Expansion Module , CJ-Series Transistor Output Unit
  • CJ1W-OD261 PLC Expansion Module , CJ-Series Transistor Output Unit

CJ1W-OD261 PLC Expansion Module , CJ-Series Transistor Output Unit

Place of Origin China/Japan
Brand Name Omron
Model Number CJ1W-OD261
Product Details
Warranty:
12 Months
Expansion Unit Type:
Basic I/O Unit
Number Of Outputs And Type:
64 - Solid State
Type:
Output Module
Mounting Type:
DIN Rail
Termination Style:
Rectangular Connector
High Light:

CJ1W-OD261 PLC Expansion Module

,

DIN Rail PLC Expansion Module

,

CJ Series Transistor Output Unit

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$50-500
Packaging Details
Carton packaging
Payment Terms
T/T, western union
Supply Ability
10pc/per week
Product Description

CJ1W-OD261 PLC Expansion Module,CJ-Series Transistor Output Unit

Product Description
I/O SYSTEM CJ I/O Bus
EXPANSION UNIT TYPE Basic I/O Unit
TYPE OF MODULE Digital I/O
NUMBER OF DIGITAL INPUTS 0
DIGITAL INPUT TYPE None
NUMBER OF DIGITAL OUTPUTS 64
DIGITAL OUTPUT TYPE NPN
PERMITTED VOLTAGE AT OUTPUT 10.2-26.4 V
OUTPUT CURRENT 0.3 A
SHORT-CIRCUIT PROTECTED OUTPUTS No
I/O CONNECTION TYPE FCN (plug not included)
NUMBER OF I/O CONNECTORS 2
DETACHABLE I/O CONNECTOR Yes
SUITABLE FOR SAFETY FUNCTIONS No
NUMBER OF IOV (V+) TERMINALS 8
NUMBER OF IOG (V-) TERMINALS 8
NUMBER OF COM TERMINALS 0
HEIGHT 90 mm
WIDTH 31 mm
DEPTH 66.5 mm
WEIGHT 110 g

Features:



Omron CJ1W-OD261 Digital output unit, 64 x transistor outputs, NPN, 0.5 A, 12 to 24 VDC, 2 x FCN40 connectors (not included). Omron CJ Digital I/O Units. CJ1 units are available with various I/O densities and connection technologies. Up to 16 I/O points can be wired to units with detachable M3 screw terminals or screwless clamp terminals. High-density 32- and 64- point I/O units are equipped with standard 40-pin ‘flatcable’-connectors. Prefabricated cables and wiring terminals are available for easy interfacing to high-density I/O units.



CJ1W-OD261 PLC Expansion Module , CJ-Series Transistor Output Unit 0CJ1W-OD261 PLC Expansion Module , CJ-Series Transistor Output Unit 1
