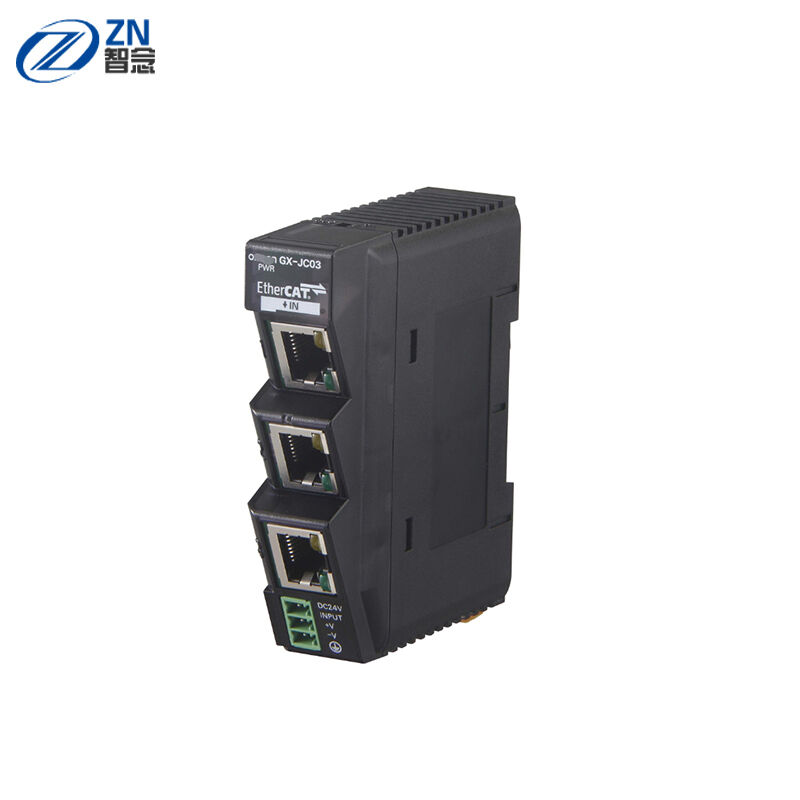

| Model Number | GX-JC03 |
Realizing flexible wiring by daisy chain and branch
Compact size as the industry's smallest *
Compact size as width 25 mm (3-port type) realizing space saving on the board
Power supply voltage operable for long distance wiring
Operable with 24 VDC. The range of power-supply voltage is from maximum 28.8 VDC to minimum 20.4 VDC in consideration of a power voltage drop by long distance wiring.
| Power supply voltage | 20.4 to 28.8 VDC | |
| Current consumption | 80 mA | |
| Ambient operating temperature | -10 to 55°C | |
| Ambient operating humidity | 25% to 85% (with no condensation) | |
| Ambient storage temperature | -25 to 65°C | |
| Ambient storage humidity | 25% to 85% (with no condensation) | |
| Dimensions | 25 mm × 78 mm × 90 mm | |
| Weight | 165 g | |
