| Place of Origin | China/Japan |
| Brand Name | Mitsubishi |
| Model Number | FR-D720-0.1K |

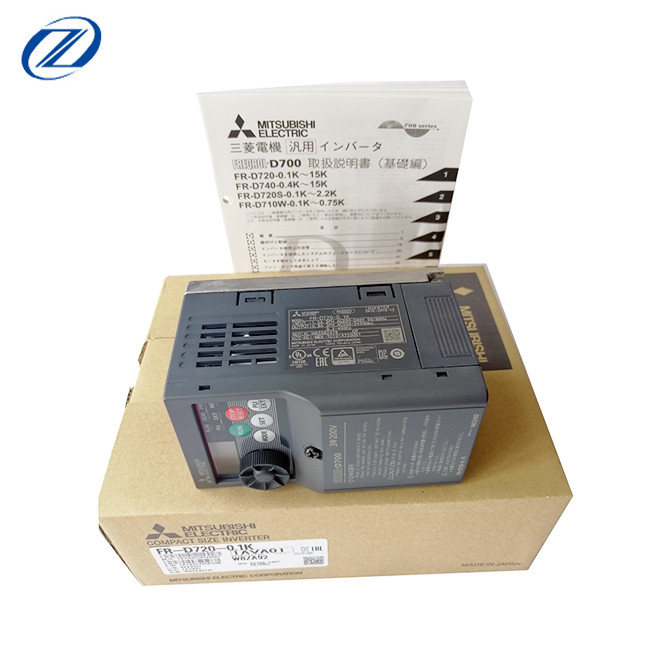

Mitsubishi FR-D720-0.1K D700 Series VSD Inverter
Inverter; Rated Power: 0,1kW; 3x200-240V; Rated Current: 0,8A; IP20
| Power Loss SLD (W) | N/A |
|---|---|
| Power Loss ND (W) | 14 |
| Power Loss HD (W) | N/A |
| Power Loss LD (W) | N/A |
| Control Method (2) | N/A |
| Built-In Network (2) | N/A |
| Series | FR-D700 SERIES |
| Safe Torque Off (STO) | YES |
| Rated Output Current ND (A) | 0,8 |
| Phases | 3 |
| Integrated Digital Inputs | 5 |
| Display Type | 4 DIGITS LED |
| Integrated EMC Filter | NO |
| Integrated DC Choke | NO |
| RS-485 | 1 |
| Integrated Analogue Outputs | 1 |
| Type | FR-D700 COMPACT INVERTER |
| Rated Output Current SLD (A) | N/A |
| Program Memory | N/A |
| PLC Function | NO |
| Rated Motor Capacity ND (kW) | 0,1 |
| Control Method | V/F CONTROL |
| Integrated Analogue Inputs | 2 |
| Rated Output Current LD (A) | N/A |
| Program Memory Unit | N/A |
| USB | NO |
| Brake Chopper ED (%) | 30 |
| Current Type | AC |
| Protection Class | IP20 |
| Motor Type | INDUCTION MOTOR |
| Display | BUILT-IN |
| Rated Motor Capacity SLD (kW) | N/A |
| Max. Permissible Voltage (V) | 264 |
| Digital Outputs (Transistor) | 1 |
| Rated Output Current HD (A) | N/A |
| Expandable | NO |
| Minimum Rated Voltage (V) | 200 |
| Min. Permissible Voltage (V) | 170 |
| Digital Outputs (Relay) | 1 |
| Rated Motor Capacity LD (kW) | N/A |
| Type of Terminal Block | SPRING CLAMP |
| Maximum Rated Voltage (V) | 240 |
| Built-In Network | MODBUS-RTU |
| Rated Motor Capacity HD (kW) | N/A |
| Regenerative (4Q) | NO |
| Leakage Current (mA) | 1 |
| Power Loss (W) | N/A |
| Standby Power Consumption (W) | 5,5-10,5 |
| Ethernet Port | NO |
| Depth (mm) | 80,5 |
|---|---|
| Weight (kg) | 0,5 |
| Width (mm) | 68 |
| Height (mm) | 128 |
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
