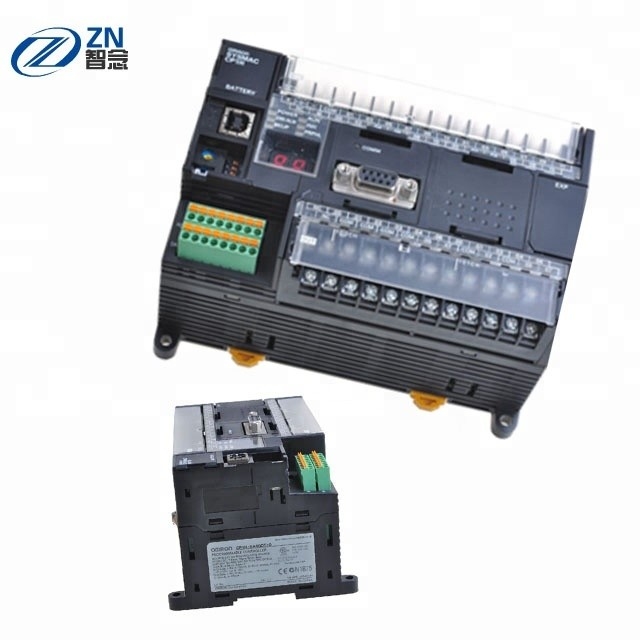

Black Omron PLC CP1L-EM30DT-D Programmable Logic Controller Ethernet port

CP1L-EM30DT-D Programmable Logic Controller Omron PLC

Features

• "CP1L-EM" and "CP1L-EL" have complete with a Ethernet port.
• Pulse output for two axes. Advanced power for high-precision positioning control.
• High-speed Counters. Single-phase for four axes.
• Six interrupt inputs are built in. Faster processing of instructions speeds up the entire system.
• Serial Communications. Two ports. Select Option Boards for either RS-232C or RS-485 communications.
• "CP1L-M" and "CP1L-L" have a peripheral USB port.
• The Structured Text (ST) Language. Makes math operations even easier.
• Can be used for the CP1W series Unit. The extendibility of it is preeminently good.
• LCD displays and settings. Enabled using Option Board.

Built-in Ethernet port



CPU Unit	Specifications					Model
	CPU type	Power supply	Output method	Inputs	Out- puts
CP1L-EM CPU Units with 40 Points	Memory capacity: 10K steps High-speed counters: 100 kHz, 4 axes Pulse outputs: 100 kHz, 2 axes (Models with transistor outputs only)	DC power supply	Relay output	24	16	CP1L-EM40DR-D
			Transistor output (sinking)			CP1L-EM40DT-D
			Transistor output (sourcing)			CP1L-EM40DT1-D
CP1L-EM CPU Units with 30 Points	Memory capacity: 10K steps High-speed counters: 100 kHz, 4 axes Pulse outputs: 100 kHz, 2 axes (Models with transistor outputs only)	DC power supply	Relay output	18	12	CP1L-EM30DR-D
			Transistor output (sinking)			CP1L-EM30DT-D
			Transistor output (sourcing)			CP1L-EM30DT1-D
CP1L-EL CPU Units with 20 Points	Memory capacity: 5K steps High-speed counters: 100 kHz, 4 axes Pulse outputs: 100 kHz, 2 axes (Models with transistor outputs only)	DC power supply	Relay output	12	8	CP1L-EL20DR-D
			Transistor output (sinking)			CP1L-EL20DT-D
			Transistor output (sourcing)			CP1L-EL20DT1-D
