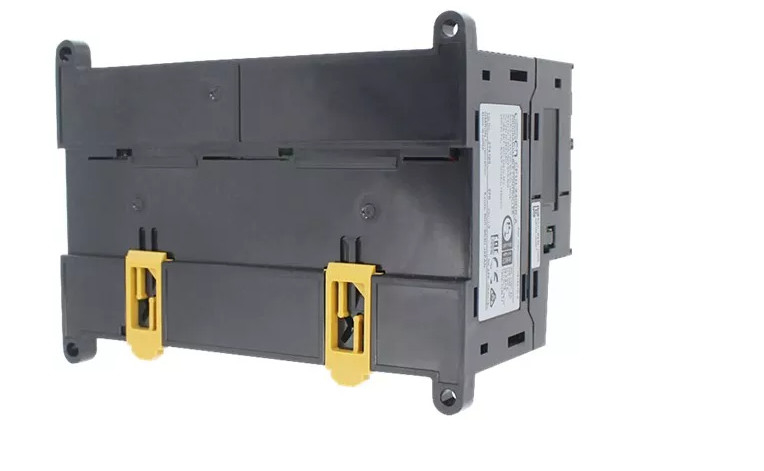

PLC Omron Sysmac CP1E-E60SDR-A Controller Programable CPU Module
  • PLC Omron Sysmac CP1E-E60SDR-A Controller Programable CPU Module
  • PLC Omron Sysmac CP1E-E60SDR-A Controller Programable CPU Module
  • PLC Omron Sysmac CP1E-E60SDR-A Controller Programable CPU Module
  • PLC Omron Sysmac CP1E-E60SDR-A Controller Programable CPU Module

PLC Omron Sysmac CP1E-E60SDR-A Controller Programable CPU Module

Place of Origin China/Japan
Brand Name Omron
Model Number CP1E-E60SDR-A
Product Details
Series:
CP1E Series
Main Function:
CPU Unit
Output Type:
Relay
Inputs:
36
Outputs:
24
Condition:
100% Original
Warranty:
1 Year
PAYMENT:
TT.Western Union
Lead Time:
In Stock
Port:
Selectable
MOQ:
1 PC
High Light:

PLC Omron Sysmac CP1E

,

Programable Omron Sysmac CP1E

,

CP1E-E60SDR-A

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$50-500
Packaging Details
Carton packaging
Payment Terms
T/T, western union
Supply Ability
10pc/per week
Product Description

Omron Sysmac Controlador Programable PLC CP1E CPU Module CP1E-E60SDR-A







  • Class - E : Basic model
  • I/O capacity - 60 : 60 I/O points (36 inputs, 24 outputs)
  • Unit type - S : Renewal
  • Built-in RS-485 port - None : Normal
  • Input type - D : DC inputs
  • Output type - R : Relays outputs
  • Power supply - A : 100 to 240 VAC
  • Inputs : 36
  • Outputs : 24
  • Output type : Relay
  • Program capacity : 2K steps
  • Data memory capacity : 2K words
  • Omron PLC CP-series CP1E CPU Units CP1E-E40SDR-A CP1E-E60SDR-A - United  Automation



CP1E-E60SDR-A : CP1EE60SDRA Specification

Additional program memory possible:
No
Appendant operation agent (Ex ia):
No
Appendant operation agent (Ex ib):
No
Category according to EN 954-1:
B
Depth:
79mm
ETIM Class:
PLC CPU-module
ETIM Group:
PLC's
Explosion safety category for dust:
None
Explosion safety category for gas:
None
Front build in possible:
No
Height:
90mm
IO link master:
No
Max. number of time switches:
255
Memory size:
20kByte
Model:
Compact
Number of analogue inputs:
0
Number of analogue outputs:
0
Number of digital inputs:
36
Number of digital outputs:
24
Number of HW-interfaces industrial Ethernet:
0
Number of HW-interfaces other:
0
Number of HW-interfaces parallel:
0
Number of HW-interfaces RS-232:
0
Number of HW-interfaces RS-422:
0
Number of HW-interfaces RS-485:
0
Number of HW-interfaces USB:
1
Number of HW-interfaces Wireless:
0
Number of interfaces PROFINET:
0
Number of relay outputs:
24
Performance level acc. EN ISO 13849-1:
Level a
Processing time (1K, binary operation):
1.1ms
Rack-assembly possible:
No
Radio standard Bluetooth:
No
Radio standard GPRS:
No
Radio standard GSM:
No
Radio standard UMTS:
No
Radio standard WLAN 802.11:
No
Rail mounting possible:
Yes
Redundancy:
No
SIL according to IEC 61508:
None
Suitable for safety functions:
No
Supply voltage AC 50 Hz:
85 - 264V
Supply voltage AC 60 Hz:
85 - 264V
Supporting protocol for ASI:
No
Supporting protocol for AS-Interface Safety at Work:
No
Supporting protocol for CAN:
No
Supporting protocol for Data-Highway:
No
Supporting protocol for DeviceNet:
No
Supporting protocol for DeviceNet Safety:
No
Supporting protocol for EtherNet/IP:
No
Supporting protocol for Foundation Fieldbus:
No
Supporting protocol for INTERBUS:
No
Supporting protocol for INTERBUS-Safety:
No
Supporting protocol for KNX:
No
Supporting protocol for LON:
No
Supporting protocol for MODBUS:
No
Supporting protocol for other bus systems:
No
Supporting protocol for PROFIBUS:
No
Supporting protocol for PROFINET CBA:
No
Supporting protocol for PROFINET IO:
No
Supporting protocol for PROFIsafe:
No
Supporting protocol for SafetyBUS p:
No
Supporting protocol for SERCOS:
No
Supporting protocol for SUCONET:
No
Supporting protocol for TCP/IP:
No
System accessory:
No
Type of memory:
FLASH
Voltage type of supply voltage:
AC
Wall mounting/direct mounting:
Yes
Width:
195mm
With display:
No
With optical interface:
No

Alternative Part Number:
377332
Manufacturer:
Omron
Pricing Unit:
Each
Weight:
1.050 kg (each)
Tariff code:
84716070
Generic code:
OBA
GTIN/UPC/EAN:
4548583371224

  •
