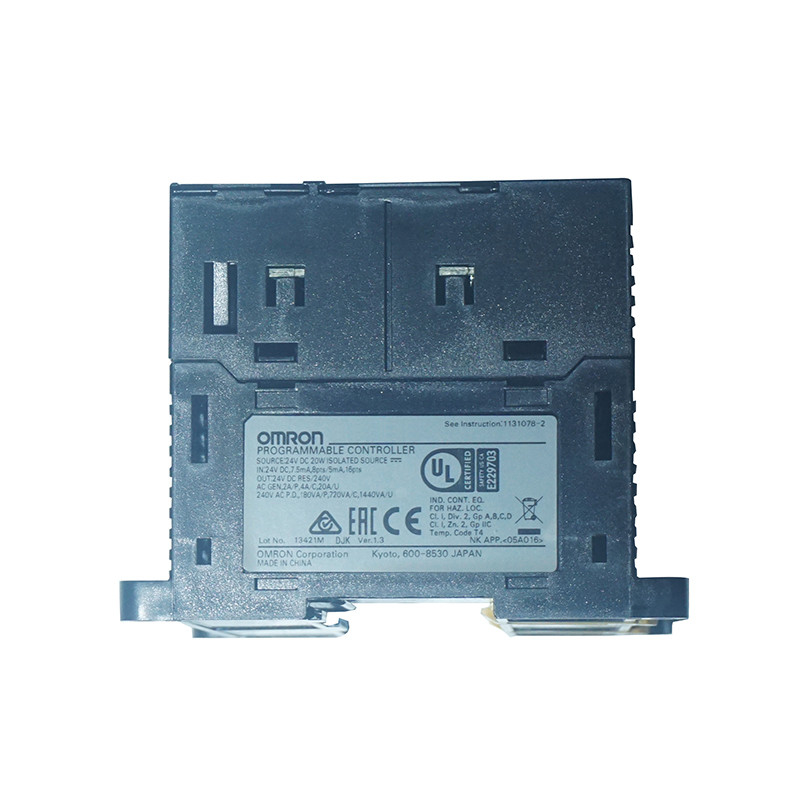

Electronic Components Omron PLC CP1E-E14SDR-A USB 100 - 240V AC

Product details

• Family information

  Micro PLC CP2 series of compact controllers by OMRON offers machine to machine communication with data collection thanks to built-in 2-port Ethernet. Control and machine monitoring is not only easy but also improves productivity and supports predictive maintenance.

  • 2-port Ethernet
  • Compact and reliable in all environmental conditions
  • Reduced wiring cost
  • Improved communication performance
  • 4-axis positioning functions with linear interpolation for more design efficiency
  • Extended temperature range and battery free operation

• Article information

  • Built-in USB-B port







  Specification



  Type	AC power supply models	DC power supply models
  Model	CP1E-@@@S@D@-A CP1E-@@@D@-A	CP1E-@@@S@D@-D CP1E-@@@D@-D
  Enclosure	Mounted in a panel
  Dimensions (H × D × W)	E/N/NA@@-type   CPU Unit with 10 I/O points (CP1E-E10D@–@): 90mm *1 × 85mm *2 × 66 mm CPU Unit with 14 or 20 I/O points (CP1E-@14D@–@/@20D@–@): 90mm *1 × 85mm *2 × 86 mm CPU Unit with 30 I/O points (CP1E-@30D@–@): 90mm *1 × 85mm *2 × 130 mm CPU Unit with 40 I/O points (CP1E-@40D@–@): 90mm *1 × 85mm *2 × 150 mm CPU Unit with 60 I/O points (CP1E-N60D@–@): 90mm *1 × 85mm *2 × 195 mm CPU Unit with 20 I/O points and built-in analog (CP1E-NA20D@–@): 90mm *1 × 85mm *2 × 130 mm E/N/@@S(1)-type CPU Unit with 14 or 20 I/O points (CP1E-@14SD@–@/@20SD@–@): 90mm *1 × 79mm *2 × 86 mm CPU Unit with 30 I/O points (CP1E-@30S(1)D@–@): 90mm *1 × 79mm *2 × 130 mm CPU Unit with 40 I/O points (CP1E-@40S(1)D@–@): 90mm *1 × 79mm *2 × 150 mm CPU Unit with 60 I/O points (CP1E-@60S(1)D@–@): 90mm *1 × 79mm *2 × 195 mm
  Weight	CPU Unit with 10 I/O points (CP1E-E10D@–@): 300g max. CPU Unit with 14 I/O points (CP1E-@14(S)D@–@): 360g max. CPU Unit with 20 I/O points (CP1E-@20(S)D@–@): 370g max.   CPU Unit with 30 I/O points (CP1E-@30(S@)D@–@): 600g max. CPU Unit with 40 I/O points (CP1E-@40(S@)D@–@): 660g max. CPU Unit with 60 I/O points (CP1E-@60(S@)D@–@): 850g max. CPU Unit with 20 I/O points and built-in analog (CP1E-NA20D@–@): 680g max.
  Supply voltage	100 to 240 VAC 50/60 Hz	24 VDC
  Operating voltage range	85 to 264 VAC	20.4 to 26.4 VDC
  Power consumption	15 VA/100 VAC max.   25 VA/240 VAC max. (CP1E-E10D@-A/@14(S)D@-A/@20(S)D@-A)	9 W max. (CP1E-E10D@-D)   13 W max. (CP1E-N14D@-D/N20D@-D)
  	50 VA/100 VAC max.   70 VA/240 VAC max. (CP1E-NA20D@-A/@30(S@)D@-A/@40(S@)D@-A/ N60(S@)D@-A)	20 W max.   (CP1E-NA20D@-D/N30(S@)D@-D/N40(S@)D@-D/ N60(S@)D@-D) *4
  Inrush current	120 VAC, 20 A for 8 ms max. for cold start at room temperature   240 VAC, 40 A for 8 ms max. for cold start at room temperature	24 VDC, 30 A for 20 ms max. for cold start at room temperature
  External power supply *3	Not provided.   (CP1E-E10D@-A/@14(S)D@-A/@20(S)D@-A) 24 VDC, 300 mA (CP1E-NA20D@-A/@30D@-A/@40D@-A/@60D@-A/ @30SDR-A/@40SDR-A/@60SDR-A)	Not provided
  Insulation resistance	20 MΩ min. (at 500 VDC) between the external AC terminals and GR terminals	Except between DC primary current and DC secondary current
  Dielectric strength	2,300 VAC 50/60Hz for 1 min between AC external and GR terminals Leakage current: 5 mA max.	Except between DC primary current and DC secondary current
  Ambient operating temperature	0 to 55 °C
  Ambient humidity	10% to 90%
  Atmosphere	No corrosive gas.
  Ambient storage temperature	-20 to 75 °C (excluding battery)
  Altitude	2,000 m max.
  Pollution degree	2 or less: Meets IEC 61010-2-201.
  Noise resistance	2 kV on power supply line (Conforms to IEC61000-4-4.)
  Overvoltage category	Category II: Meets IEC 61010-2-201.
  EMC Immunity Level	Zone B
  Vibration resistance	Conforms to JIS 60068-2-6.   5 to 8.4 Hz with 3.5-mm amplitude, 8.4 to 150 Hz Acceleration of 9.8 m/s2 for 100 min in X, Y, and Z directions (10 sweeps of 10 min each = 100 min total)
  Shock resistance	Conforms to JIS 60068-2-27.   147 m/s2, 3 times in X, Y, and Z directions
  Terminal block	Fixed (not removable)
  Terminal screw size	M3
  Applicable standards	Conforms to EC Directive
  Grounding method	Ground to 100 Ω or less.
