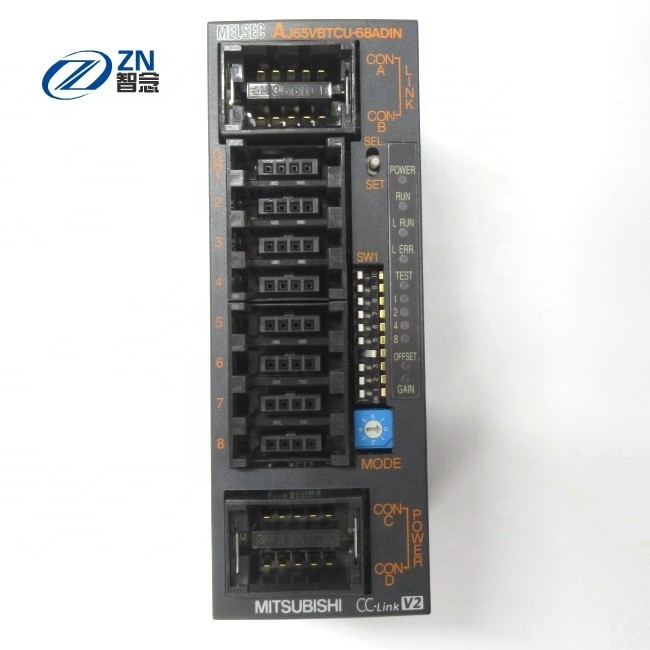

Black Mitsubishi PLC CC Link Module Conversion Unit AJ65VBTCU-68ADIN
  • Black Mitsubishi PLC CC Link Module Conversion Unit AJ65VBTCU-68ADIN
  • Black Mitsubishi PLC CC Link Module Conversion Unit AJ65VBTCU-68ADIN
  • Black Mitsubishi PLC CC Link Module Conversion Unit AJ65VBTCU-68ADIN

Black Mitsubishi PLC CC Link Module Conversion Unit AJ65VBTCU-68ADIN

Place of Origin China/Japan
Brand Name Mitsubishi
Model Number AJ65VBTCU-68ADIN
Product Details
Condition:
100% Original
Warranty:
1 Year
Package:
Carton Box
Shipping Term:
TNT DHL FEDEX EMS UPS
Quality:
100%Brand
Payment Term:
T.T WESTUNION
Color:
Black
Delivery Time:
Within 3 Working Days
Price:
Competitive
Port:
Guangzhou, Shenzhen, Setectable
High Light:

Black Mitsubishi PLC CC Link Module

,

Conversion Mitsubishi PLC CC Link Module

,

AJ65VBTCU-68ADIN

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$50-$500
Packaging Details
Carton packaging
Payment Terms
T/T, western union
Supply Ability
10pc/per week
Product Description

Mitsubishi CC-Link Module Analog To Digital V2 A/D Conversion Unit AJ65VBTCU-68ADIN PLC

Product description of Mitsubishi A/D Converter Unit AJ65VBTCU-68ADIN

Station type Remote device station
Number of stations occupied Ver. 1 mode, 3 stations Ver. 2 mode, 1 station
CC-Link version Ver.1, Ver.2
External dimensions 115(H)×41(W)×67(D)[mm]
Mass 0.17kg





Original & New AJ65VBTCU-68ADIN PLC Mitsubishi Price Made In Japan

Features of Mitsubishi A/D Converter Unit AJ65VBTCU-68ADIN

* Compatible with Ver. 2
On the conventional model, three stations occupied eight channels, whereas a single station occupies eight channels on this module.
It can also be used as conventional Ver. 1 depending on the setting of the rotary switch.
* Highly accurate
This input module performs A/D conversion with an accuracy of ±0.3% to the maximum digital output value when the working ambient temperature is between 0℃ and 55℃, or with an accuracy of ±0.2% to the maximum digital output value when the working ambient temperature is 25±5℃.
* The analog input range can be switched for each channel, and input/output conversion characteristics can be changed.
* A high resolution of 1/±4000 is realized.
By switching the input range, the resolution of digital values can be set to either 1/4000 or 1/±4000 (AJ65VBTCU-68ADVN only), providing high-resolution digital values.
* Sampling or averaging can be designated.

Sampling or averaging can be designated for each channel as the conversion method.





Product Specifications

Number of analog input points 4 points (4 channels)
Analog input Voltage DC-10 to + 10V (input resistance value: 1MΩ)
Current DC-20 to + 20mA (input resistance value: 250Ω)
Digital output 0-4000, -2000- + 2000
Input / output characteristics and resolution Input range Digital output value (maximum resolution)
Voltage input -10 to 10V 0-4000 or -2000-2000 (5mV)
0-10V 0-4000 or -2000-2000 (2.5mV)
0-5V 0-4000 or -2000-2000 (1.25mV)
1-5V 0-4000 or -2000-2000 (1.0 mV)
Current input -20 to 20mA 0-4000 or -2000-2000 (20 μA)
0-20mA 0-4000 or -2000-2000 (10μA / 5μA)
4-20mA 0-4000 or -2000-2000 (4 μA)
Accuracy (accuracy with respect to the maximum value of digital output value) Ambient temperature: 0-55 ° C ± 1%
A / D conversion speed 1ms / channel
Absolute maximum input Voltage ± 15V
Current ± 30mA
Insulation method Power supply / communication system and analog input: Photocoupler isolated
channel: Non-insulated
Dielectric strength Between power supply / communication system batch and analog input batch: AC500V 1 minute
Insulation resistance Between power supply / communication system batch and analog input batch: DC500V insulation resistance tester 10MΩ or more
Station type Remote device station (Ver.1 remote device station)
Number of occupied stations 2 stations
Unit power supply Voltage DC24V (DC18-30V)
Current 0.12A (at 24V DC)
External wiring connection method Communication unit, unit power supply unit: 7-point 2-piece terminal block (M3.5 screw)
Input / output unit: 27-point 2-piece terminal block (M3.5 screw)
External dimensions Height (H) 65mm
Width (W) 151.9mm
Depth (D) 63mm
mass 0.35kg

Product Specifications

Number of analog input points 4 points (4 channels)
Analog input Voltage DC-10 to + 10V (input resistance value: 1MΩ)
Current DC0 to 20mA (input resistance value: 250Ω)
Digital output -4096 to +4095
Input / output characteristics and resolution Input range Digital output value (maximum resolution)
Voltage input -10 to 10V -4000-4000 (2.5mV)
User range setting 1
(-10 to 10V)
-4000-4000 (2.5mV)
0-5V 0-4000 (1.25mV)
1-5V 0-4000 (1.0 mV)
User range setting 2
(0 to 5V)
0-4000 (1.0 mV)
Current input 0-20mA 0-4000 (5 μA)
4-20mA 0-4000 (4μA)
User range setting
(0 to 20mA)
0-4000 (4μA)
Accuracy (accuracy with respect to the maximum value of digital output value) Ambient temperature: 25 ± 5 ° C ± 0.2%
Ambient temperature: 0-55 ° C ± 0.4%
A / D conversion speed 1ms / channel
Absolute maximum input Voltage ± 15V
Current ± 30mA
Insulation method Communication system and analog input batch: Photocoupler isolated
Power supply system and analog input batch: Photocoupler isolated
Channel: Non-insulated
Dielectric strength Between power supply / communication system batch and analog input batch: AC500V 1 minute
Station type Remote device station (Ver.1 remote device station)
Number of occupied stations 1 station
Unit power supply Voltage DC24V (DC20.4-26.4V)
Current 0.090A (at 24V DC)
Inrush current 8.5A, 2.3ms or less
External wiring connection method Communication unit, unit power supply unit: 7-point 2-piece terminal block (M3 screw)
Input / output unit: 18-point direct mounting terminal block (M3 screw)
External dimensions Height (H) 50mm
Width (W) 118mm
Depth (D) 40mm
mass 0.20kg

Product Specifications

Number of analog input points 8 points (8 channels)
Analog input Voltage DC0 to 20mA (input resistance value: 250Ω)
Digital output -96 ~ + 4095
Input / output characteristics and resolution Input range Digital output value (maximum resolution)
Current input 0-20mA 0-4000 (5 μA)
4-20mA 0-4000 (4μA)
User range setting
(0 to 20mA)
0-4000 (4μA)
Accuracy (accuracy with respect to the maximum value of digital output value) Ambient temperature: 25 ± 5 ° C ± 0.3%
Ambient temperature: 0-55 ° C ± 0.2%
A / D conversion speed 1ms / channel
Absolute maximum input Current ± 30mA
Insulation method Communication system and analog input batch: Photocoupler isolated
Power supply system and analog input batch: Transformer isolated
channel: Non-insulated
Dielectric strength Between power supply / communication system batch and analog input batch: AC500V 1 minute
Protection grade IP1XB
Station type Remote device station (Ver.1 remote device station or Ver.2 remote device station)
Number of occupied stations Ver.1 Remote device station: 3 stations
Ver.2 Remote device station: 1 station (extended cyclic setting: 4 times)
communication cable Ver.1.10 compatible CC-Link dedicated cable: FANC-110SBH, FA-CBL200PSBH, CS-110
Unit power supply Voltage DC24V (DC20.4-26.4V, ripple rate within 5%)
Current 0.10A (at 24V DC)
Inrush current 4.2A, 1.2ms or less
External wiring connection method Communication unit: One-touch connector for communication (sold separately)
Unit power supply unit: One-touch connector for power supply / FG (sold separately)
Input / output unit: One-touch connector for I / O (sold separately)
External dimensions Height (H) 115mm
Width (W) 41mm
Depth (D) 67mm
mass 0.17kg

Product Specifications

Number of analog input points 8 points (8 channels)
Analog input Voltage DC-10 to + 10V (input resistance value: 1MΩ)
Digital output -4096 to +4095
Input / output characteristics and resolution Input range Digital output value (maximum resolution)
Voltage input -10 to 10V -4000-4000 (2.5mV)
User range setting 1
(-10 to 10V)
-4000-4000 (2.5mV)
0-5V 0-4000 (1.25mV)
1-5V 0-4000 (1.0 mV)
User range setting 2
(0 to 5V)
0-4000 (1.0 mV)
Accuracy (accuracy with respect to the maximum value of digital output value) Ambient temperature: 25 ± 5 ° C ± 0.3%
Ambient temperature: 0-55 ° C ± 0.2%
A / D conversion speed 1ms / channel
Absolute maximum input Voltage ± 15V
Insulation method Communication system and analog input batch: Photocoupler isolated
Power supply system and analog input batch: Transformer isolated
channel: Non-insulated
Dielectric strength Between power supply / communication system batch and analog input batch: AC500V 1 minute
Protection grade IP1XB
Station type Remote device station (Ver.1 remote device station or Ver.2 remote device station)
Number of occupied stations Ver.1 Remote device station: 3 stations
Ver.2 Remote device station: 1 station (extended cyclic setting: 4 times)
communication cable Ver.1.10 compatible CC-Link dedicated cable: FANC-110SBH, FA-CBL200PSBH, CS-110
Unit power supply Voltage DC24V (DC20.4-26.4V, ripple rate within 5%)
Current 0.10A (at 24V DC)
Inrush current 4.2A, 1.2ms or less
External wiring connection method Communication unit: One-touch connector for communication (sold separately)
Unit power supply unit: One-touch connector for power supply / FG (sold separately)
Input / output unit: One-touch connector for I / O (sold separately)
External dimensions Height (H) 115mm
Width (W) 41mm
Depth (D) 67mm
mass 0.17kg





Original & New AJ65VBTCU-68ADIN PLC Mitsubishi Price Made In Japan
