| Place of Origin | China/Japan |
| Brand Name | Mistubishi |

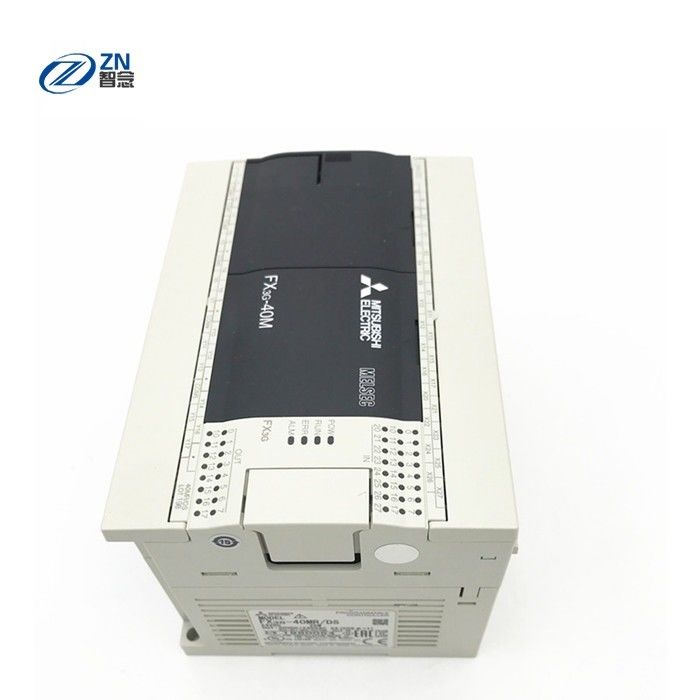

| Model Number | FX3G-40MR/DS, FX3G-24MRES-A |
DC power supply / DC input type
Input: 24 points DC24V Sink / source
output: 16 points Relay
Features:
・ Control scale: Up to 256 points (when CC-Link and AnyWire remote I / O are configured)
・ Terminal block type standard machine that can add input / output
・ System upgrades such as analog and communication are possible
・ Function expansion board 2 Units can be connected (only one unit can be connected for 14-point and 24-point types)
-Easy measurement of input pulse width and cycle with high accuracy of 10 μs (high-speed pulse width / pulse cycle measurement function)
-Sequence control to capture short signals Easy setting (pulse catch function)
| Operation control method | Stored program Iterative operation method, with interrupt instruction | ||
| Input / output control method | With batch processing method (when executing END instruction), input / output refresh instruction, and pulse catch function | ||
| Programming language | Relay symbol method + step ladder method (SFC expression possible) | ||
| Program memory | Maximum memory capacity | 32000 steps 32000 steps including comments and file registers | |
| Built-in memory capacity / format | 32000 step EEPROM (no memory backup required) | ||
| Memory cassette (optional) | FX3G-EEPROM-32L (32000 step EEPROM) | ||
| Write function during RUN | Yes (The program can be changed during the sequencer RUN) | ||
| Protection function | With keyword protection function / customer keyword function | ||
| Real-time clock | Clock function | Built-in 1980-2079 (with leap year correction) 2-digit / 4-digit year switchable, monthly difference ± 45 seconds (25 ° C) * Notes on clock function The current time of the built-in clock is a large-capacity capacitor (built-in). It is backed up by. The large-capacity capacitor (built-in) is fully charged after 30 minutes of energization time, and maintains the current value for 10 days. It can also be battery-powered with the optional battery. | |
| Type of instruction | Basic command | ・ Sequence instruction: 29 ・ Step ladder instruction: 2 | |
| Applied instructions | Application instructions: 121 types | ||
| Computation processing speed | Basic command | Standard mode: 0.21 μs / instruction (when the program capacity is set to 16000 steps or less) Extended mode: 0.42 μs / instruction (when the program capacity is set to 1601 steps or more) | |
| Applied instructions | Standard mode: 0.5 μs to several 100 μs / instruction (when the program capacity is set to 16000 steps or less) Extended mode: 1.2 μs to several 100 μs / instruction (when the program capacity is set to 16001 steps or more) | ||
| Number of input / output points | Number of input points | (1) 128 points or less (when used in combination with expansion) (1) + (2) Total: 128 points or less | |
| Number of output points | (2) 128 points or less (when used in combination with expansion) (1) + (2) Total: 128 points or less | ||
| Remote I / O score | CC-Link | (3) 128 points or less * The total of remote I / O of CC-Link, AnyWire Bitty, AnyWire ASLINK is 128 points or less. | |
| AnyWire Bitty | (3) 128 points or less * The total of remote I / O of CC-Link, AnyWire Bitty, AnyWire ASLINK is 128 points or less. | ||
| AnyWireASLINK | (3) 128 points or less * The total of remote I / O of CC-Link, AnyWire Bitty, AnyWire ASLINK is 128 points or less. | ||
| Total score | (1) + (2) + (3) Total: 256 points or less (when used in combination with expansion) | ||
