Mitsubishi PLC Module
>
|
| Place of Origin | China/Japan |
| Brand Name | Mistubishi |

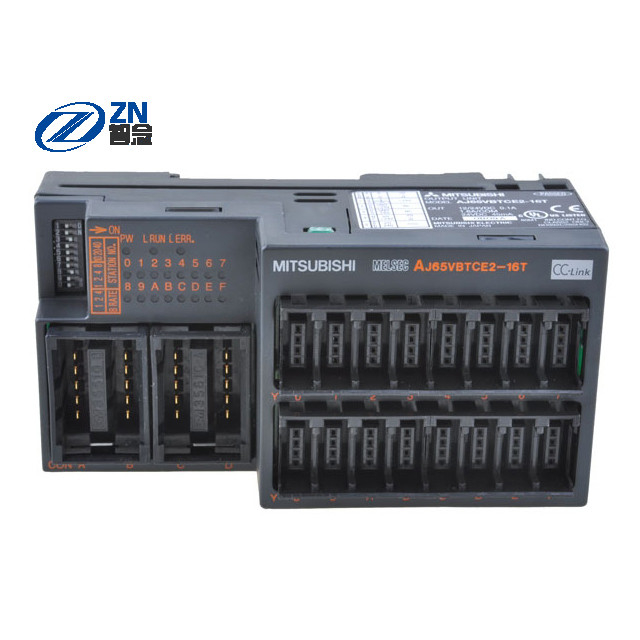

| Model Number | AJ65VBTCE2-16T, AJ65VBTCE2-16T |
16 output points: 12/24 V DC (0.1 A), transistor output (sink type), 2-wire type
Output points: 16 points.
Voltage: DC12/24V.
OFF leakage current: 0.1mA.
Output type: transistor output (type sink).
Response time: 2ms.
8 points / a common end.
20 point terminal station.
With heat protection.
With short circuit protection.
With the surge absorber.
| Number of Outputs | 16 | Representative Standard | CE / UL |
|---|---|---|---|
| Leakage current when OFF(mA) | 0.1 mA or Less | Output answer time | 2ms |
| Terminal shape | Screw/ Two-Piece Terminal Block | Maximum Switching Voltage(V) | DC12/24V |
| Thermal Protection/ Short Circuit Protection/ Protective Function/ Fuse/ Surge Protector | NA | Type of unit | Transistor Output (Sink) |
| External connection | 2-Wire | I/O unit power supply current | 80 mA or Less |
| Rated load current (rated opening/closing current) | 0.5A | - | - |
| Item | Description | |
| Number of output points | 16 points | |
| Isolation method | Photocoupler | |
| Rated load voltage | 12/24 VDC (Ripple ration: within 5%) | |
| Operating load voltage range | 10.2 to 26.4 VDC | |
| Max load current | 0.1A/point, 1.6A/ common | |
| Max inrush current | 0.7A, 10ms or less | |
| Leakage current at OFF | 0.1mA or lower | |
| Max voltage drop at ON | 0.1VDC or lower(TYP) 0.1A 0.2VDC or lower(MAX) 0.1A | |
| Output type | Sink type | |
| Protection function | Overload protection, overvoltage protection, overheat protection | |
| Response time | OFF to ON | 1ms or less |
| ON to OFF | 1ms or less (resistive load) | |
| External power supply for output part | Voltage | 12/24VDC (ripple ratio: within 5%) (allowable voltage range 10.2 to 26.4VDC) |
| Current | 10mA or lower(at 24VDC and all points ON), excluding external load current | |
| Surge suppressor | Zener diode | |
