2 MS DIN Rail PLC Programmable Logic Controller 24V DC NX1P2-1040DT
  • 2 MS DIN Rail PLC Programmable Logic Controller 24V DC NX1P2-1040DT
  • 2 MS DIN Rail PLC Programmable Logic Controller 24V DC NX1P2-1040DT

2 MS DIN Rail PLC Programmable Logic Controller 24V DC NX1P2-1040DT

Place of Origin China/Japan
Brand Name Omron
Model Number NX1P2-1040DT
Product Details
Brand:
Omron
Condition:
100% New
Estimate Lead Time:
2-3 Working Days
MOQ:
1/PC
Place Of Origin:
China
Warranty:
12 Months
High Light:

24V DIN Rail PLC

,

2 MS DIN Rail PLC

,

NX1P2-1040DT

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$50-500
Packaging Details
Carton packaging
Delivery Time
3-5 working days
Payment Terms
T/T, western union
Supply Ability
10pc/per week
Product Description

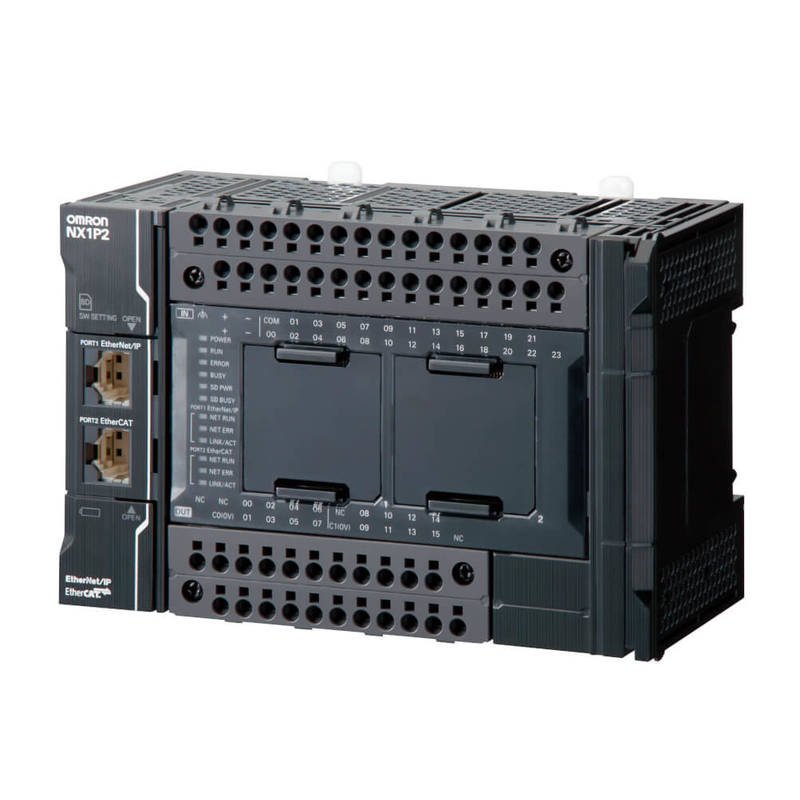

NX1P2-1040DT Programmable Logic Controller (PLC) DIN Rail 24VDC from Omron Automation and Safety





Specifications



Primary task cycle time 2 ms
Program memory 1.5 MB
Variables memory 2 MB
Max. number of synchronous axes 2
Max. number of PTP axes 4
Number of digital inputs 24
Input type PNP/NPN
Number of digital outputs 16
Output type NPN
Number of serial option boards 2
Max. number of expansion units 8
Max. number of remote I/O nodes 16
Communication port(s) EtherCAT Master, EtherNet/IP, Ethernet TCP/IP
Number of Ethernet ports 2
Number of USB ports 0
Communication option(s) Serial RS-232C, Serial RS-422, Serial RS-485
Real-time clock
Supply voltage DC 20.4-28.8 V
Height 100 mm
Width 148 mm
Depth 71 mm
Weight 650 g

Accessories

  GX-JC03 3-port EtherCAT Junction module, 24 VDC power supply
  GX-JC06 6-port EtherCAT Junction module, 24 VDC power supply

GX-JC06-H 6-port EtherCAT Junction module, 24 VDC power supply, with node switches

HMC-SD492 4 GB SD memory card
  NX-PF0730 NX I/O power feed unit, 5-24 V DC input, 8 terminals, 10A, screwless push-in connector, 12mm wide
  NX1W-ADB21 Sysmac NX1P Analog I/O screwless option board, 2 x analog inputs 0 to 10 V, resolution 1/4000 or 0 to 20 mA, resolution 1:2000
  NX1W-CIF01 Sysmac NX1P RS-232C screwless (15 m max.) serial communication option board
  NX1W-CIF11 Sysmac NX1P RS422/485 screwless (50 m max.) serial communication option board
  NX1W-CIF12 Sysmac NX1P RS422/485 screwless (isolated 500 m max.) serial communication option board
  NX1W-DAB21V Sysmac NX1P Analog I/O screwless option board, 2 x analog outputs 0 to 10 V, resolution 1:4000
  NX1W-MAB221 Sysmac NX1P Analog I/O screwless option board, 2 x analog inputs 0 to 10 V, resolution 1:4000 or 0 to 20 mA, resolution 1:2000, 2 x analog outputs 0 to 10 V, resolution 1:4000
  SYSMAC-SE201L Sysmac Studio license only, single user (requires SYSMAC-SE200D download or installation DVD, available separately)
  W4S1-05D 5-port enhanced Ethernet switch
  XS6W-6LSZH8SS100CM-Y Ethernet patch cable, F/UTP, Cat.6A, LSZH (Yellow), 1 m
  XS6W-6LSZH8SS200CM-B Ethernet patch cable, F/UTP, Cat.6A, LSZH (Blue), 2 m
  XS6W-6LSZH8SS200CM-Y Ethernet patch cable, F/UTP, Cat.6A, LSZH (Yellow), 2 m
  XS6W-6LSZH8SS20CM-Y Ethernet patch cable, F/UTP, Cat.6A, LSZH (Yellow), 0.2 m
  XS6W-6LSZH8SS500CM-Y Ethernet patch cable, F/UTP, Cat.6A, LSZH (Yellow), 5 m
  XS6W-6LSZH8SS50CM-Y Ethernet patch cable, F/UTP, Cat.6A, LSZH (Yellow), 0.5 m

Spare parts

  CJ1W-BAT01 Battery for CJ1M PLCs

NX-END02 Spare part - End plate for NX1P controller
