Omron PLC NX
>
|
| Place of Origin | China/Japan |
| Brand Name | Omron |
| Model Number | NX1P2-9024DT |

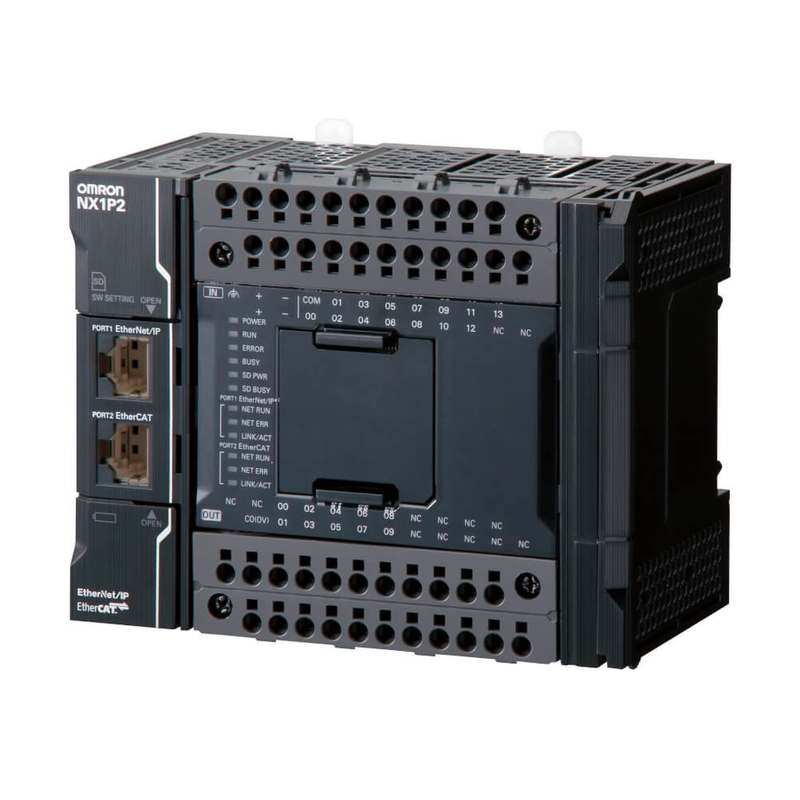

Omron PLC Module NX1P2-9024DT Machine Automation Controller One Year Warranty
| Primary task cycle time | 2 ms |
| Program memory | 1.5 MB |
| Variables memory | 2 MB |
| Max. number of synchronous axes | 0 |
| Max. number of PTP axes | 4 |
| Number of digital inputs | 14 |
| Input type | PNP/NPN |
| Number of digital outputs | 10 |
| Output type | NPN |
| Number of serial option boards | 1 |
| Max. number of expansion units | 8 |
| Max. number of remote I/O nodes | 16 |
| Communication port(s) | EtherCAT Master, EtherNet/IP, Ethernet TCP/IP |
| Number of Ethernet ports | 2 |
| Number of USB ports | 0 |
| Communication option(s) | Serial RS-232C, Serial RS-422, Serial RS-485 |
| Real-time clock | |
| Supply voltage DC | 20.4-28.8 V |
| Height | 100 mm |
| Width | 124 mm |
| Depth | 71 mm |
| Weight | 590 g |
| GX-JC03 | 3-port EtherCAT Junction module, 24 VDC power supply |
| GX-JC06 | 6-port EtherCAT Junction module, 24 VDC power supply |
| GX-JC06-H | 6-port EtherCAT Junction module, 24 VDC power supply, with node switches |
| HMC-SD492 | 4 GB SD memory card |
| NX-PF0730 | NX I/O power feed unit, 5-24 V DC input, 8 terminals, 10A, screwless push-in connector, 12mm wide |
| NX1W-ADB21 | Sysmac NX1P Analog I/O screwless option board, 2 x analog inputs 0 to 10 V, resolution 1/4000 or 0 to 20 mA, resolution 1:2000 |
| NX1W-CIF01 | Sysmac NX1P RS-232C screwless (15 m max.) serial communication option board |
| NX1W-CIF11 | Sysmac NX1P RS422/485 screwless (50 m max.) serial communication option board |
| NX1W-CIF12 | Sysmac NX1P RS422/485 screwless (isolated 500 m max.) serial communication option board |
| NX1W-DAB21V | Sysmac NX1P Analog I/O screwless option board, 2 x analog outputs 0 to 10 V, resolution 1:4000 |
| NX1W-MAB221 | Sysmac NX1P Analog I/O screwless option board, 2 x analog inputs 0 to 10 V, resolution 1:4000 or 0 to 20 mA, resolution 1:2000, 2 x analog outputs 0 to 10 V, resolution 1:4000 |
| SYSMAC-SE201L | Sysmac Studio license only, single user (requires SYSMAC-SE200D download or installation DVD, available separately) |
| W4S1-05D | 5-port enhanced Ethernet switch |
| XS6W-6LSZH8SS100CM-Y | Ethernet patch cable, F/UTP, Cat.6A, LSZH (Yellow), 1 m |
| XS6W-6LSZH8SS200CM-B | Ethernet patch cable, F/UTP, Cat.6A, LSZH (Blue), 2 m |
| XS6W-6LSZH8SS200CM-Y | Ethernet patch cable, F/UTP, Cat.6A, LSZH (Yellow), 2 m |
| XS6W-6LSZH8SS20CM-Y | Ethernet patch cable, F/UTP, Cat.6A, LSZH (Yellow), 0.2 m |
| XS6W-6LSZH8SS500CM-Y | Ethernet patch cable, F/UTP, Cat.6A, LSZH (Yellow), 5 m |
| XS6W-6LSZH8SS50CM-Y | Ethernet patch cable, F/UTP, Cat.6A, LSZH (Yellow), 0.5 m |
| CJ1W-BAT01 | Battery for CJ1M PLCs |
| NX-END02 | Spare part - End plate for NX1P controller |
