| Place of Origin | China/Japan |
| Brand Name | Omron |
| Model Number | NX102-9000 |

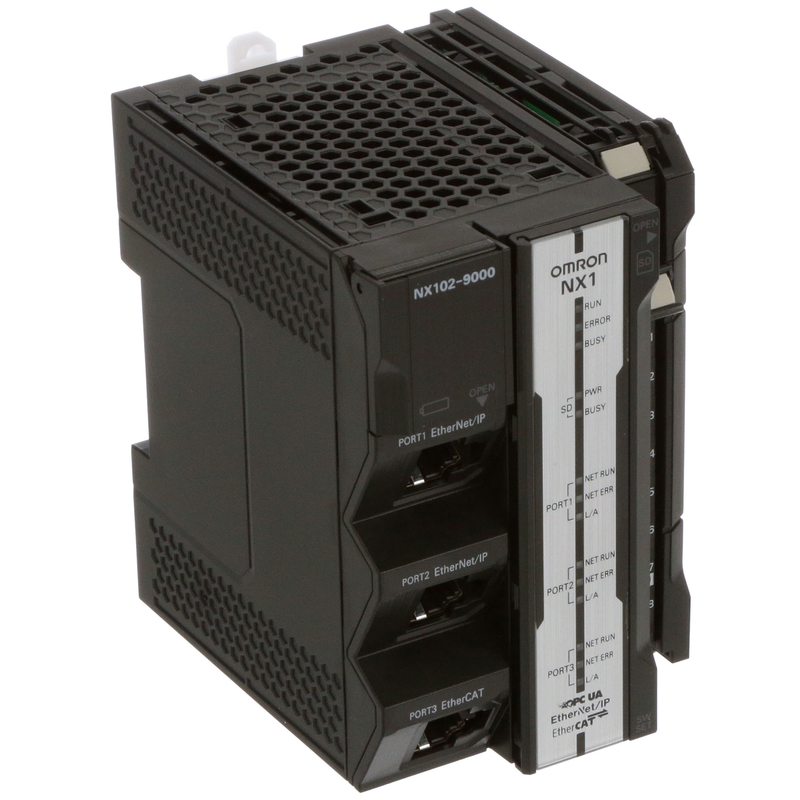

Omron NX102-9000 Machine Automation (PLC) CPU Unit One Year Warranty
Overview
Powerful functionality in a compact design
Features:
Fast and accurate control by synchronizing all machine devices with the PLC and Motion Engines
Three built-in industrial Ethernet ports
OPC UA server functionality
Up to 12 axes of control via EtherCAT
Up to 32 local NX I/O Units
DC power supply without battery backup
Fully conforms to IEC 61131-3 standard programming
PLCopen Function Blocks for Motion Control allow users to create complex programs quickly and easily
Direct connection to a database, with no special unit, software, or middleware required
| Controller functionality | OPC-UA, Position control, Sequence control |
| Max. number of synchronous axes | 0 |
| Max. number of PTP axes | 4 |
| Max. number of axes (incl. virtual) | 4 |
| Primary task cycle time | 1 ms |
| Program memory | 5 MB |
| Variables memory | 33.5 MB |
| Communication port(s) | EtherCAT Master, EtherNet/IP, Ethernet TCP/IP, USB |
| Communication option(s) | Serial RS-232C, Serial RS-422, Serial RS-485 |
| Max. number of remote I/O nodes | 64 |
| I/O system | NX I/O Bus |
| Max. number of expansion units | 32 |
| Height | 100 mm |
| Width | 66 mm |
| Depth | 100 mm |
| Weight | 0 g |
| GX-JC03 | 3-port EtherCAT Junction module, 24 VDC power supply |
| GX-JC06 | 6-port EtherCAT Junction module, 24 VDC power supply |
| GX-JC06-H | 6-port EtherCAT Junction module, 24 VDC power supply, with node switches |
| HMC-SD492 | 4 GB SD memory card |
| W4S1-05D | 5-port enhanced Ethernet switch |
| CJ1W-BAT01 | Battery for CJ1M PLCs |
| NX-END02 | Spare part - End plate for NX1P controller |
