Mitsubishi PLC Module
>
|
|
| Place of Origin | China/Japan |
| Brand Name | MITSUBISHI |
| Certification | CE |
| Model Number | FX5U-32MT/ES |

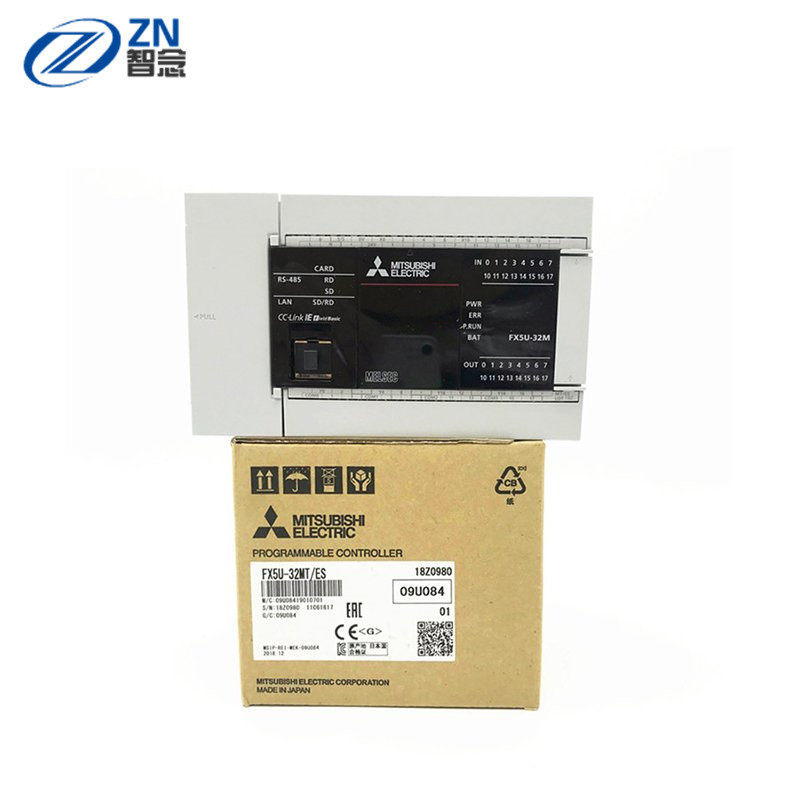

FX5U-32MT/ES Mitsubishi Electric CPU 16 Transistor Outputs
| Type | FX5U |
|---|---|
| Power Supply (V) | 100-240 |
| Current Type | AC |
| Program Memory | 64K STEPS |
| Program Memory Unit | FLASH |
| Integrated Digital Inputs | 16 |
| Integrated Digital Outputs | 16 |
| Integrated Analogue Inputs | 2 |
| Output Type | TRANSISTOR |
| Output Logic | SINK |
| Local I/O Points | 256 |
| Local + Remote I/O Points | 512 |
| Expandable | YES |
| Cycle Time LD (ns) | 34 |
| Cycle Time MOV (ns) | 34 |
| USB | N/A |
| Ethernet Port | 1 |
| RS-232 | N/A |
| RS-422 | N/A |
| RS-485 | 1 |
| Power Consumption (W) | 30 |
| Buffer Battery | OPTION |
| Protection Class | IP10 |
| Min. Ambient Temperature (°C) | 0 |
| Max. Ambient Temperature (°C) | 55 |
| Series | MELSEC IQ-F SERIES |

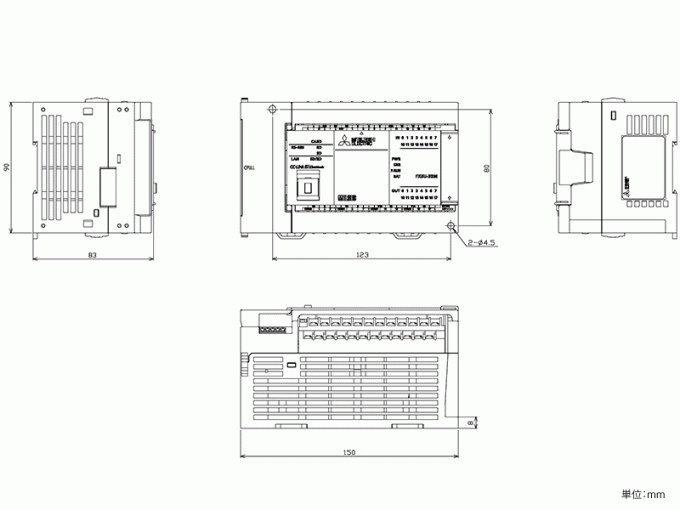

| Width (mm) | 150 |
|---|---|
| Height (mm) | 90 |
| Depth (mm) | 83 |
| Weight (kg) | 0,65 |
| CE | COMPLIANT |
|---|---|
| UL/cUL | COMPLIANT |
| EAC | COMPLIANT |
| Shipping Approvals | ABS,BV,DNV GL,KR,LR,NK,RINA |
