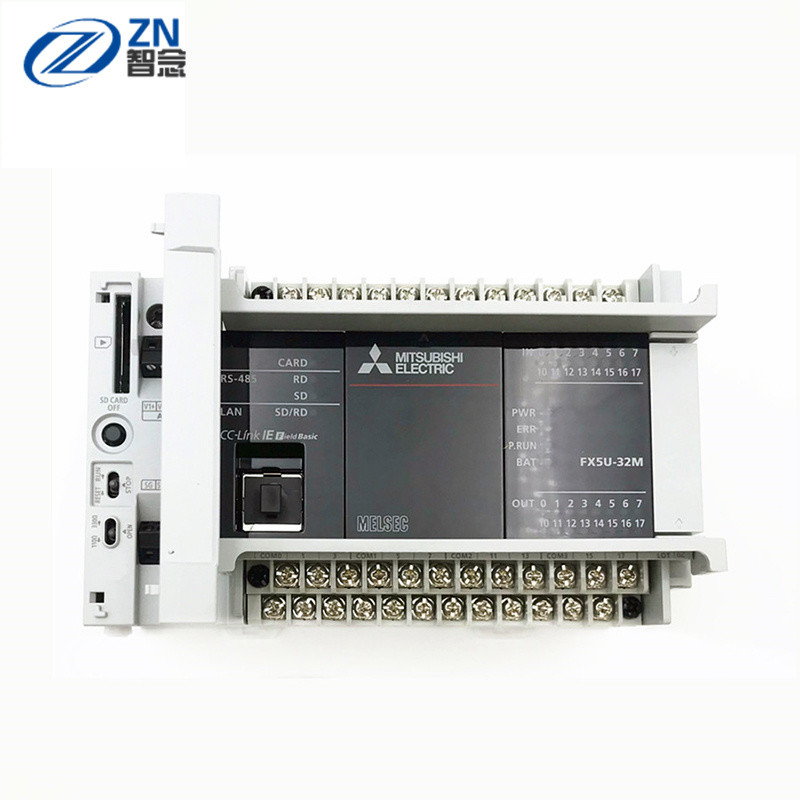

FX5U-64MR/ES Mitsubishi Electric CPU 16 Transistor Outputs

FX5U-32MT/ES Mitsubishi Electric CPU 16 Transistor Outputs

• Product Details

  FX5U - CPU Modules



  The first model in the iQ-F series is the FX5U, offering high performance in a compact, cost effective package.
  The FX5U continues the FX tradition of total flexibility by offering a huge range of new and existing add-on options which further enhance the built-in functions of Ethernet, analogue I/O, data logging, position control, security, communications and networking functions incorporated as standard.
  The FX5U will provide users with the ability to specify more powerful systems but with fewer overall components, saving time and cost.



  FX5U CPU base units with very fast processing time
  Versions with up to 256 inputs and outputs
  Expanded input/output area for networks and complex applications
  Can be upgraded by combining with expansion modules
  Built-in SD card slot
  Run/Stop/Reset switch
  Built-in Ethernet port, RS485
  Displays the input and output states via LEDs
  Integrated real-time clock
  Programming software GX Works3





  Mitsubishi FX5U

  ---

  Specifications

  Attribute	Value
  For Use With	MELSEC IQ-F Series IQ Platform-Compatible PLC
  Manufacturer Series	FX5U
  Number of Inputs	32
  Output Type	Relay, Transistor
  Voltage Category	100 → 240 V ac
  Input Type	Sink, Source
  Number of Outputs	32
  Network Type	Inverter Communication, MELSEC Communication protocol (3C/4C Frames), MELSOFT Connection, Modbus RTUI, N:N Network, Predefined Protocol Support, SLMP (3E Frame), Socket Communication
  Communication Port Type	Ethernet, RS485
  Program Capacity	64 k Steps
  Programming Language Used	FBD, Ladder Diagram, ST
  Mounting Type	Panel Mount
  Programming Interface	RJ45 Connector (Ethernet Communication)
  Memory	120 (Device Memory) kB, 5 (Data Memory) MB, 64 (Program Capacity) k steps
  Minimum Operating Temperature	0°C
  Standards Met	CE, cULus Listed
  Maximum Operating Temperature	+55°C
  Number of Communication Ports	2
  Width	90mm
  Length	220mm
  Depth	83mm
  Dimensions	220 x 90 x 83 mm
