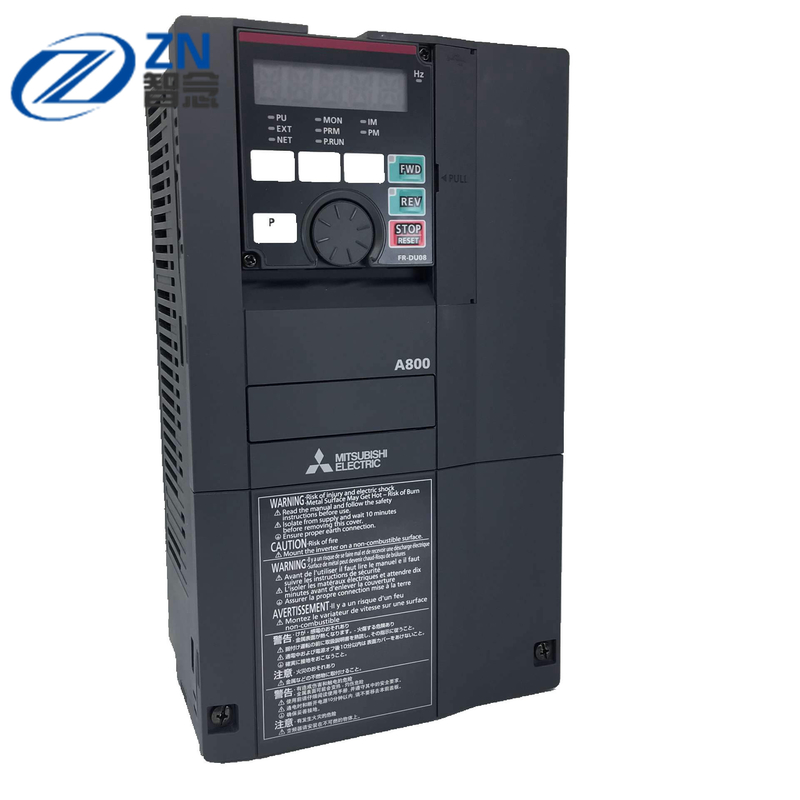

FR-A840-00023-2-60 Mitsubishi FR-F840 Series Inverter
  • FR-A840-00023-2-60 Mitsubishi FR-F840 Series Inverter

FR-A840-00023-2-60 Mitsubishi FR-F840 Series Inverter

Place of Origin Japan
Brand Name Mitsubishi
Model Number FR-A840-00023-2-60
Product Details
Type:
Inverter
Model Number:
FR-A840-00023-2-60
AC Drive Phase:
Three-phase Input
AC Drive Voltage:
380-500Vac, 50/60Hz
Filter Included:
With Filter
High Light:

FR-A840-00023-2-60

,

Mitsubishi FR-F840 Series Inverter

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$10.00 - $500.00/Pieces
Packaging Details
100% Original Package
Delivery Time
3-5 days
Payment Terms
T/T, Western Union
Supply Ability
1000 Piece/Pieces per Quarter
Product Description

FR-A840-00023-2-60 Mitsubishi FR-F840 Series Inverter For Sale



FR-A800 series equipped with the latest high-speed processor. Has better control performance and response speed,
Products to ensure stable and accurate operation in a wide variety of applications.
Enhanced real-time sensorless vector control and vector control functions, can meet the needs of various kinds of machinery and equipment.
For paper, textile, wire, a variety of tape and other products of the extension of the machine processing, linear speed control is essential.
It can respond quickly to the change of production line speed and avoid the phenomenon of uneven winding.
This helps to achieve a stable supply of high quality products.







  • Specification
  • Series FR-A SERIES
    Type FR-A800-E INVERTER
    Minimum Rated Voltage (V) 380
    Min. Permissible Voltage (V) 323
    Maximum Rated Voltage (V) 500
    Max. Permissible Voltage (V) 550
    Current Type AC
    Phases 3
    Rated Output Current SLD (A) 2,3
    Rated Output Current LD (A) 2,1
    Rated Output Current ND (A) 1,5
    Rated Output Current HD (A) 0,8
    Rated Motor Capacity SLD (kW) 0,75
    Rated Motor Capacity LD (kW) 0,75
    Rated Motor Capacity ND (kW) 0,4
    Rated Motor Capacity HD (kW) 0,2
    Control Method PM SENSORLESS VECTOR CONTROL
    Motor Type INDUCTION MOTOR, PM MOTOR
    Brake Chopper ED (%) 100
    Integrated EMC Filter YES
    Safe Torque Off (STO) YES
    Regenerative (4Q) NO
    Integrated DC Choke NO
    Display FR-DU08
    Display Type 5 DIGITS LED (12 SEGMENT)
    PLC Function YES
    Program Memory 6K
    Program Memory Unit STEPS
    Integrated Digital Inputs 12
    Digital Outputs (Transistor) 5
    Digital Outputs (Relay) 2
    Integrated Analogue Inputs 3
    Integrated Analogue Outputs 2
    IO Type of Terminal Block SPRING CLAMP
    Expandable YES
    RS-485 OPTIONAL
    USB 1+1 MINI
    Ethernet Port 1
    Built-In Network CC-LINK IE FIELD NETWORK BASIC
    Leakage Current (mA) 35(DELTA) / 2(STAR)
  •
  • FR-A840-00023-2-60 Mitsubishi FR-F840 Series Inverter 0
