| Place of Origin | China/Japan |
| Brand Name | MITSUBISHI |
| Model Number | RY42NT2P |

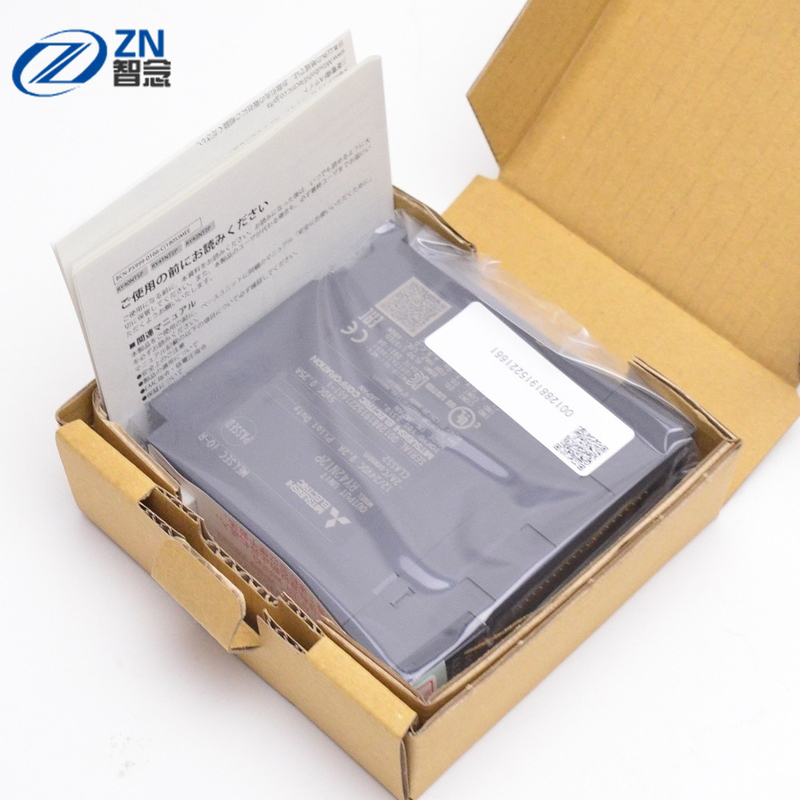

RY42NT2P Mitsubishi Electric DC digital output module
| Series | MELSEC IQ-R SERIES |
|---|---|
| Type | TRANSISTOR OUTPUT (SINK) |
| Power Supply (V) | 12/24 |
| Current Type | DC |
| Occupied I/O Points on PLC | 64 |
| Occupied Stations | N/A |
| Integrated Digital Outputs | 64 |
| Output Type | TRANSISTOR |
| Output Logic | SINK |
| Rated Load Voltage (VAC) | N/A |
| Rated Load Voltage (VDC) | 12-24 |
| Wiring | CONNECTOR |
| Int. Current Consumption (A) | 0,25 |
| Width (mm) | 27,8 |
|---|---|
| Height (mm) | 98 (106) |
| Depth (mm) | 131 |
| Weight (kg) | 0,13 |
| CE | COMPLIANT |
|---|---|
| UL/cUL | COMPLIANT |
| EAC | COMPLIANT |
| Shipping Approvals | ABS,BV,DNV GL,LR,NK,RINA |
