| Place of Origin | China/Japan |
| Brand Name | MITSUBISHI |
| Model Number | RY42NT2P |

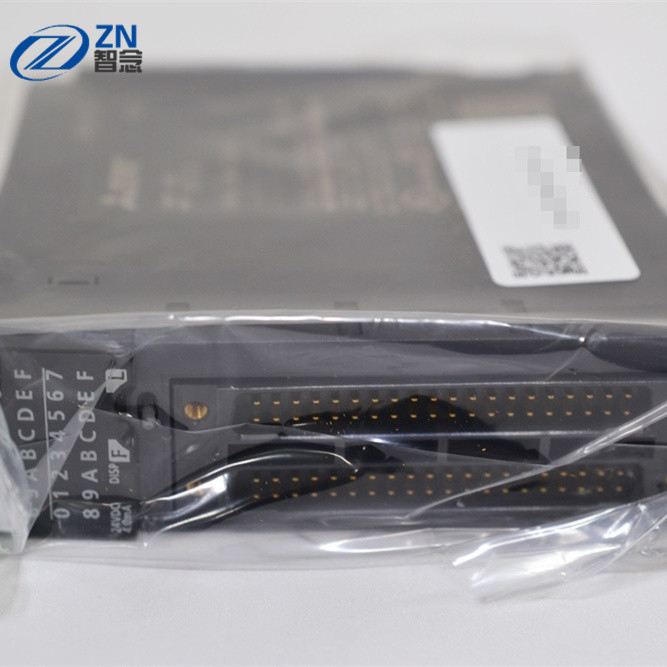

RY42NT2P Mitsubishi DC Digital Output Module Programmable Logic Controller
| Number Of Inputs | NA | Input Format | - |
|---|---|---|---|
| Rated Input Voltage(V) | - | Input answer time | - |
| Number of Outputs | - | Output Format | Transistor / sync output |
| Rated load voltage(V) | DC12 to 24 | Protection function | - |
| Connection Terminal | - | Representative Standard | CE / UL / CUL |
| Features | - | Output answer time | - |
External appearance of RX40C7
RX40C7 dimensional drawing (unit: mm)
External appearance of RX10
Dimensional drawing of RX10 (Unit: mm)
| Items | AV Input | DC input | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| RX28 | RX10 | RX10-TS | RX40C7 | RX40C7-TS | RX41C4 | RX41C4-TS | RX42C4 | RX70C4 | RX71C4 | RX72C4 | |
| Number Of Points [Points] | 8 | 16 | 16 | 16 | 16 | 32 | 32 | 64 | 16 | 32 | 64 |
| Rated Input Voltage, Frequency [V] | 100 to 240 V AC (50/60 Hz) | 100 to 240 V AC (50/60 Hz) | 100 to 240 V AC (50/60 Hz) | DC24 | DC24 | DC24 | DC24 | DC24 | DC5/12 | DC5/12 | DC5/12 |
| Rated Input Current [mA] | 16.4 (200 V AC, 60 Hz) 13.7 (200 V AC, 50 Hz) 8.2 (100 V AC, 60 Hz) 6.8 (100 V AC, 50 Hz) |
8.2 (100 V AC, 60 Hz) 6.8 (100 V AC, 50 Hz) |
8.2 (100 V AC, 60 Hz) 6.8 (100 V AC, 50 Hz) |
7.0 TYP. | 7.0 TYP. | 4.0 TYP. | 4.0 TYP. | 4.0 TYP. | 1.7 (5 V DC) 4.8 (12 V DC) |
1.7 (5 V DC) 4.8 (12 V DC) |
1.7 (5 V DC) 4.8 (12 V DC) |
| Response time | 20 ms or less | 20 ms or less | 20 ms or less | 0.1 to 70 ms | 0.1 to 70 ms | 0.1 to 70 ms | 0.1 to 70 ms | 0.1 to 70 ms | 0.1 to 70 ms | 0.1 to 70 ms | 0.1 to 70 ms |
| Common Method [Point/Common] | 8 | 16 | 16 | 16 | 16 | 32 | 32 | 32 | 16 | 32 | 32 |
| Interrupt Function | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| External wiring connection method^*1 | |||||||||||
| 18-Point Screw Terminal Block | ● | ● | — | ● | — | — | — | — | ● | — | — |
| 40-pin connector | — | — | — | — | — | ● | — | ● (× 2) | — | ● | ● (× 2) |
