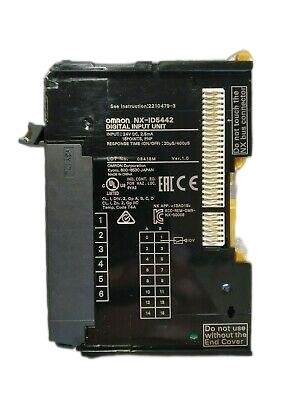

NX-ID5442 16 Digital Inputs Omron Industrial Programmable Logic Controllers
  • NX-ID5442 16 Digital Inputs Omron Industrial Programmable Logic Controllers
  • NX-ID5442 16 Digital Inputs Omron Industrial Programmable Logic Controllers
NX-ID5442 16 Digital Inputs Omron Industrial Programmable Logic Controllers

NX-ID5442 16 Digital Inputs Omron Industrial Programmable Logic Controllers

Place of Origin China/Japan
Brand Name Omron
Model Number NX-ID5442
Product Details
Service:
One-stop Service
Type:
PLC, Eletronic Component
Quality:
100% Original Quality
Application:
As Your Demand, Indusrial Ect, Industrial Etc, Automation
Warrenty:
12 Months
Delivery Detail:
3-5 Working Days After Payment
Port:
Guangdong Shenzhen Dongguan
Highlight:

16 Digital Inputs Omron PLC

,

IP20 Omron Programmable Logic Controllers

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$50-500
Packaging Details
Carton packaging
Payment Terms
T/T, western union
Supply Ability
10pc/per week
Product Description

NX-ID5442 16 Digital Inputs Omron Industrial Programmable Logic Controllers

NX-series digital input unit for general purpose use to High-speed synchronous control.16 Digital Inputs, Standard speed, PNP 24 VDC, screwless push-in connector, 12 mm wide.
  • High-speed I/O refreshing is possible by connecting with the NX-series EtherCAT Coupler
  • I/O refreshing can be synchronized with the control cycle of the Controller(Synchronous refreshing)
  • ON/OFF response time of the high-speed model is 100ns maximum
  • Screwless terminal block is detachable for easy commissioning and maintenance.
  • Screwless clamp terminal block and connector types are significantly reduces wiring work
  • Up to 16 digital inputs in a space-saving 12 mm width. (Connector Types 30 mm width)
NX-ID5442 16 Digital Inputs Omron Industrial Programmable Logic Controllers 0



Electrical and Mechanical Specifications

I/O system NX I/O Bus
Type of module Digital I/O
Number of digital inputs 16
Digital input type PNP
Permitted voltage at input 15-28.8 V
OFF/ON delay 0.02-0.4 ms
Number of digital outputs 0
Digital output type None
Short-circuit protected outputs x
Connection method 1-wire
Signal processing Free running, Standard speed, Synchronous
IO link master x
I/O connection type Push-in
Number of I/O connectors 1
Detachable I/O connector √
Suitable for safety functions x
SIL according to IEC 61508 None
Communication port(s) None
Number of IOV (V+) terminals 0
Number of IOG (V-) terminals 0
Number of COM terminals 0
Degree of protection (IP) IP20
Height 100 mm
Width 12 mm
Depth 71 mm
Weight 65 g





NX1P2 Specifications 31

Circult layout

NX-ID5442 16 Digital Inputs Omron Industrial Programmable Logic Controllers 2
Terminal connection dlagram
NX-ID5442 16 Digital Inputs Omron Industrial Programmable Logic Controllers 3
