Omron PLC NX
>
|
| Place of Origin | China/Japan |
| Brand Name | Omron |

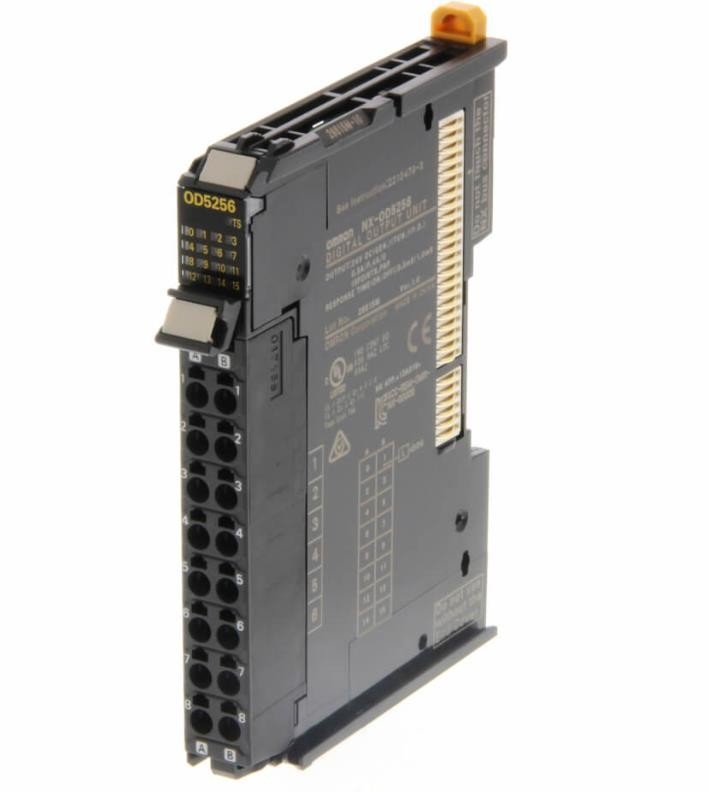

| Model Number | NX-OD5256 |
Specifications
| I/O system | NX I/O Bus |
| Type of module | Digital I/O |
| Number of digital inputs | 0 |
| Digital input type | None |
| OFF/ON delay | 0.5-1.0 ms |
| Number of digital outputs | 16 |
| Digital output type | PNP |
| Permitted voltage at output | 15.0-28.8 V |
| Output current | 0.5 A |
| Short-circuit protected outputs | √ |
| Connection method | 1-wire |
| Signal processing | Free running, Standard speed, Synchronous |
| IO link master | x |
| I/O connection type | Push-in |
| Number of I/O connectors | 1 |
| Detachable I/O connector | √ |
| Suitable for safety functions | x |
| SIL according to IEC 61508 | None |
| Communication port(s) | None |
| Number of IOV (V+) terminals | 0 |
| Number of IOG (V-) terminals | 0 |
| Number of COM terminals | 0 |
| Degree of protection (IP) | IP20 |
| Height | 100 mm |
| Width | 12 mm |
| Depth | 71 mm |
| Weight | 70 g |
