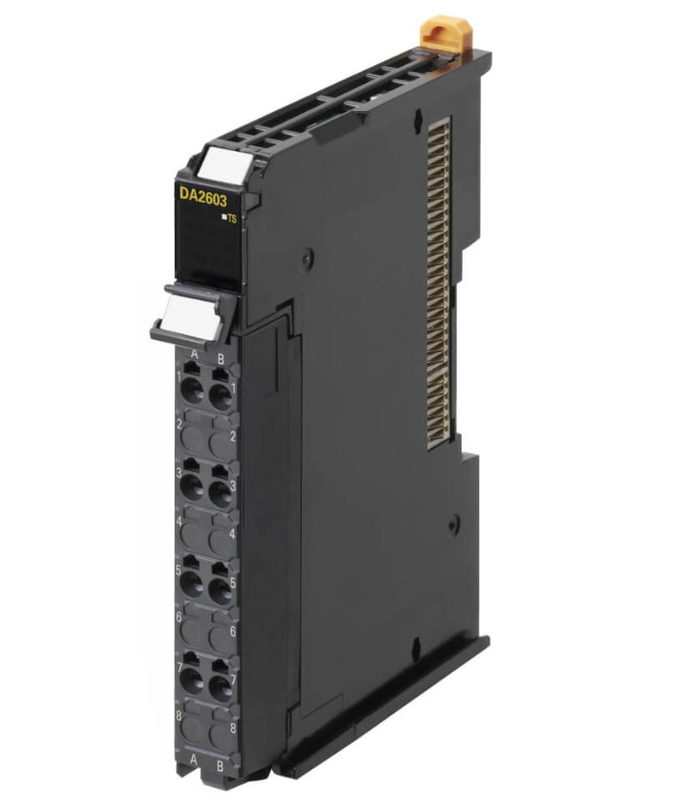

NX-DA2603 Analog Output Omron NX Series Industrial Programmable Logic Controller
  • NX-DA2603 Analog Output Omron NX Series Industrial Programmable Logic Controller
NX-DA2603 Analog Output Omron NX Series Industrial Programmable Logic Controller

NX-DA2603 Analog Output Omron NX Series Industrial Programmable Logic Controller

Place of Origin China/Japan
Brand Name Omron
Model Number NX-DA2603
Product Details
Product Name:
Omron PLC NX-DA2603
Package:
Original Package
Quality:
New And Original
Lead Time:
In Stock
Warrenty:
1 Year
Delivery Detail:
3-5 Working Days After Payment
Shipping Ways:
DHL, EMS, FedEx
High Light:

Analog Output Omron NX PLC

,

12mm Wide Omron PLC NX

Payment & Shipping Terms
Minimum Order Quantity
1/pc
Price
$50-500
Packaging Details
Carton packaging
Payment Terms
T/T, western union
Supply Ability
10pc/per week
Product Description

NX-DA2603 Analog Output Omron NX Series Industrial Programmable Logic Controller

The NX-DA2603 has up to 4 analog outputs per unit. Free-running refresh or synchronous I/O refresh can be selected using the NX-series EtherCAT Connector. The output update cycle is 10μs/channel, and the resolution is 1/30000, which is suitable for high-speed and high-precision control.
  • 2 Analog Outputs
  • -10 to 10 V
  • resolution 1:8000
  • 250 µs/ch
  • screwless push-in connector
  • 12 mm wide



NX-DA2603 Analog Output Omron NX Series Industrial Programmable Logic Controller 0



Specifications

I/O system NX I/O Bus
Type of module Analog I/O
Number of analog inputs 0
Temperature input type None
Linear analog input type None
Input circuit type None
Number of analog outputs 2
Linear analog output type -10 to 10 V
Resolution of the analog outputs 13 Bit
Conversion time 0.5 ms/unit
Signal processing Free running
IO link master x
I/O connection type Push-in
Number of I/O connectors 1
Detachable I/O connector √
Suitable for safety functions x
SIL according to IEC 61508 None
Degree of protection (IP) IP20
Height 100 mm
Width 12 mm
Depth 71 mm
Weight 70 g







NX-DA2603 Analog Output Omron NX Series Industrial Programmable Logic Controller 1



Circult layout

NX-DA2603 Analog Output Omron NX Series Industrial Programmable Logic Controller 2

Terminal connection dlagram

NX-DA2603 Analog Output Omron NX Series Industrial Programmable Logic Controller 3
