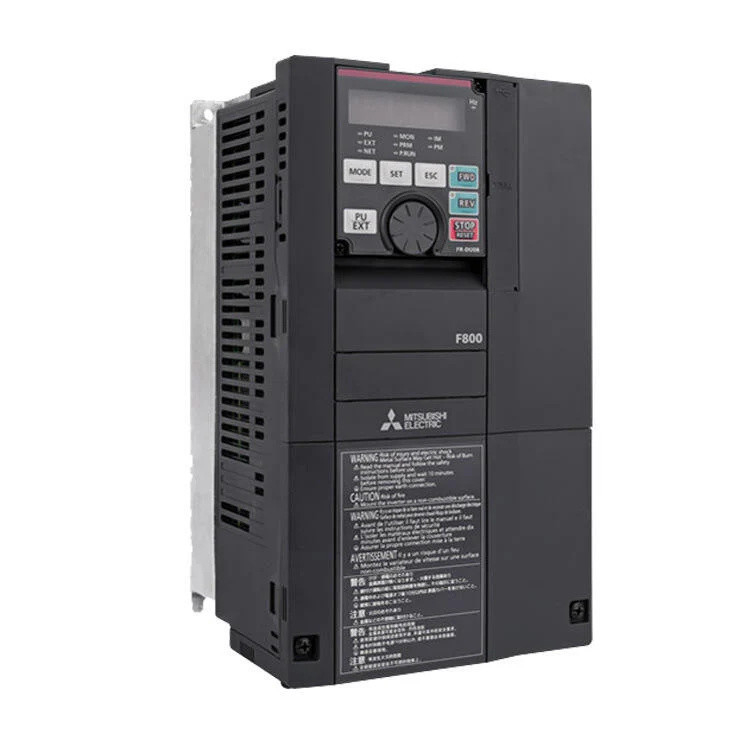

Mitsubishi Electric 3 Phase 400V AC Input / 3 Phase 400V AC Output
FR-F840-00310 15kW 31Amp Version
Built-in programming Keypad & Display,
Built-in EMC Filter (EN 61800-3 2nd environment category 3)
Forward and Reverse control / Soft Start / Sensorless Vector Control
Intelligent Energy Optimisation – Energy Saving Function
Integrated Emergency Stop - 2 channel emergency stop for safe shutdown.
Conforms to EN ISO13849-1/PLd cat. 3, EN 61508 and EN 61800-5-2 SIL2
Input signals for Speed Control: 0-5VDC, 0-10VDC, 4-20mA, 3 x Dig Inputs
Output signals for Alarms & Running conditions: 2 x VF Relay / 0-10V & 0/4-20mA Analog output
Advanced PID Controller, Built-in PLC function, Autotuning Function
CC-Link IE Field, CC-Link, Profibus DP/DPV1, Profinet/Ether- Net IP/EtherCat (to be released soon) and SSCNETIII/H as well as DeviceNet™ and LONWORKS communication options are available.
RS485 communication (Mitsubishi Electric drive protocol, Modbus-RTU protocol) standard
Dimensions in mm: 300H x 220W x 190D​
