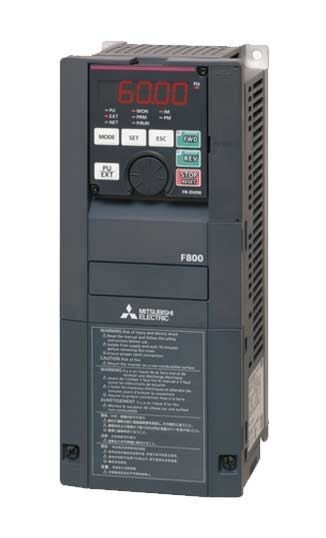

FR-F840-02160-2-60 MITSUBISHI Three Phase 400V Grade Frequency Converter
  • FR-F840-02160-2-60 MITSUBISHI Three Phase 400V Grade Frequency Converter
  • FR-F840-02160-2-60 MITSUBISHI Three Phase 400V Grade Frequency Converter

FR-F840-02160-2-60 MITSUBISHI Three Phase 400V Grade Frequency Converter

Place of Origin China/Japan
Brand Name Mitsubishi
Model Number FR-F840-02160-2-60
Product Details
New And Original
Lead Time:
3-5 Days
Rated Capacity (kVA):
Rated Current (A):
Manufacturer Series:
Three-phase 380 To 500 V
Applicable Motor Capacity (kW):
110 KW
High Light:



400V Grade Frequency Converter

Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Carton packaging or wooden packaging
Delivery Time
3-5 working days
Payment Terms
T/T, western union, D/P, alibaba
Supply Ability
10pc/per week
Product Description

FR-F840-02160-2-60 MITSUBISHI Three phase 400V grade frequency converter


Product details

Family Information

UL-1 design up to 40HP provides convenient installation without an enclosure
Standard USB port for simple set-up using a memory stick
Real-time clock enables time stamping of trip messages for easy diagnostics
‘Load detection’ system detects broken drive belts and other mechanical problems
Anti-Windmill function avoids costly damage to drive and motor by smoothly controlling loads which are already spinning before start-up



Features and Benefits


• Detection of mechanical faults, unnecessary alarms and line stops can be avoided through the comparison of the present speed/load status against the stores speed/load characteristic which means that out of warnings can be accurately measured and quickly acted upon.
• A reduction of energy costs through the utilisation of Variable Frequency Drives, this is possible because of the intelligent functions such as advanced optimum excitation control and enhanced PID controller. During PID control the drive will activate “sleep mode” which contributes to the energy saving of the VFD.
• Smooth restarts after a spontaneous power failure or outage through the restartable coasting motor speed automatically. Featuring an advanced flying start function, the operation can be smoothly started from a slow speed.
• Auto tuning of IM and PM motors, this can ensure that the motor and drive package are perfectly matched to ensure that they reach the maximum performance.


More Information
Condition New
Weight (kg) 52
Our Part Number FRF84002160260
Height (mm) 620
Width (mm) 465
Depth (mm) 300
Manufacturer Mitsubishi Electric
Manufacturer Range FR
Manufacturer Series F800
Supply Voltage 380-500 VAC
Power Rating (kW) 110
Current (Amps) 216
IP Rating IP00
No. of Phases Three Phase
Duty Variable Torque
Short Description Mitsubishi FR-F840-02160-2-60 F800 Three Phase, 110kW, 216a, 380-500 VAC, Ip00, Variable Torque
